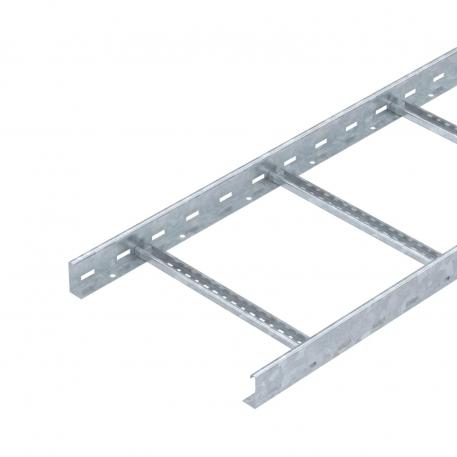

Cable ladder LG 60, 3 m VS FS 3000 | 400 | 1.5 | yes | Steel | Strip galvanized

Cable ladder LG 60, 3 m VS FS

Item no. 6208544 | EAN 4012195064060

Item no. / Types

Length	3000 mm

Width

Rail thickness	1.5 mm

Maintain electrical functions

Material	Steel

Surface	Strip galvanized

Product description

Product description

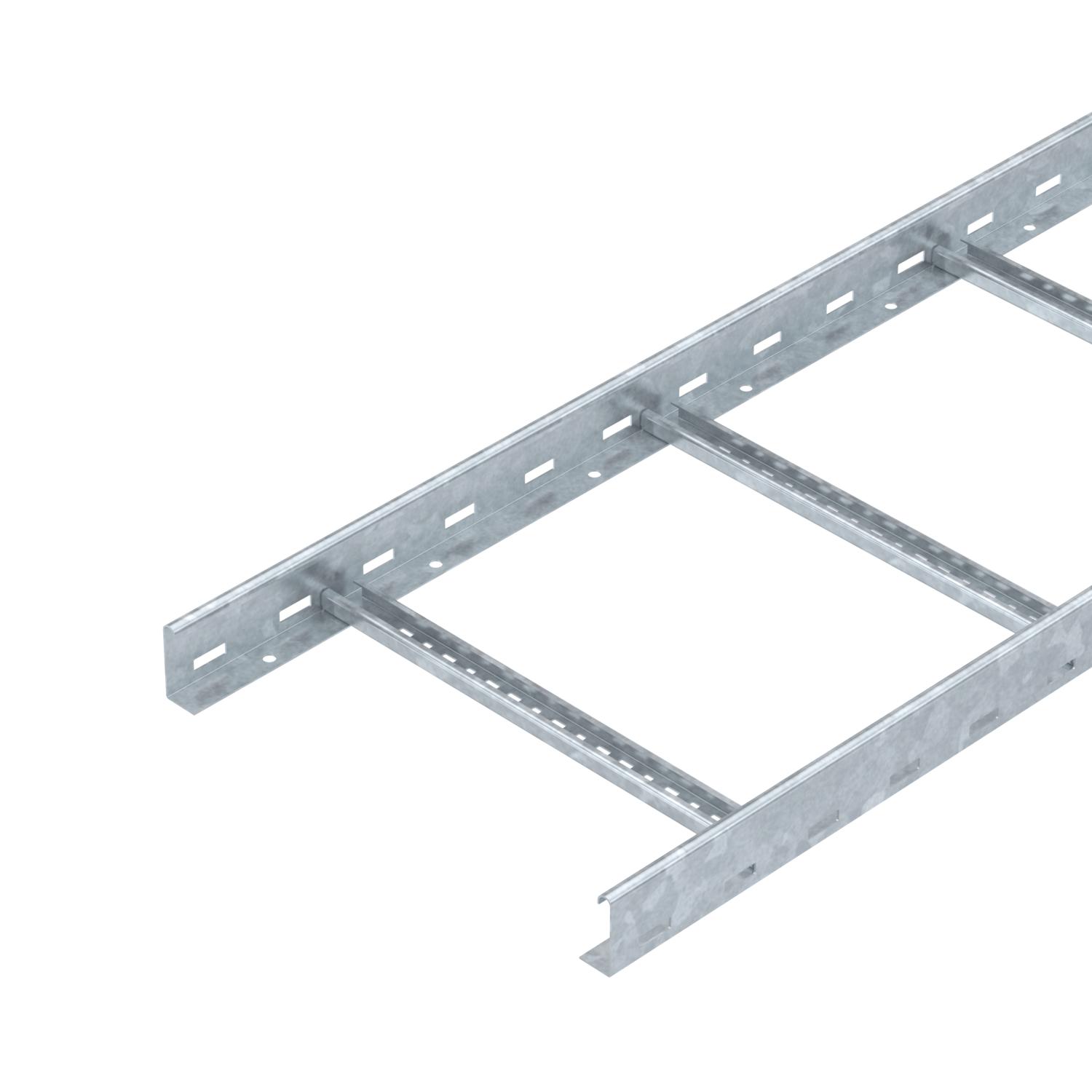

Cable ladder with perforated side rail of side height 60 mm with riveted C profile frames, open in an upwards direction (VS version).
Magnetic shield insulation without cover 10 dB, with cover 15 dB.
Additional widths are available on request.

Technical data

Technical data

Colour	zinc
CO₂ Footprint (GWP) Cradle-to-Gate	7,7542 kg CO₂e / 1 Meter
Dimension	60x400x3000
Dimension	60x400x3000
Dimension B	400 mm
Fastening of rung	Blind riveted
Fire protection	Maintenance of electrical function of standard support structure
Height	60 mm
Length	3000 mm
Maintain electrical functions	yes
Material	Steel
Rail thickness	1,5 mm
Rung distance	300 mm
Rung slot dimension	16,50
Rustproof steel, pickled	no

Side perforation	yes
Side rail version	Flat profile
Support spacing 1.5 m	3,1 kN/m
Support spacing 2.0 m	2,25 kN/m
Support spacing 2.5 m	1,5 kN/m
Support spacing 3.0 m	1,1 kN/m
Support spacing 3.5 m	0,75 kN/m
Support spacing 4.0 m	0,45 kN/m
Surface	Strip galvanized
Usable cross-section	19800 mm²
Usable cross-section	198 cm²
Version of the rungs	Profile perforated
Wide-span version	no
Width	400 mm

Technical data

Load diagram, cable ladder, type LG 60 VS

Permitted cable tray/ladder load in kN/m without man load
Support width in m
Rail bend in mm at permitted kN/m
Load scheme during testing
Load curve with cable tray/ladder width in mm
Strut bend curve according to support width

All types

All types

Types	Length	Width	Rail thickness	Maintain electrical functions	Material	Surface	Item no.	Quantity	SSU
LG 620 VS 3 FS	3000 mm	200 mm	1.5 mm	yes	Steel	Strip galvanized	6208538	m	3 m
LG 630 VS 3 FS	3000 mm	300 mm	1.5 mm	yes	Steel	Strip galvanized	6208541	m	3 m
LG 640 VS 3 FS	3000 mm	400 mm	1.5 mm	yes	Steel	Strip galvanized	6208544	m	3 m
LG 650 VS 3 FS	3000 mm	500 mm	1.5 mm	no	Steel	Strip galvanized	6208547	m	3 m
LG 660 VS 3 FS	3000 mm	600 mm	1.5 mm	no	Steel	Strip galvanized	6208550	m	3 m

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
Cover with turn buckle FS	DRL 400 FS	6052401	m	3 m

Mounting accessories

Products	Types	Item no.	Quantity	SSU
Separating retainer 45 FS	TSG 45 FS	6062033	m	3 m
Clamping piece for separating retainer fastening A2	KS KL A2	6062284	piece	30 piece
Straight connector FS	LVG 60 FS	6208840	piece	10 piece
Protective cap 60	SKH 60 OR	6222537	Pair	40 Pair
Multifunctional connector FS	LMFV 640 FS	6225714	piece	1 piece
