Cable ladder LG 45, 3 m FS

Item no. 6200508 | EAN 4012195063483

3000 mm
1.25 mm
no
Steel
Strip galvanized
Product description
Product description

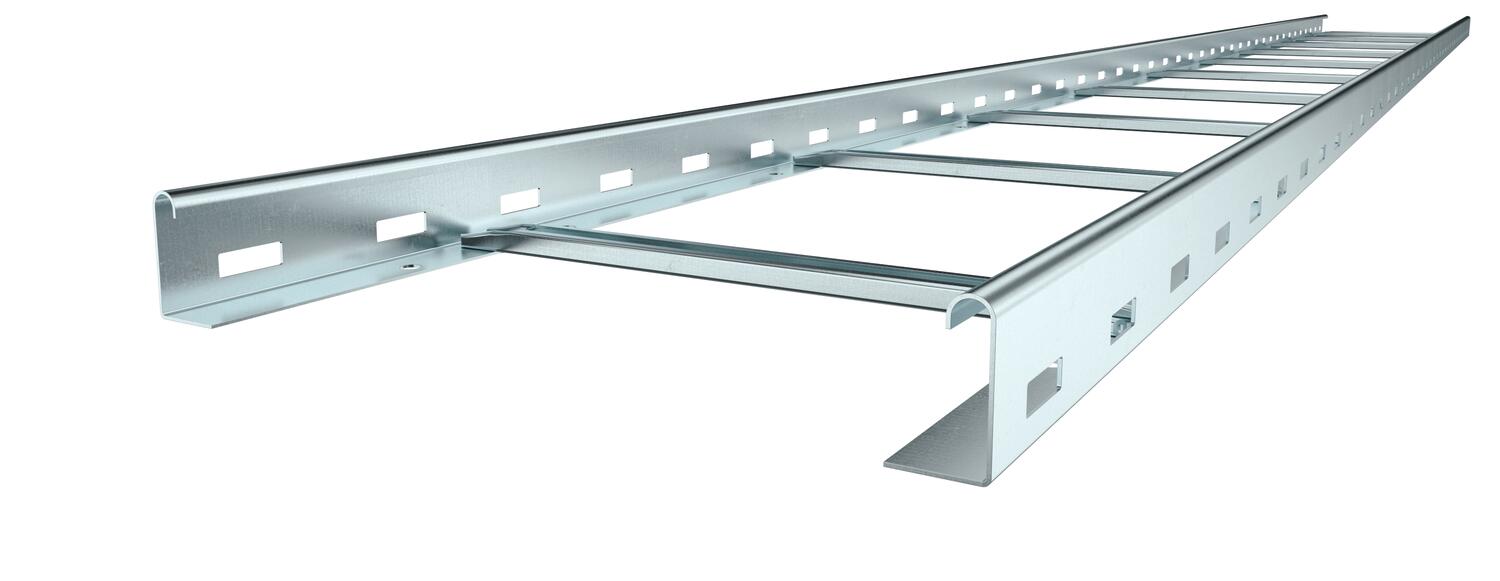

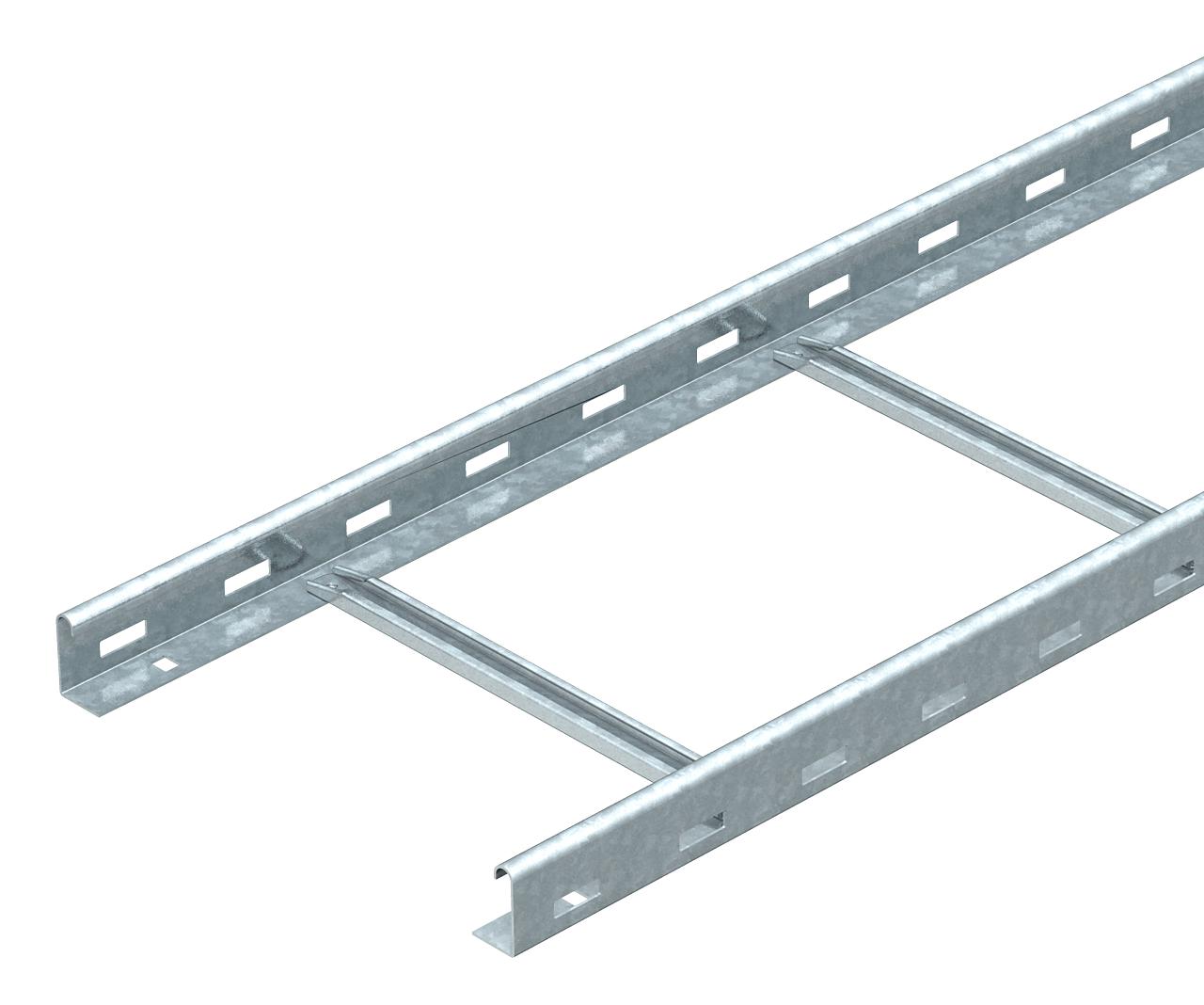

Cable ladder with perforated side rail of side height 45 mm with riveted C profile rungs, open in an upwards direction.
Magnetic shield insulation without cover 10 dB, with cover 15 dB.
  • Magnetic shield insulation
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Cable ladder, side height 45 mm
Technical data

Technical data

CO₂ Footprint (GWP) Cradle-to-Gate 4,437 kg CO₂e / 1 Meter
Dimension 45x200x3000
Dimension 45x200x3000
Dimension B 200 mm
Fastening of rung Blind riveted
Height 45 mm
Length 3000 mm
Length 3000 ft
Maintain electrical functions no
Material Steel
Rail thickness 1,25 mm
Rung distance 300 mm
Rustproof steel, pickled no
Side perforation yes
Side rail version Flat profile
Side wall version Profile (open)
Support spacing 1.5 m 1,8 kN/m
Support spacing 2.0 m 1,4 kN/m
Support spacing 2.5 m 1 kN/m
Support spacing 3.0 m 0,55 kN/m
Surface Strip galvanized
Usable cross-section 68 cm²
Usable cross-section 6800 mm²
Version of the rungs Profile perforated
Wide-span version no
Width 200 mm

Technical data

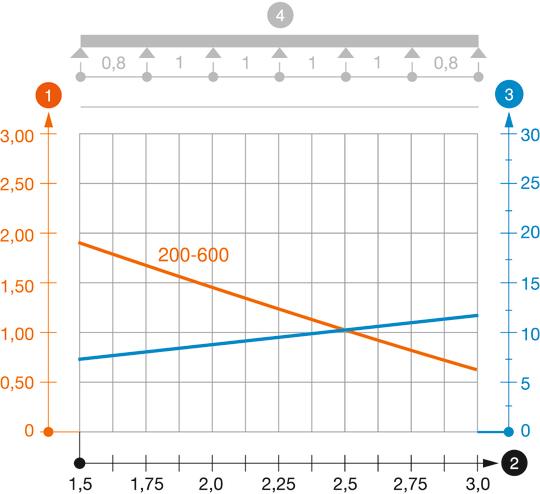

Load diagram, cable ladder, type LG 45 NS

Load diagram, cable ladder, type LG 45 NS
  • Permitted cable tray/ladder load in kN/m without man load Permitted cable tray/ladder load in kN/m without man load
  • Support width in m Support width in m
  • Rail bend in mm at permitted kN/m Rail bend in mm at permitted kN/m
  • Load scheme during testing Load scheme during testing
  • Load curve with cable tray/ladder width in mm Load curve with cable tray/ladder width in mm
  • Strut bend curve according to support width Strut bend curve according to support width
All types

All types

Types Length Width Rail thickness Maintain electrical functions Material Surface Item no. Quantity SSU
LG 420 NS 3 FS 3000 mm 200 mm 1.25 mm no Steel Strip galvanized 6200508
3 m
LG 430 NS 3 FS 3000 mm 300 mm 1.25 mm no Steel Strip galvanized 6200511
3 m
LG 440 NS 3 FS 3000 mm 400 mm 1.25 mm no Steel Strip galvanized 6200514
3 m
LG 450 NS 3 FS 3000 mm 500 mm 1.25 mm no Steel Strip galvanized 6200517
3 m
LG 460 NS 3 FS 3000 mm 600 mm 1.25 mm no Steel Strip galvanized 6200520
3 m
Accessories

System accessories

Products Types Item no. Quantity SSU
Cover with turn buckle FS Cover with turn buckle FS DRL 200 FS 6052207
3 m

Mounting accessories

Products Types Item no. Quantity SSU
Separating retainer 30 FS Separating retainer 30 FS TSG 30 FS 6062050
3 m
Clamping piece for separating retainer fastening A2 Clamping piece for separating retainer fastening A2 KS KL A2 6062284
30 piece

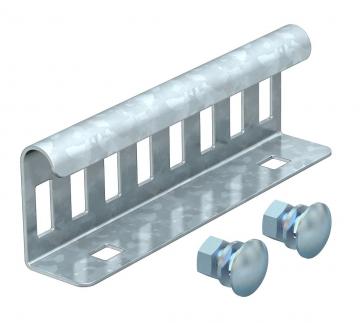

Straight connector FS Straight connector FS LVG 45 FS 6200832
10 piece
Downloads

Download

EU declaration of conformity LG 420 NS 3 FS / 6200508 , 0.10MB , pdf
Download

Download
Download

LG 420 NS 3 FS / 6200508
Download
