Cable ladder LG 110, 6 m VS FT 6000 | 600 | 1.5 | no | Steel | Hot-dip galvanised

Cable ladder LG 110, 6 m VS FT

Item no. 6216477 | EAN 4012195065432

Item no. / Types

Length	6000 mm

Width

Rail thickness	1.5 mm

Maintain electrical functions	no

Material	Steel

Surface	Hot-dip galvanised

Product description

Product description

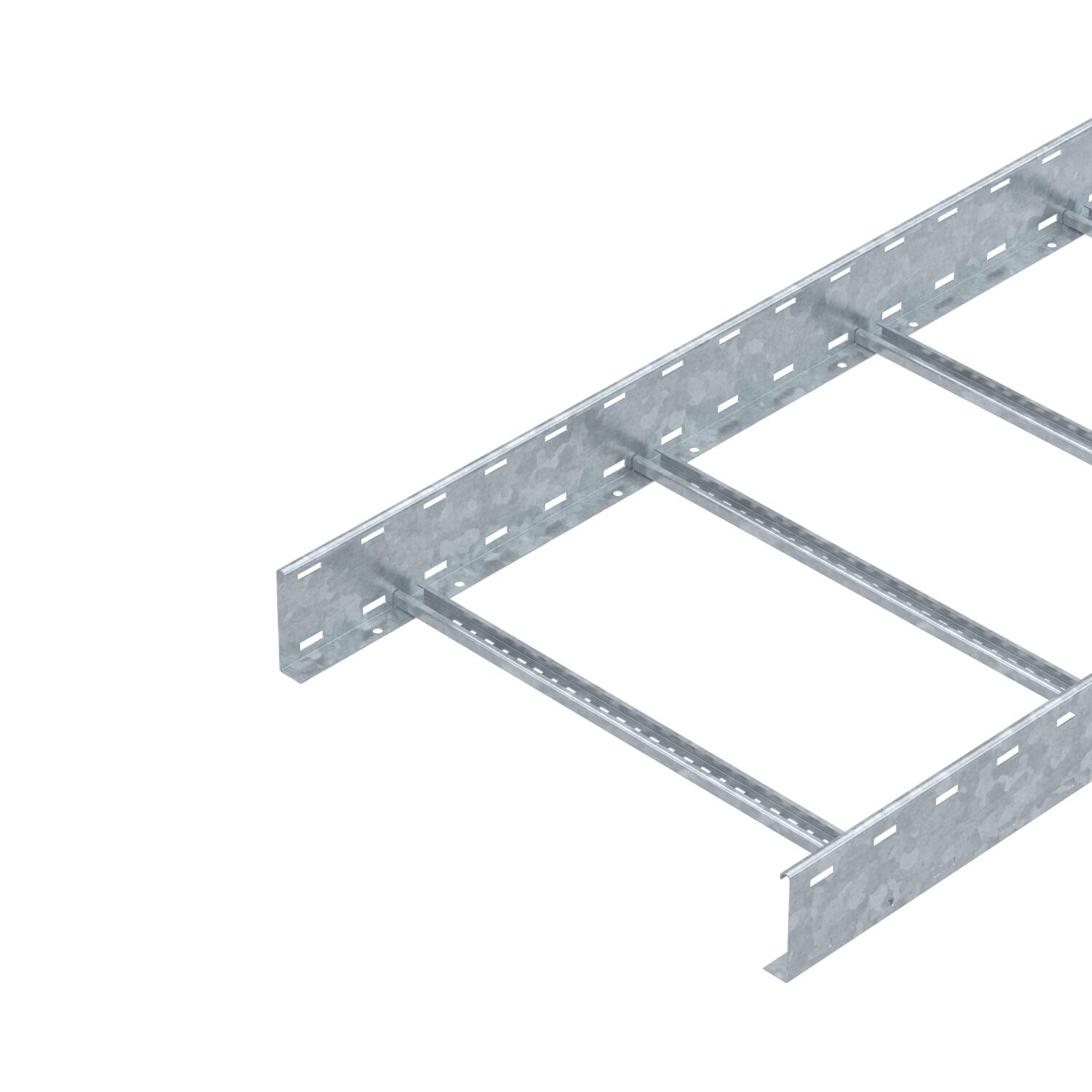

Cable ladder with perforated side rail of side height 110 mm with riveted C profile rungs, open in an upwards direction.
Magnetic shield insulation without cover 10 dB, with cover 15 dB.

Technical data

Technical data

Colour	zinc
CO₂ Footprint (GWP) Cradle-to-Gate	11,261 kg CO₂e / 1 Meter
Dimension	110x600x6000
Dimension	110x600x6000
Dimension B	600 mm
Fastening of rung	Blind riveted
Height	110 mm
Length	6000 mm
Length	6000 ft
Maintain electrical functions	no
Material	Steel
Rail thickness	1,5 mm
Rung distance	300 mm
Rung slot dimension	16,50
Rustproof steel, pickled	no

Side perforation	yes
Side rail version	Flat profile
Support spacing 2.0 m	3,1 kN/m
Support spacing 2.5 m	2 kN/m
Support spacing 3.0 m	1,4 kN/m
Support spacing 3.5 m	0,9 kN/m
Support spacing 4.0 m	0,65 kN/m
Support spacing 4.5 m	0,5 kN/m
Support spacing 5.0 m	0,5 kN/m
Surface	Hot-dip galvanised
Usable cross-section	56800 mm²
Usable cross-section	568 cm²
Version of the rungs	Profile perforated
Wide-span version	no
Width	600 mm

Technical data

Load diagram, cable ladder, type LG 110 VS

Permitted cable tray/ladder load in kN/m without man load
Support width in m
Rail bend in mm at permitted kN/m
Load scheme during testing
Load curve with cable tray/ladder width in mm
Strut bend curve according to support width

All types

All types

Types	Length	Width	Rail thickness	Maintain electrical functions	Material	Surface	Item no.	Quantity	SSU
LG 112 VS 6 FT	6000 mm	200 mm	1.5 mm	no	Steel	Hot-dip galvanised	6216465	m	6 m
LG 113 VS 6 FT	6000 mm	300 mm	1.5 mm	no	Steel	Hot-dip galvanised	6216468	m	6 m
LG 114 VS 6 FT	6000 mm	400 mm	1.5 mm	no	Steel	Hot-dip galvanised	6216471	m	6 m
LG 115 VS 6 FT	6000 mm	500 mm	1.5 mm	no	Steel	Hot-dip galvanised	6216474	m	6 m
LG 116 VS 6 FT	6000 mm	600 mm	1.5 mm	no	Steel	Hot-dip galvanised	6216477	m	6 m

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
Straight connector FT	LVG 110 FT	6216548	piece	10 piece
Multifunctional connector FT	LMFV 1160 FT	6225780	piece	1 piece
Cover with turn buckle FT	DRL 600 FT	6051472	m	3 m
Barrier strip 85 DD	TSG 85 DD	6062331	m	3 m
Drop-out plate FT	LAB 60 FT	6220479	piece	1 piece
