Cable ladder LG 110, 6 m VS FS 6000 | 500 | 1.5 | no | Steel | Strip galvanized

Cable ladder LG 110, 6 m VS FS

Item no. 6216451 | EAN 4012195065333

Item no. / Types

Length	6000 mm

Width

Rail thickness	1.5 mm

Maintain electrical functions	no

Material	Steel

Surface	Strip galvanized

Product description

Product description

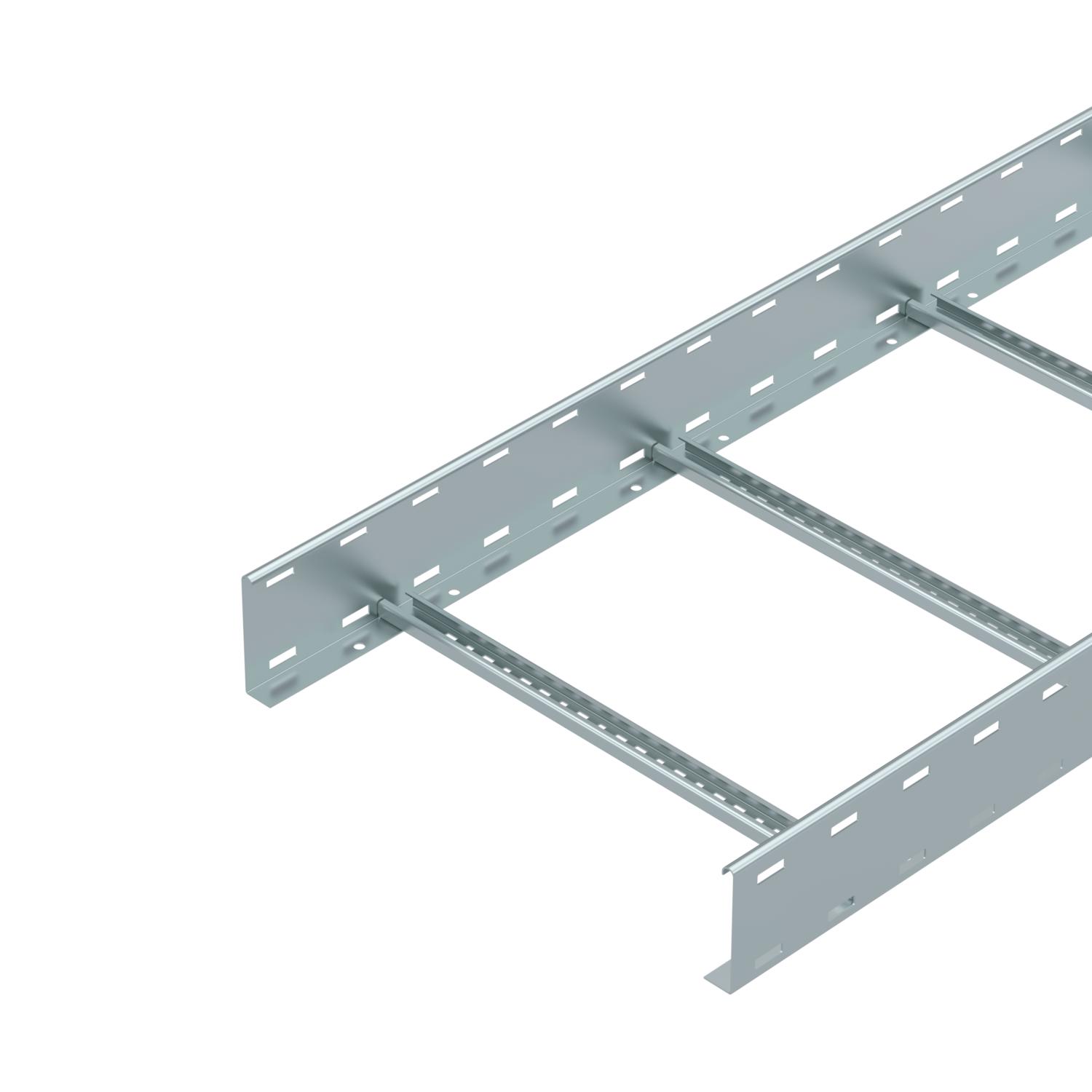

Cable ladder with perforated side rail of side height 110 mm with riveted C profile rungs, open in an upwards direction.
Magnetic shield insulation without cover 10 dB, with cover 15 dB.

Technical data

Technical data

Dimension	110x500x6000
Dimension	110x500x6000
Fastening of rung	Blind riveted
Maintain electrical functions	no
Material	Steel
Rail thickness	1,5 mm
Rung distance	300 mm
Rustproof steel, pickled	no

Side perforation	yes
Side rail version	Flat profile
Surface	Strip galvanized
Usable cross-section	475 cm²
Usable cross-section	47500 mm²
Version of the rungs	Profile perforated
Wide-span version	no

Dimensions

Dimension B	500 mm
Height	110 mm
Length	6000 ft

Length	6000 mm
Rung slot dimension	16,50
Width	500 mm

Loads

Support spacing 2.0 m	3,1 kN/m
Support spacing 2.5 m	2 kN/m
Support spacing 3.0 m	1,4 kN/m
Support spacing 3.5 m	0,9 kN/m

Support spacing 4.0 m	0,65 kN/m
Support spacing 4.5 m	0,5 kN/m
Support spacing 5.0 m	0,5 kN/m

Technical data

Load diagram, cable ladder, type LG 110 VS

Permitted cable tray/ladder load in kN/m without man load
Support width in m
Rail bend in mm at permitted kN/m
Load scheme during testing
Load curve with cable tray/ladder width in mm
Strut bend curve according to support width

All types

All types

Types	Length	Width	Rail thickness	Maintain electrical functions	Material	Surface	Item no.	Quantity	SSU
LG 112 VS 6 FS	6000 mm	200 mm	1.5 mm	no	Steel	Strip galvanized	6216442	m	6 m
LG 113 VS 6 FS	6000 mm	300 mm	1.5 mm	no	Steel	Strip galvanized	6216445	m	6 m
LG 114 VS 6 FS	6000 mm	400 mm	1.5 mm	no	Steel	Strip galvanized	6216448	m	6 m
LG 115 VS 6 FS	6000 mm	500 mm	1.5 mm	no	Steel	Strip galvanized	6216451	m	6 m
LG 116 VS 6 FS	6000 mm	600 mm	1.5 mm	no	Steel	Strip galvanized	6216454	m	6 m
