Cable ladder LG 110, 3 m VS FS 3000 | 200 | 1.5 | no | Steel | Strip galvanized

Cable ladder LG 110, 3 m VS FS

Item no. 6216404 | EAN 4012195064480

Item no. / Types

Length	3000 mm

Width

Rail thickness	1.5 mm

Maintain electrical functions	no

Material	Steel

Surface	Strip galvanized

Product description

Product description

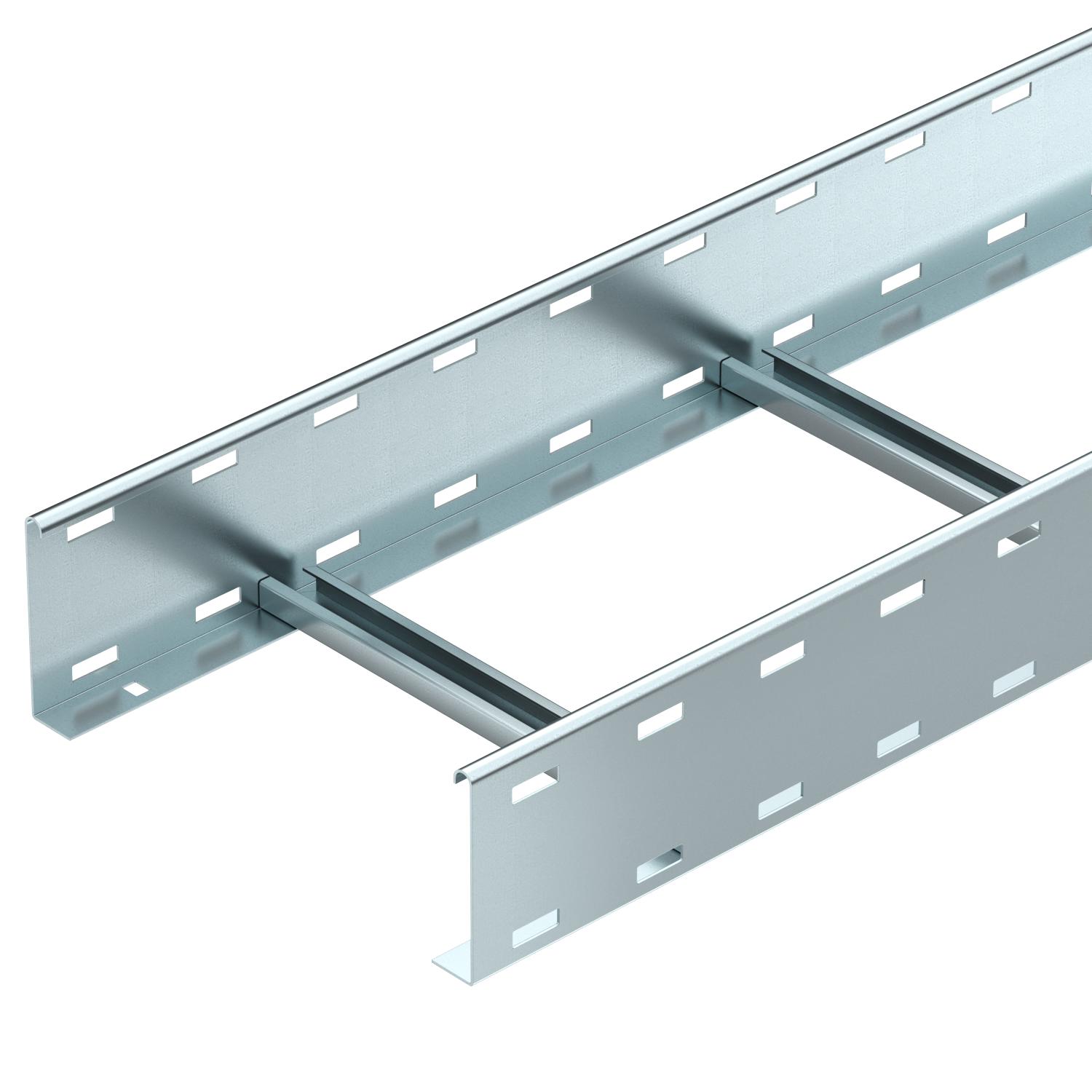

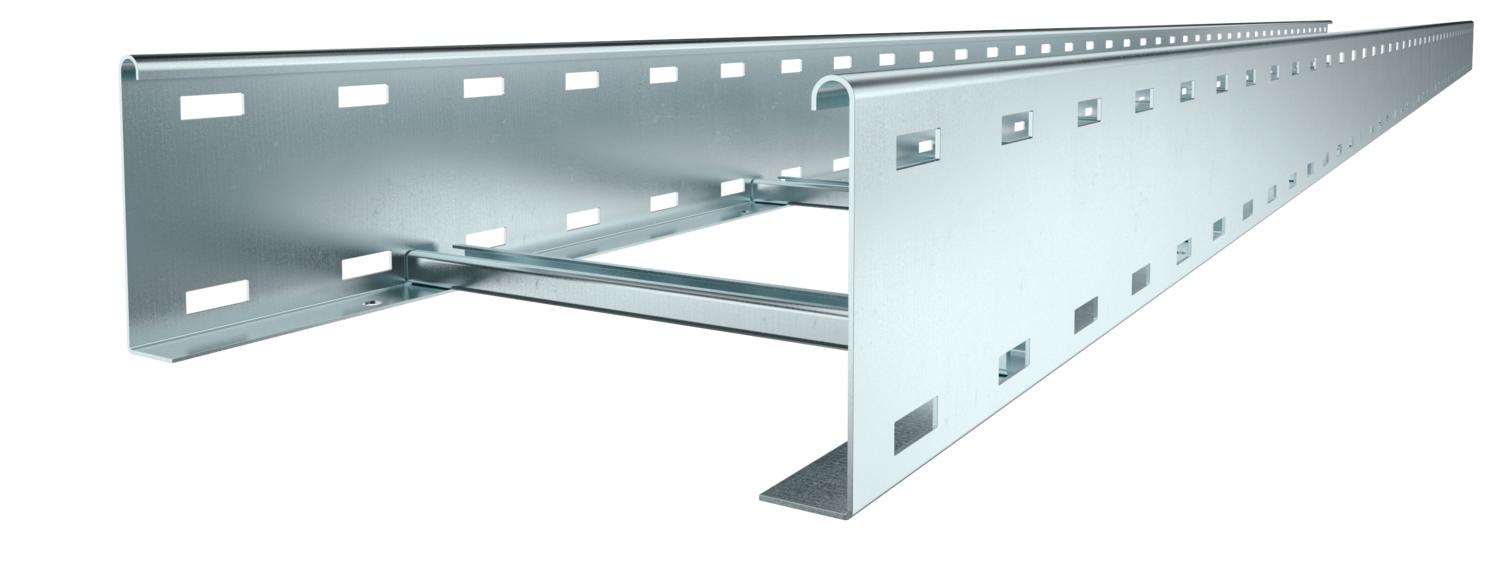

Cable ladder with perforated side rail of side height 110 mm with riveted C profile rungs, open in an upwards direction.
Magnetic shield insulation without cover 10 dB, with cover 15 dB.

Technical data

Technical data

Dimension	110x200x3000
Dimension	110x200x3000
Fastening of rung	Blind riveted
Maintain electrical functions	no
Material	Steel
Rail thickness	1,5 mm
Rung distance	300 mm
Rustproof steel, pickled	no

Side perforation	yes
Side rail version	Flat profile
Surface	Strip galvanized
Usable cross-section	188 cm²
Usable cross-section	18800 mm²
Version of the rungs	Profile perforated
Wide-span version	no

Dimensions

Dimension B	200 mm
Height	110 mm
Length	3000 ft

Length	3000 mm
Rung slot dimension	16,50
Width	200 mm

Loads

Support spacing 2.0 m	3,1 kN/m
Support spacing 2.5 m	2 kN/m
Support spacing 3.0 m	1,4 kN/m
Support spacing 3.5 m	0,9 kN/m

Support spacing 4.0 m	0,65 kN/m
Support spacing 4.5 m	0,5 kN/m
Support spacing 5.0 m	0,5 kN/m

Technical data

Load diagram, cable ladder, type LG 110 VS

Permitted cable tray/ladder load in kN/m without man load
Support width in m
Rail bend in mm at permitted kN/m
Load scheme during testing
Load curve with cable tray/ladder width in mm
Strut bend curve according to support width

All types

All types

Types	Length	Width	Rail thickness	Maintain electrical functions	Material	Surface	Item no.	Quantity	SSU
LG 112 VS 3 FS	3000 mm	200 mm	1.5 mm	no	Steel	Strip galvanized	6216404	m	3 m
LG 113 VS 3 FS	3000 mm	300 mm	1.5 mm	no	Steel	Strip galvanized	6216407	m	3 m
LG 114 VS 3 FS	3000 mm	400 mm	1.5 mm	no	Steel	Strip galvanized	6216410	m	3 m
LG 115 VS 3 FS	3000 mm	500 mm	1.5 mm	no	Steel	Strip galvanized	6216413	m	3 m
LG 116 VS 3 FS	3000 mm	600 mm	1.5 mm	no	Steel	Strip galvanized	6216416	m	3 m

Accessories

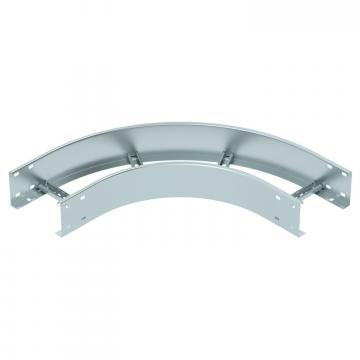

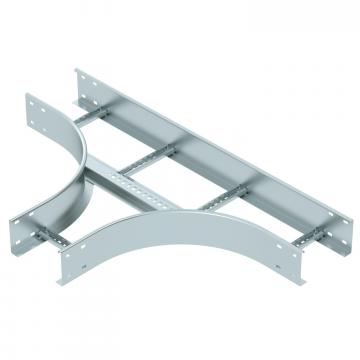

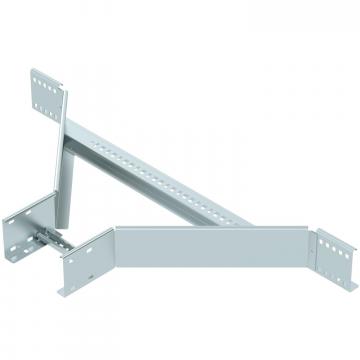

System accessories

Products	Types	Item no.	Quantity	SSU

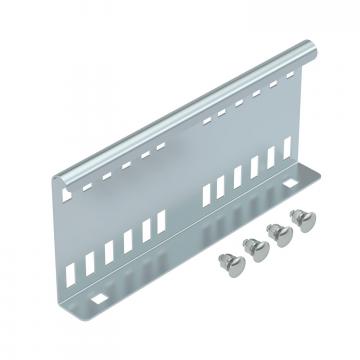

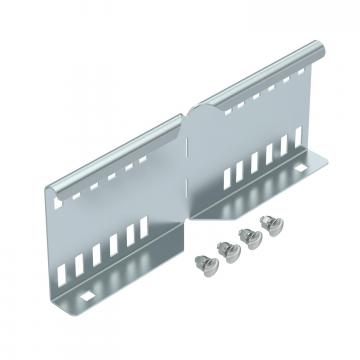

Straight connector FS	LVG 110 FS	6216545	piece	10 piece
Multifunctional connector FS	LMFV 1120 FS	6225750	piece	1 piece

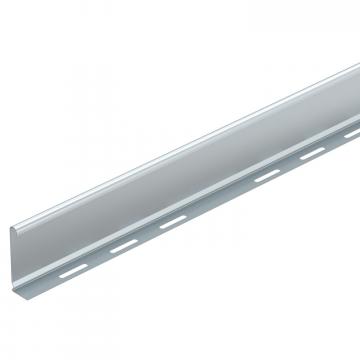

Cover with turn buckle FS	DRL 200 FS	6052207	m	3 m
Separating retainer 85 FS	TSG 85 FS	6062114	m	3 m
