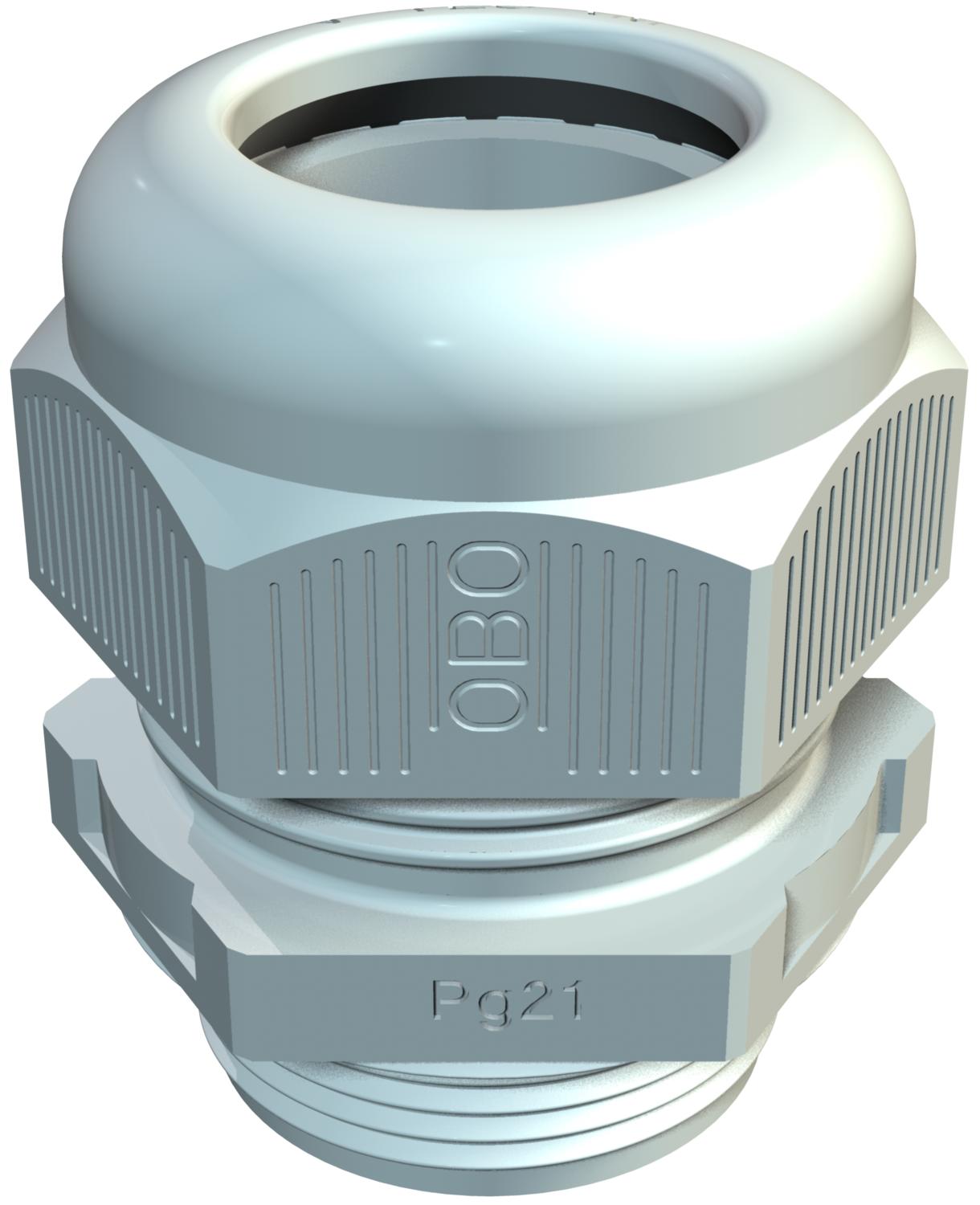

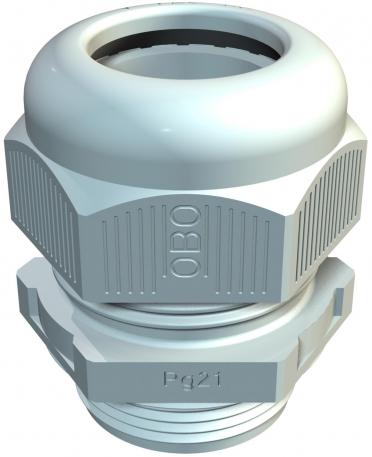

Cable gland, PG thread, silver grey
Item no. 2022656 | EAN 4012195160939
- Product description
-
Product description
Cable gland with PG connection thread in cap nut design, suitable for junction boxes, housings, distributor boxes in private and industrial areas. With strain relief and integrated sealing lip, tested according to DIN EN 62444. Protection class IP68. Can be used between –20°C and +65°C.
-
- Technical data
-
Technical data

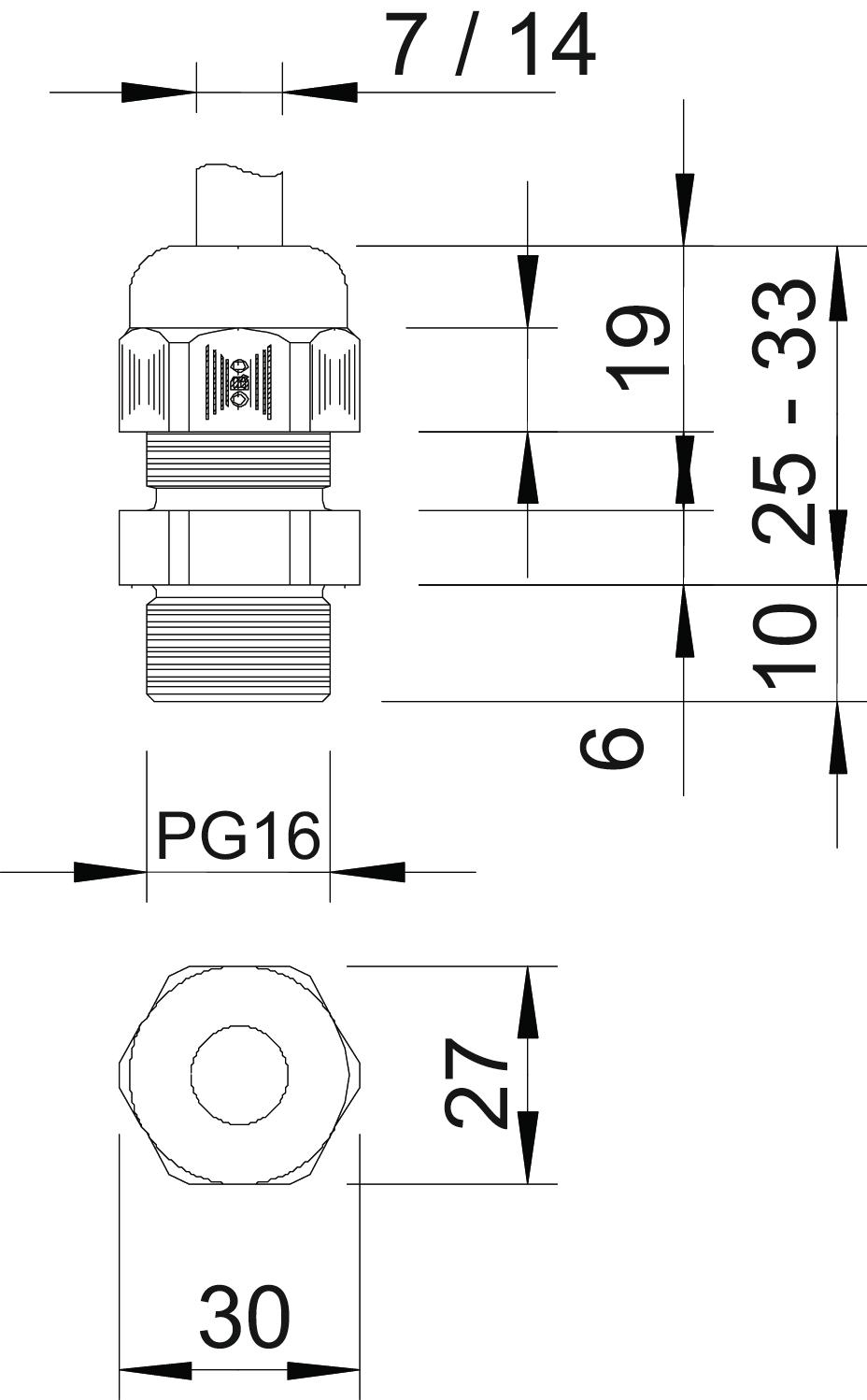

Bend protection no Colour Silver grey; RAL 7001 Dimension PG16 Dimension E 30 mm Dimension L max. 33 mm Dimension L min. 25 mm Dimension L1 10 mm Dimension L2 6 mm Dimension L3 19 mm explosion-proof no Fibre-glass reinforced no Flat cable gland no For Ex zone Without For Ex zone dust Without For Ex zone gas Without Halogen-free yes Hexagonal corner dimension 30 mm Impact-resistant no Material Polyamide Nominal thread size 16 Permitted temperature range, max. 65 °C Permitted temperature range, min. -20 °C Protection rating IP68 Sealing area D, max. 14 mm Sealing area D, min. 7 mm Sealing insert, multiple no Splittable gland no Strain relief option yes Thread Pg 16 Thread increase 1,41 mm Thread length 10 mm Thread type PG Type of seal Sealing ring Unstable torque 3,67 Nm Version for Straight WAF 27 With locknut no - All types
-
All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Locknut, PG thread
116 PG16 2043165 100 piece - Downloads
-
Data sheet V-TEC PG16 SGR / 2022656 , 0.27MB , pdfDeclaration of conformity V-TEC PG16 SGR / 2022656 , 0.06MB , pdfREACH Declaration of conformity V-TEC PG16 SGR / 2022656 , 0.12MB , pdfRoHS Declaration of conformity V-TEC PG16 SGR / 2022656 , 0.12MB , pdfLabel approval DNV symbol approval, V-TEC VM , 0.03MB , pdf
