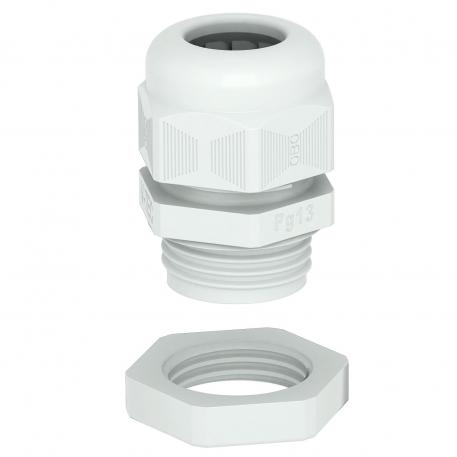

Cable gland, PG thread, set with locknut, light grey | | Pg 48 | no | Light grey; RAL 7035

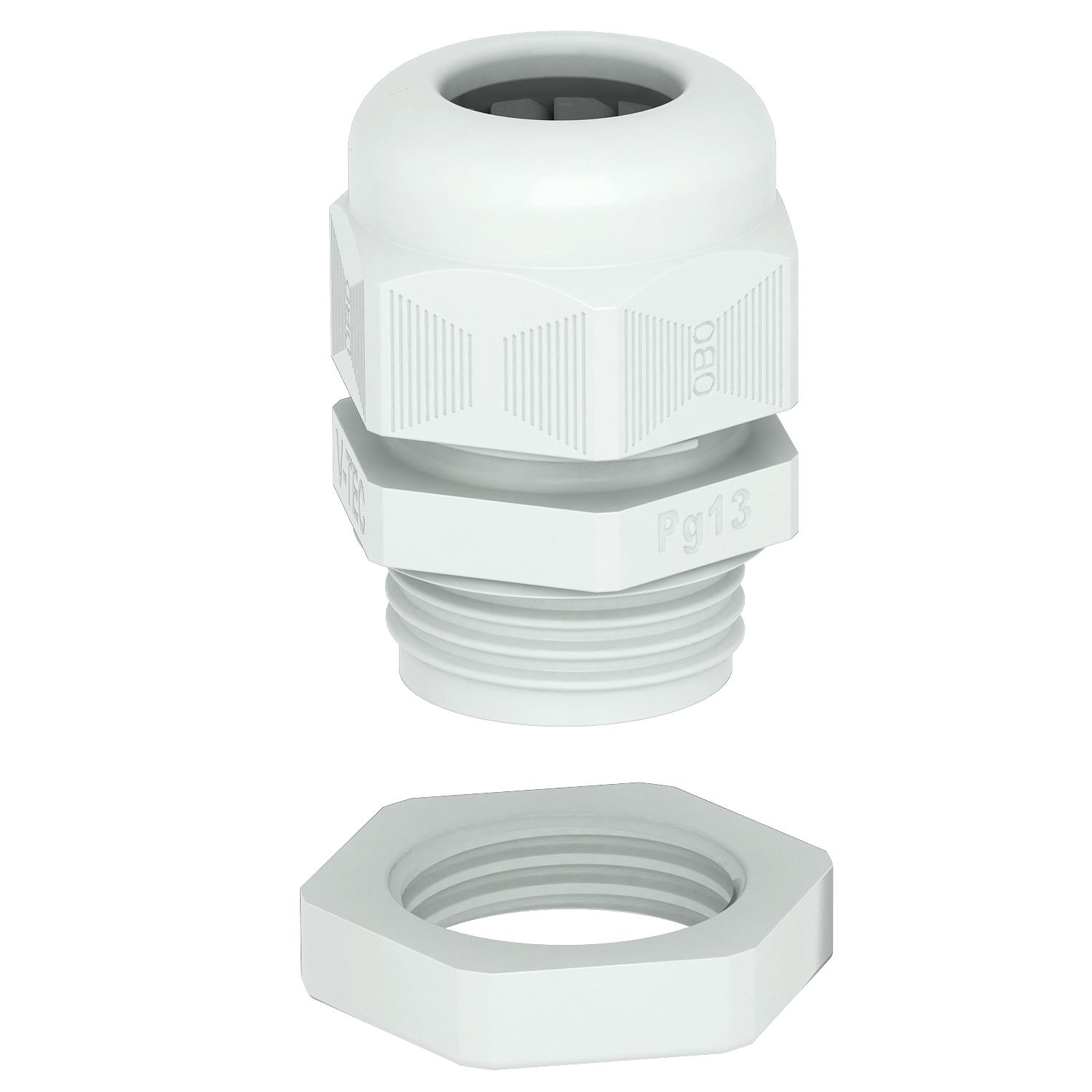

Cable gland, PG thread, set with locknut, light grey

Item no. 2024673 | EAN 4012195861126

Item no. / Types

Thread

Sealing insert, multiple	no

Colour	Light grey; RAL 7035

Product description

Product description

Cable gland with PG connection thread in cap nut design, suitable for junction boxes, housings, distributor boxes in private and industrial areas. With strain relief and integrated sealing lip, tested according to DIN EN 62444. Protection class IP68. Can be used between –20°C and +65°C. Including locknut.
Table column D1: sealing range to VDE 0619, in which no strain relief is required.
Table column D2: Sealing range including strain relief and twist protection to VDE 0619

Technical data

Technical data

Bend protection	no
Colour	Light grey; RAL 7035

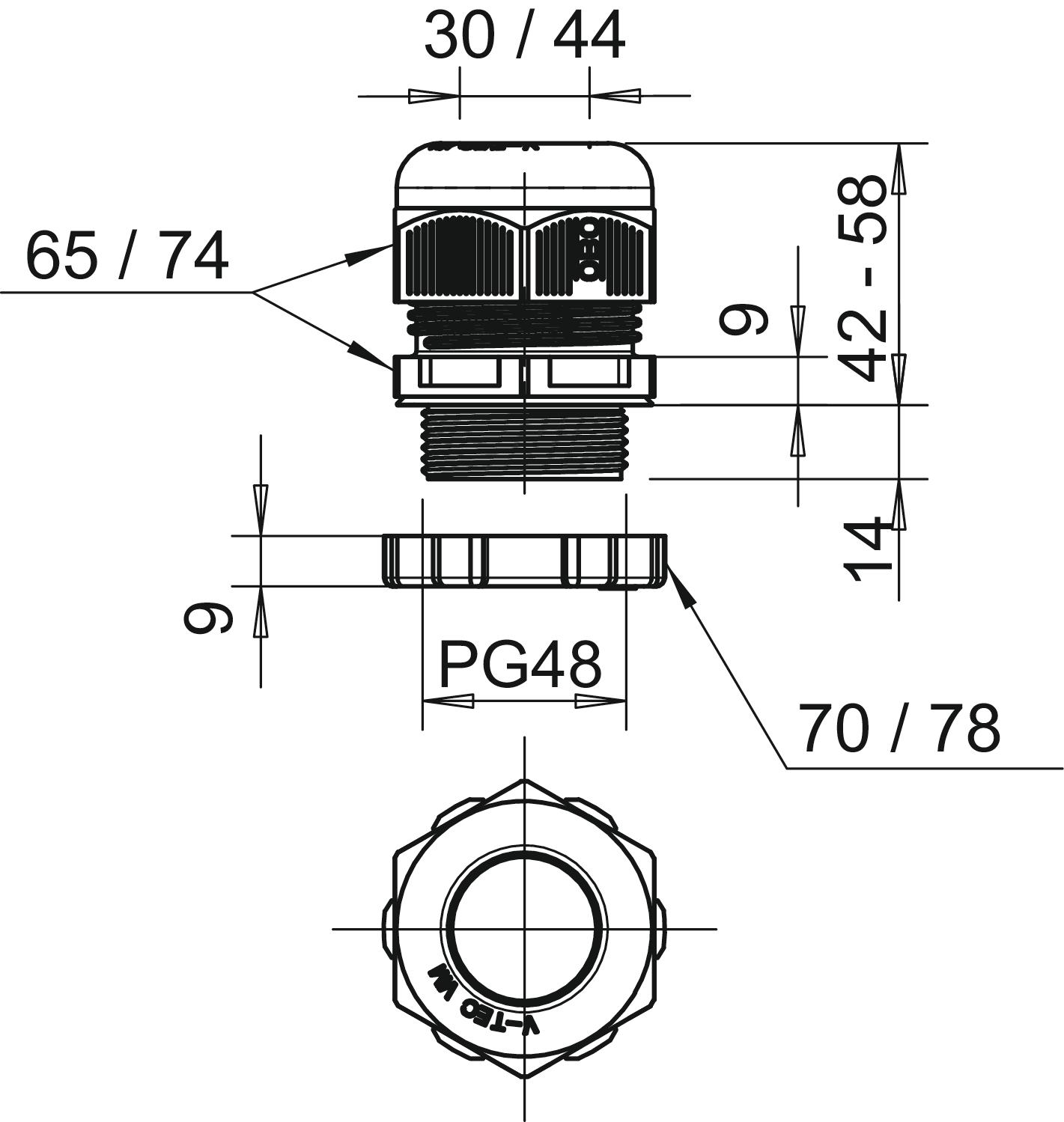

Dimension	PG48
Dimension E1 (mm)	74 mm
Dimension E2	78 mm
Dimension L max.	58 mm
Dimension L min.	42 mm
Dimension L1	14 mm
Dimension L2	9 mm
Dimension L3	8 mm
explosion-proof	no
Fibre-glass reinforced	no
Flat cable gland	no
For Ex zone	Without
For Ex zone dust	Without
For Ex zone gas	Without
Halogen-free	yes
Hexagonal corner dimension	74 mm
Impact-resistant	no

Material	Polyamide
Nominal thread size	48
Permitted temperature range, max.	65 °C
Permitted temperature range, min.	-20 °C
Protection rating	IP68
Sealing area D, max.	44 mm
Sealing area D, min.	30 mm
Sealing insert, multiple	no
Splittable gland	no
Strain relief option	yes
Thread	Pg 48
Thread increase	1,5 mm
Thread length	14 mm
Thread type	PG
Type of seal	Sealing ring
Version for	Straight
WAF 1	65 mm
WAF 2	70 mm
With locknut	yes

All types

All types

Types	Thread	Sealing insert, multiple	Colour	Item no.	Quantity	SSU
V-TEC PG7+ LGR	Pg 7	no	Light grey; RAL 7035	2024655	piece	50 piece
V-TEC PG9+ LGR	Pg 9	no	Light grey; RAL 7035	2024657	piece	50 piece
V-TEC PG11+ LGR	Pg 11	no	Light grey; RAL 7035	2024659	piece	50 piece
V-TEC PG13,5+LGR	Pg 13,5	no	Light grey; RAL 7035	2024661	piece	50 piece
V-TEC PG16+ LGR	Pg 16	no	Light grey; RAL 7035	2024663	piece	25 piece
V-TEC PG21+ LGR	Pg 21	no	Light grey; RAL 7035	2024665	piece	25 piece
V-TEC PG29+ LGR	Pg 29	no	Light grey; RAL 7035	2024667	piece	20 piece
V-TEC PG36+ LGR	Pg 36	no	Light grey; RAL 7035	2024669	piece	10 piece
V-TEC PG42+ LGR	Pg 42	no	Light grey; RAL 7035	2024671	piece	5 piece
V-TEC PG48+ LGR	Pg 48	no	Light grey; RAL 7035	2024673	piece	5 piece
