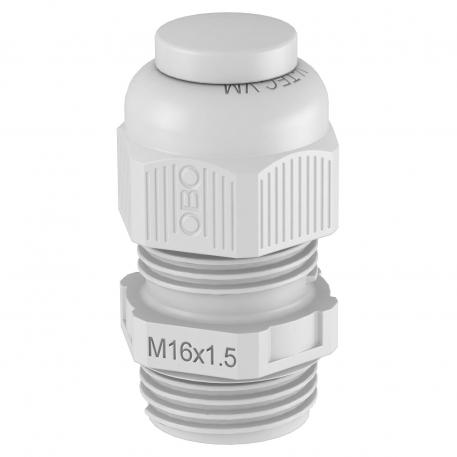

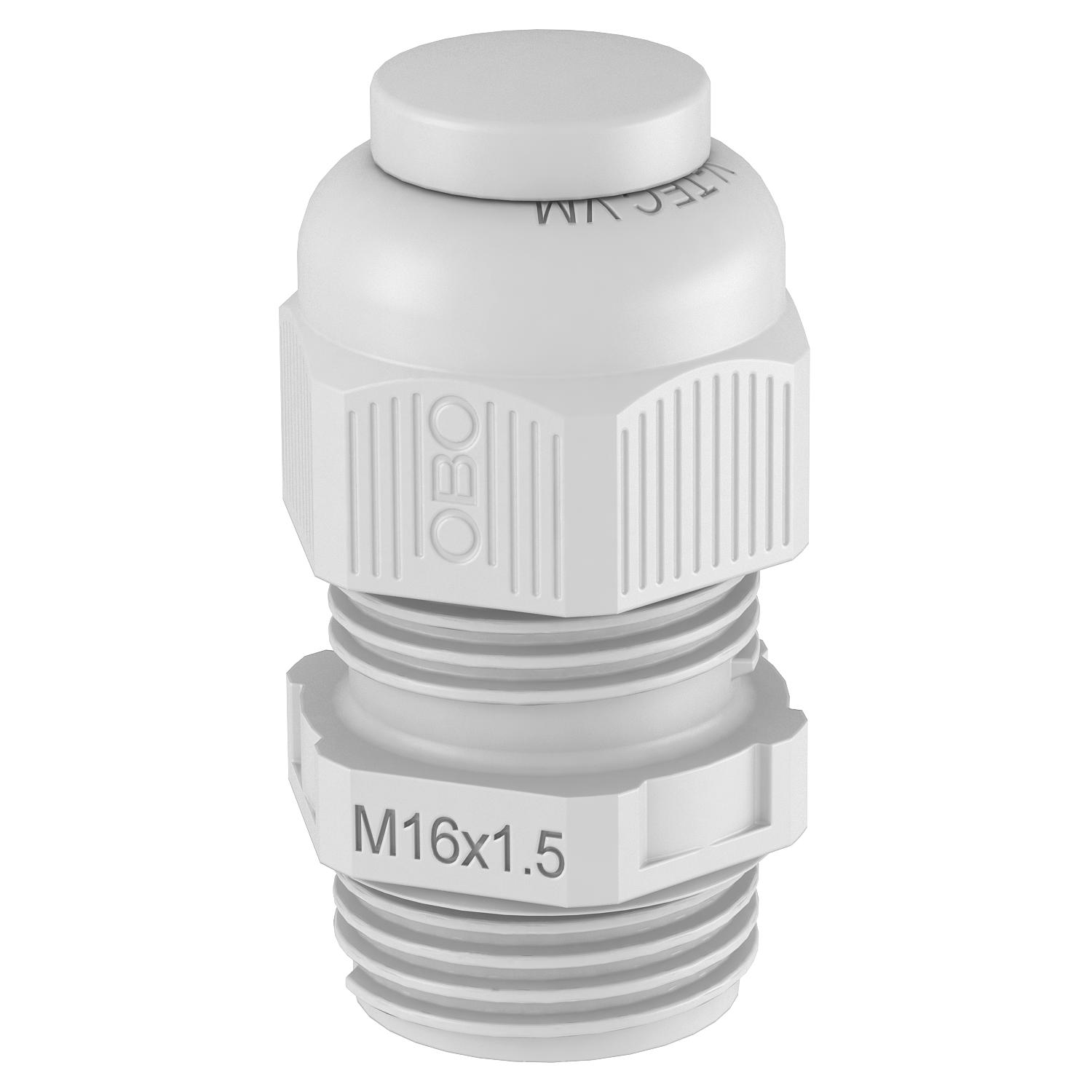

Cable gland, metric thread, with screw plug, light grey
Item no. 2023042 | EAN 4012196474424
- Product description
-
Product descriptionCable gland with metric connection thread in cap nut design, suitable for junction boxes, housings, distributor cabinets in private and industrial areas. With strain relief and integrated sealing lip, tested according to DIN EN 62444. Protection class IP68. Can be used between –20°C and +65°C.
-
- Technical data
-
Technical data
Bend protection no Colour Light grey; RAL 7035 Dimension M16 Dimension E 22 mm Dimension L max. 23,5 mm Dimension L min. 25,5 mm Dimension L1 8 mm Dimension L2 5 mm Dimension L3 21,5 mm explosion-proof no Fibre-glass reinforced no Flame-resistant acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C Flat cable gland no For Ex zone Without For Ex zone dust Without For Ex zone gas Without Halogen-free yes Height 22 mm Hexagonal corner dimension 22 mm Impact-resistant no Length 25,5 mm Material Polyamide Nominal thread size 16 Permitted temperature range, max. 65 °C Permitted temperature range, min. -20 °C Protection rating IP68 Sealing area D, max. 10 mm Sealing area D, min. 4,5 mm Sealing insert, multiple no Splittable gland no Strain relief option yes Thread M16 x 1,5 Thread increase 1,5 mm Thread length 8 mm Thread type Metric Type of seal Sealing ring Version for Straight WAF 20 WAF 1 20 mm Width 20 mm With locknut no - All types
-
All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Locknut, metric thread, light grey
116 M16 LGR PA 2048914 100 piece - Downloads
-
