Cable gland, metric thread, set with locknut, light grey | | M63 x 1,5 | no | Light grey; RAL 7035

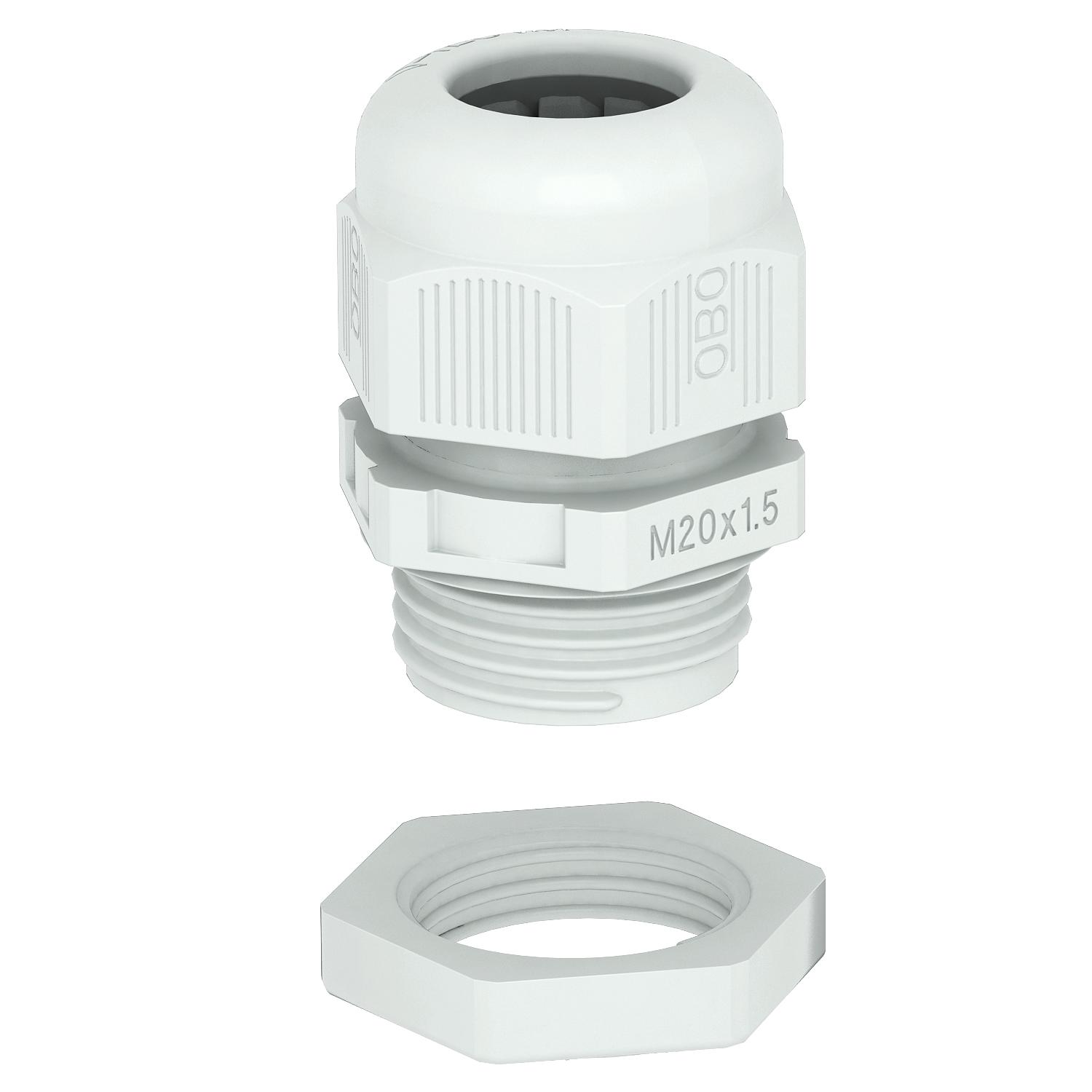

Cable gland, metric thread, set with locknut, light grey

Item no. 2022776 | EAN 4012195860990

Item no. / Types

Thread

Sealing insert, multiple	no

Colour	Light grey; RAL 7035

Product description

Product description

Cable gland with metric connection thread in cap nut design, suitable for junction boxes, housings, distributor cabinets in private and industrial areas. With strain relief and integrated sealing lip, tested according to DIN EN 62444. Protection class IP68. Can be used between –20°C and +65°C. Including locknut.

Technical data

Technical data

Bend protection	no
Colour	Light grey; RAL 7035

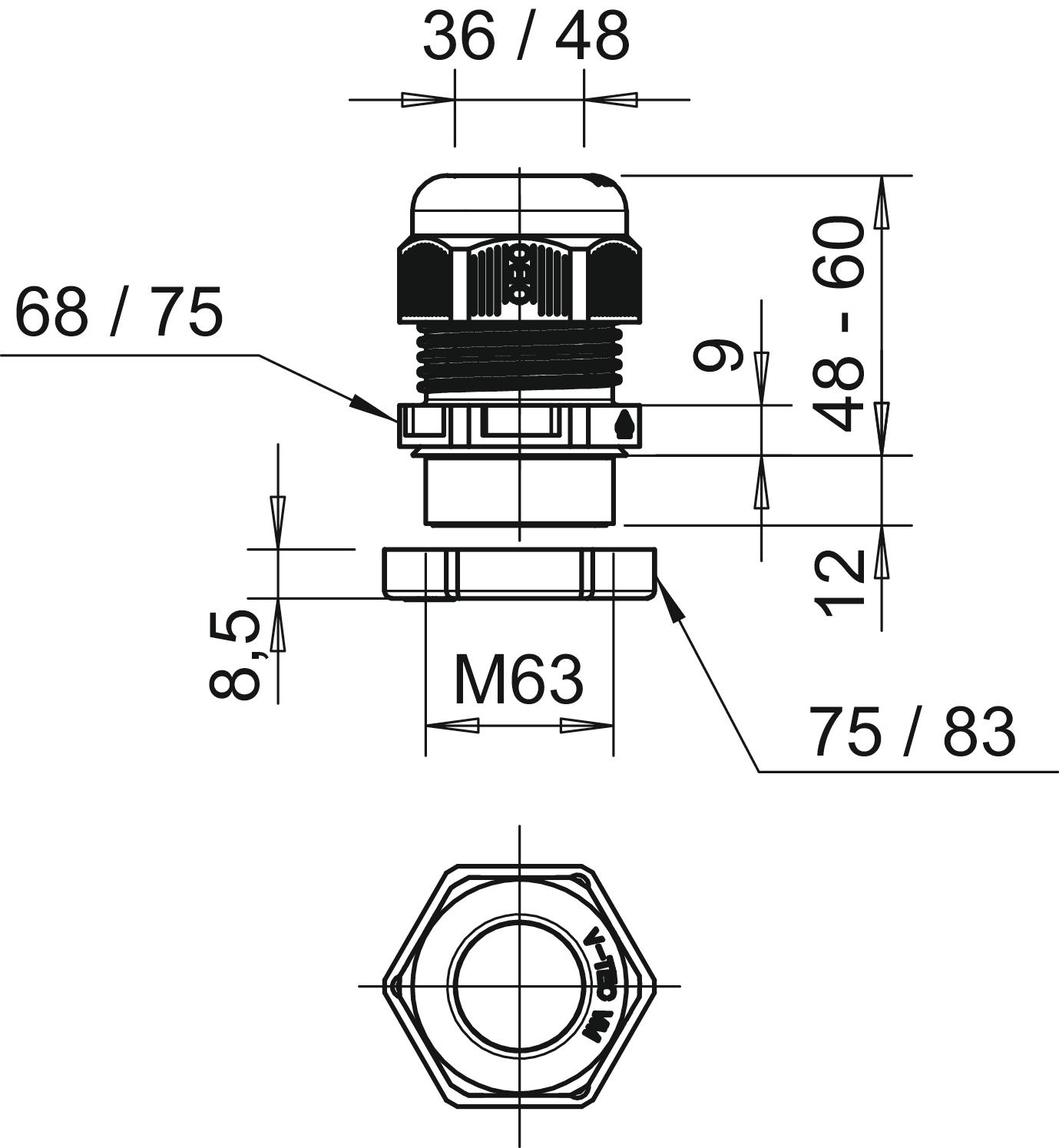

Dimension	M63
Dimension E1 (mm)	75 mm
Dimension E2	83 mm
Dimension L max.	60 mm
Dimension L min.	48 mm
Dimension L1	12 mm
Dimension L2	9 mm
Dimension L3	8,5 mm
explosion-proof	no
Fibre-glass reinforced	no
Flame-resistant	acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C
Flat cable gland	no
For Ex zone	Without
For Ex zone dust	Without
For Ex zone gas	Without
Halogen-free	yes
Impact-resistant	no
Material	Polyamide

Nominal thread size	63
Permitted temperature range, max.	65 °C
Permitted temperature range, min.	-20 °C
Protection rating	IP68
Sealing area D, max.	48 mm
Sealing area D, min.	36 mm
Sealing insert, multiple	no
Splittable gland	no
Strain relief option	yes
Thread	M63 x 1,5
Thread increase	1,5 mm
Thread length	12 mm
Thread type	Metric
Type of seal	Sealing ring
Unstable torque	15 Nm
Version for	Straight
WAF 1	68 mm
WAF 2	75 mm
With locknut	no

All types

All types

Types	Thread	Sealing insert, multiple	Colour	Item no.	Quantity	SSU
V-TEC VM12+ LGR	M12 x 1,5	no	Light grey; RAL 7035	2022762	piece	50 piece
V-TEC VM16+ LGR	M16 x 1,5	no	Light grey; RAL 7035	2022764	piece	50 piece
V-TEC VM20+ LGR	M20 x 1,5	no	Light grey; RAL 7035	2022766	piece	50 piece
V-TEC VM25+ LGR	M25 x 1,5	no	Light grey; RAL 7035	2022768	piece	25 piece
V-TEC VM32+ LGR	M32 x 1,5	no	Light grey; RAL 7035	2022770	piece	20 piece
V-TEC VM40+ LGR	M40 x 1,5	no	Light grey; RAL 7035	2022772	piece	10 piece
V-TEC VM50+ LGR	M50 x 1,5	no	Light grey; RAL 7035	2022774	piece	5 piece
V-TEC VM63+ LGR	M63 x 1,5	no	Light grey; RAL 7035	2022776	piece	5 piece
