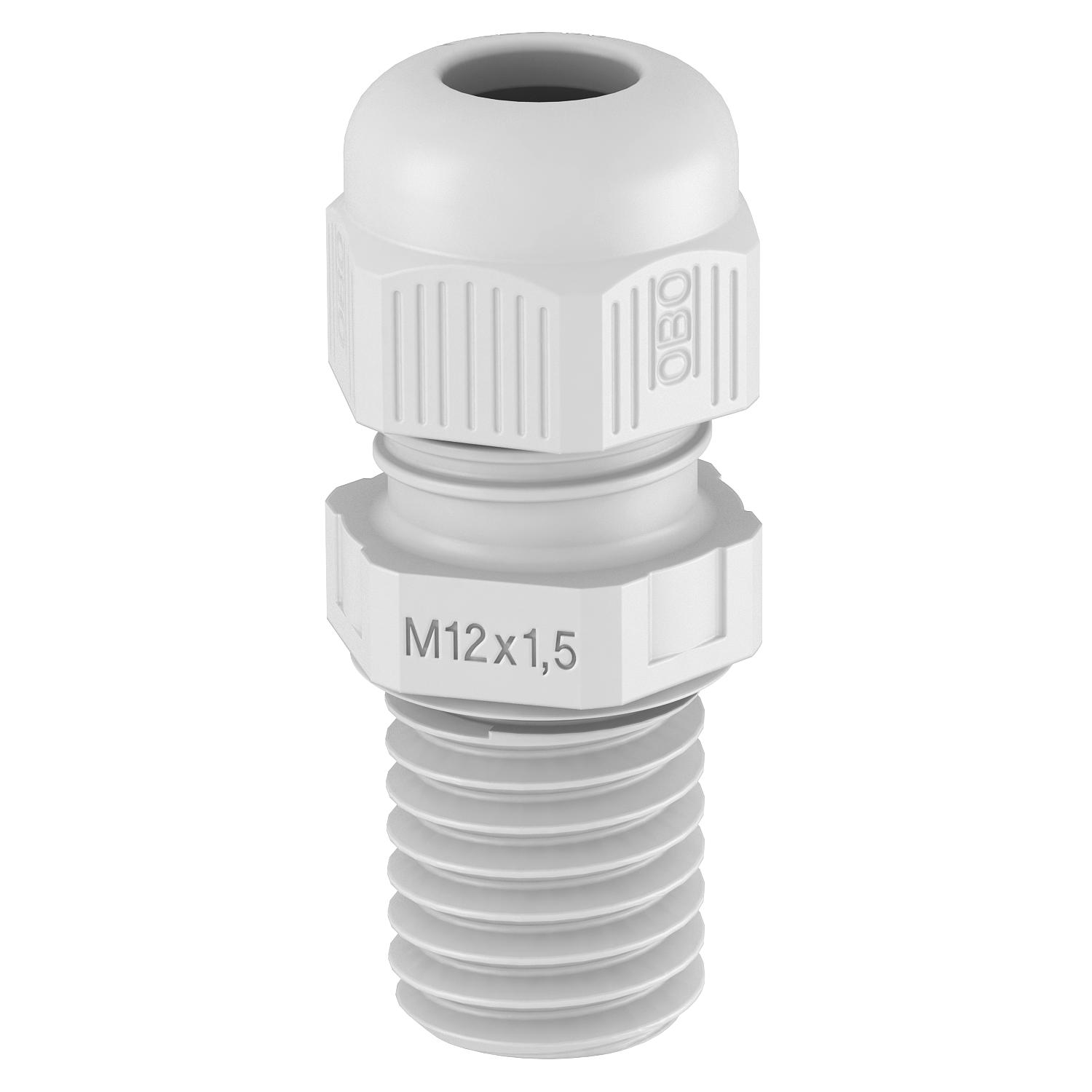

Cable gland, metric thread, long, light grey

Item no. 2022943 | EAN 4012195004127

no
Light grey; RAL 7035
Product description

Product description

Cable gland with metric connection thread in cap nut design, suitable for junction boxes, housings, distributor cabinets in private and industrial areas. With strain relief and integrated sealing lip, tested according to DIN EN 62444. Protection class IP68. Can be used between –20°C and +65°C.
  • Underwriters Laboratories Inc., USA + CSA, Canada
  • Det Norske Veritas
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Flame resistant 650 °C
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection rating IP 68
  • Thread metric
Technical data

Technical data

Bend protection no
Colour Light grey; RAL 7035

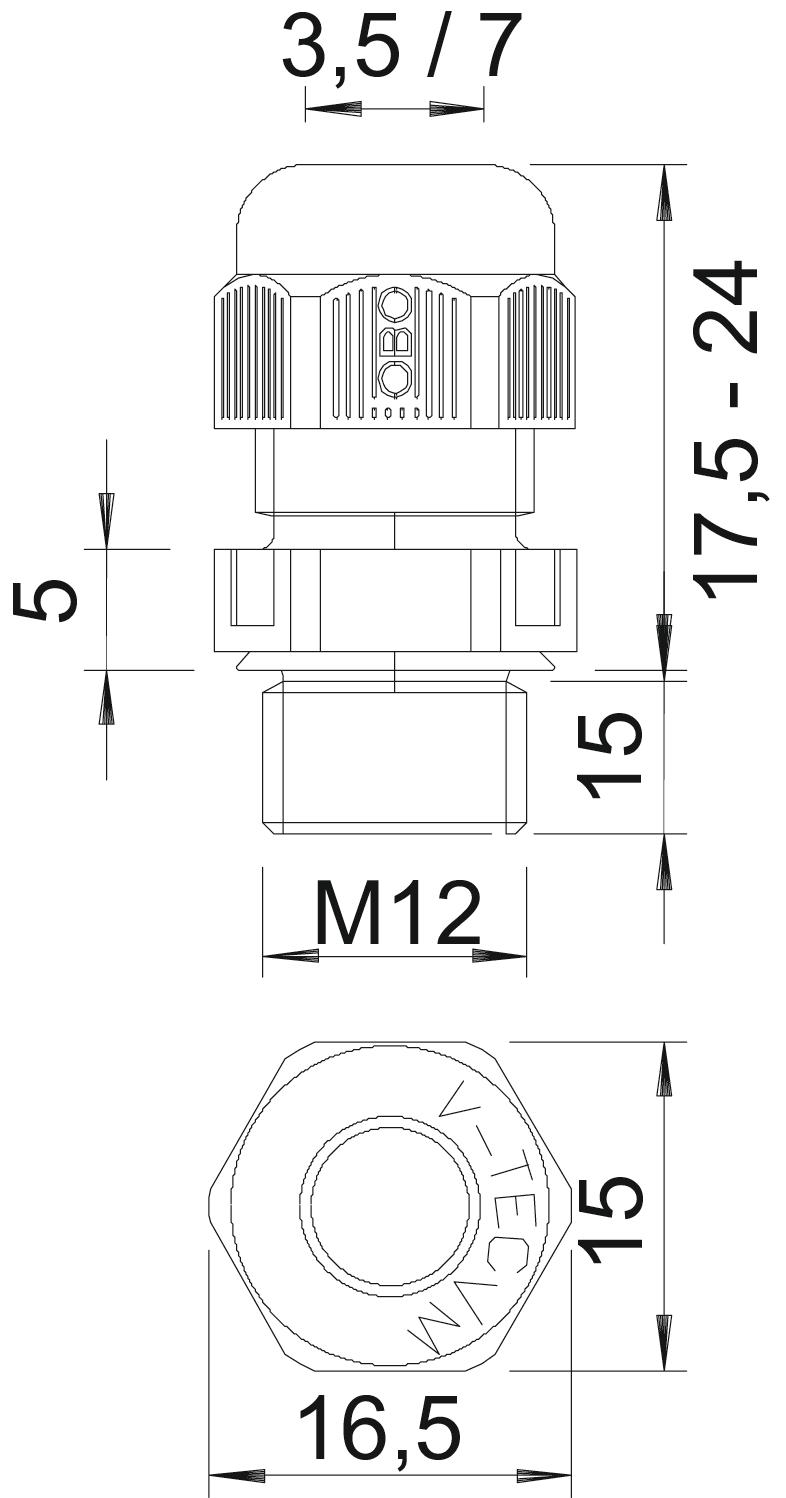

Dimension M12
Dimension E 16,5 mm
Dimension L max. 24 mm
Dimension L min. 17,5 mm
Dimension L1 15 mm
Dimension L2 5 mm
explosion-proof no
Fibre-glass reinforced no
Flame-resistant acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C
Flat cable gland no
For Ex zone Without
For Ex zone dust Without
For Ex zone gas Without
Halogen-free yes
Hexagonal corner dimension 16,5 mm
Impact-resistant no
Material Polyamide
Nominal thread size 12
Permitted temperature range, max. 65 °C
Permitted temperature range, min. -20 °C
Protection rating IP68
Sealing area D, max. 7 mm
Sealing area D, min. 3,5 mm
Sealing insert, multiple no
Splittable gland no
Strain relief option yes
Thread M12 x 1,5
Thread increase 1,5 mm
Thread length 15 mm
Thread type Metric
Type of seal Sealing ring
Unstable torque 2 Nm
Version for Straight
WAF 15
With locknut no
All types

All types

Types Thread Sealing insert, multiple Colour Item no. Quantity SSU
V-TEC VM L12 LGR M12 x 1,5 no Light grey; RAL 7035 2022943
50 piece
V-TEC VM L16 LGR M16 x 1,5 no Light grey; RAL 7035 2022945
50 piece
V-TEC VM L20 LGR M20 x 1,5 no Light grey; RAL 7035 2022947
50 piece
V-TEC VM L25 LGR M25 x 1,5 no Light grey; RAL 7035 2022949
25 piece
V-TEC VM L32 LGR M32 x 1,5 no Light grey; RAL 7035 2022951
20 piece
V-TEC VM L40 LGR M40 x 1,5 no Light grey; RAL 7035 2022953
10 piece
V-TEC VM L50 LGR M50 x 1,5 no Light grey; RAL 7035 2022955
5 piece
V-TEC VM L63 LGR M63 x 1,5 no Light grey; RAL 7035 2022957
5 piece
Accessories

Mounting accessories

Products Types Item no. Quantity SSU
Locknut, metric thread, light grey Locknut, metric thread, light grey 116 M12 LGR PA 2048906
100 piece
