Cable gland, long PG thread, light grey

Item no. 2024284 | EAN 4012195839538

no
Light grey; RAL 7035
Product description

Product description

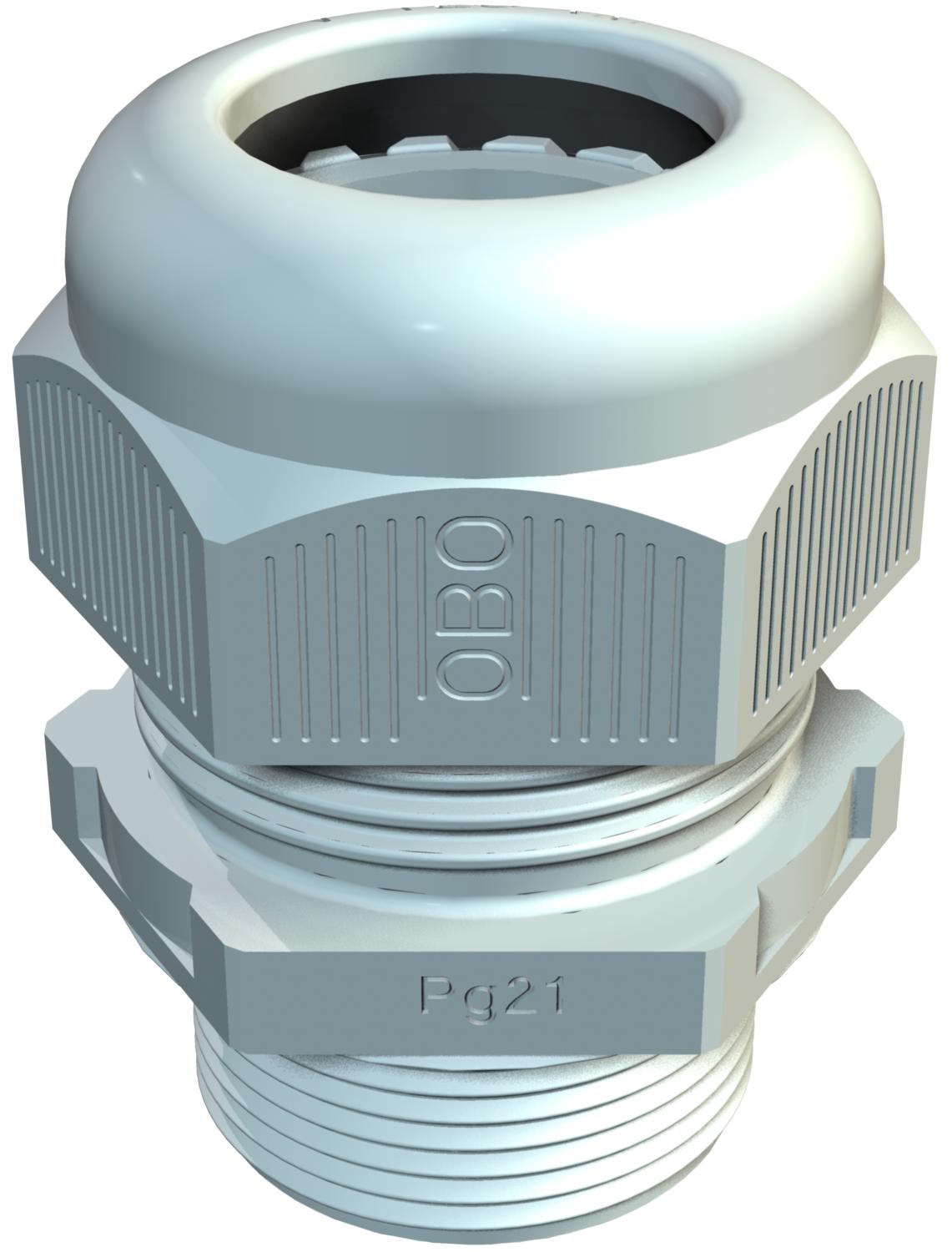

Cable gland with PG connection thread in cap nut design, suitable for junction boxes, housings, distributor boxes in private and industrial areas. With strain relief and integrated sealing lip, tested according to DIN EN 62444. Protection class IP68. Can be used between –20°C and +65°C.
  • Det Norske Veritas
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection rating IP 68
  • Thread Pg
Technical data

Technical data

Bend protection no
Colour Light grey; RAL 7035

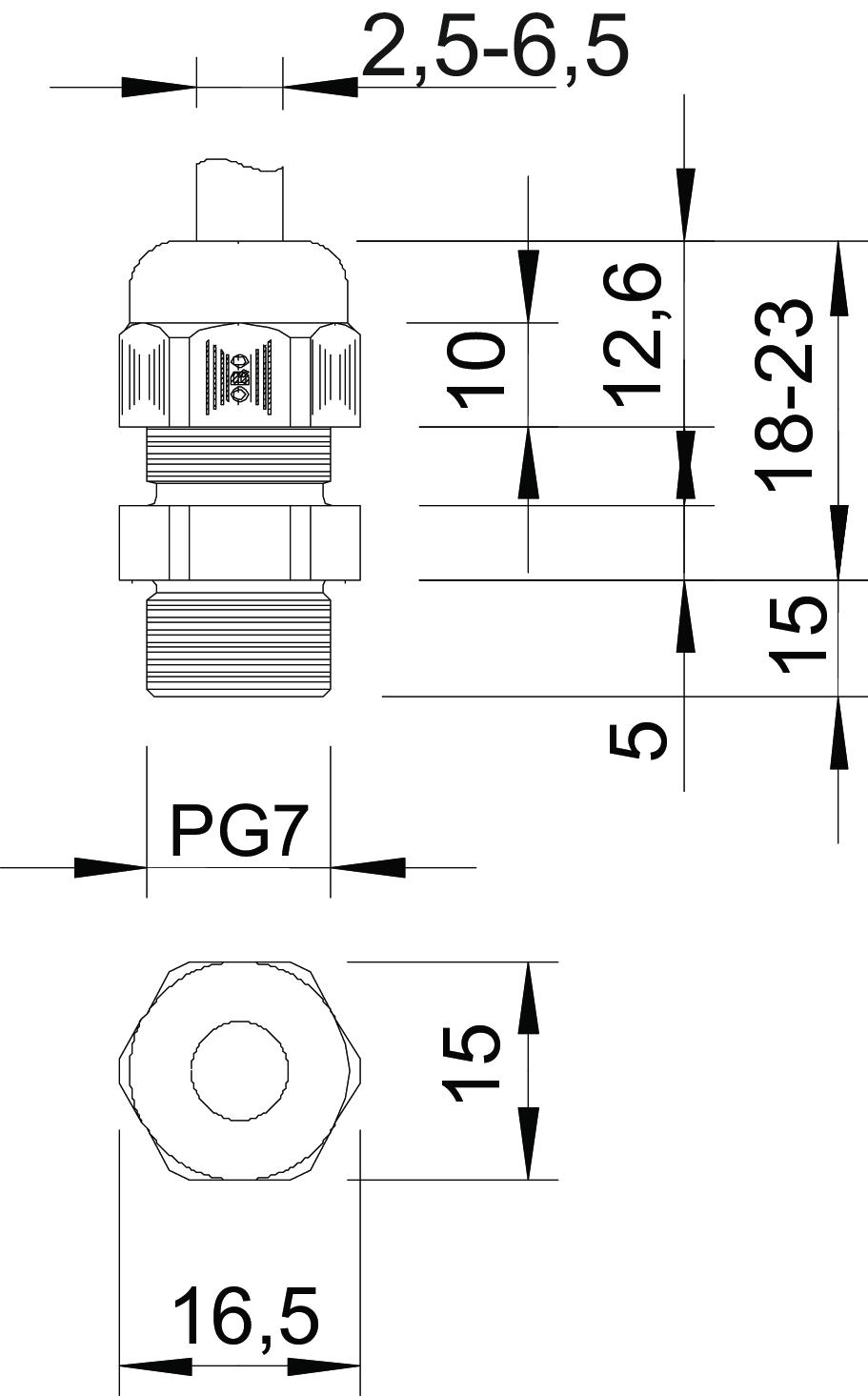

Dimension PG7
Dimension E 16,5 mm
Dimension L max. 23 mm
Dimension L min. 18 mm
Dimension L1 15 mm
Dimension L2 5 mm
Dimension L3 12,6 mm
explosion-proof no
Fibre-glass reinforced no
Flat cable gland no
For Ex zone Without
For Ex zone dust Without
For Ex zone gas Without
Halogen-free yes
Hexagonal corner dimension 16,5 mm
Impact-resistant no
Material Polyamide
Nominal thread size 7
Permitted temperature range, max. 65 °C
Permitted temperature range, min. -20 °C
Protection rating IP68
Sealing area D, max. 6,5 mm
Sealing area D, min. 2,5 mm
Sealing insert, multiple no
Splittable gland no
Strain relief option yes
Thread Pg 7
Thread increase 1,5 mm
Thread length 15 mm
Thread type PG
Type of seal Sealing ring
Unstable torque 1,67 Nm
Version for Straight
WAF 15
With locknut no
All types

All types

Types Thread Sealing insert, multiple Colour Item no. Quantity SSU
V-TEC L PG7 LGR Pg 7 no Light grey; RAL 7035 2024284
50 piece
V-TEC L PG9 LGR Pg 9 no Light grey; RAL 7035 2024292
50 piece
V-TEC L PG11 LGR Pg 11 no Light grey; RAL 7035 2024306
50 piece
V-TEC L PG13 LGR Pg 13,5 no Light grey; RAL 7035 2024314
50 piece
V-TEC L PG16 LGR Pg 16 no Light grey; RAL 7035 2024322
25 piece
V-TEC L PG21 LGR Pg 21 no Light grey; RAL 7035 2024330
25 piece
V-TEC L PG29 LGR Pg 29 no Light grey; RAL 7035 2024349
20 piece
V-TEC L PG36 LGR Pg 36 no Light grey; RAL 7035 2024357
10 piece
V-TEC L PG42 LGR Pg 42 no Light grey; RAL 7035 2024365
5 piece
