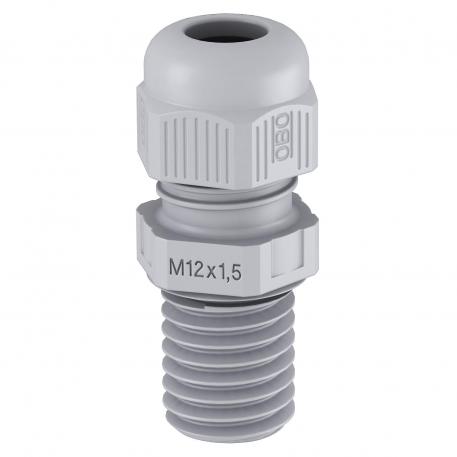

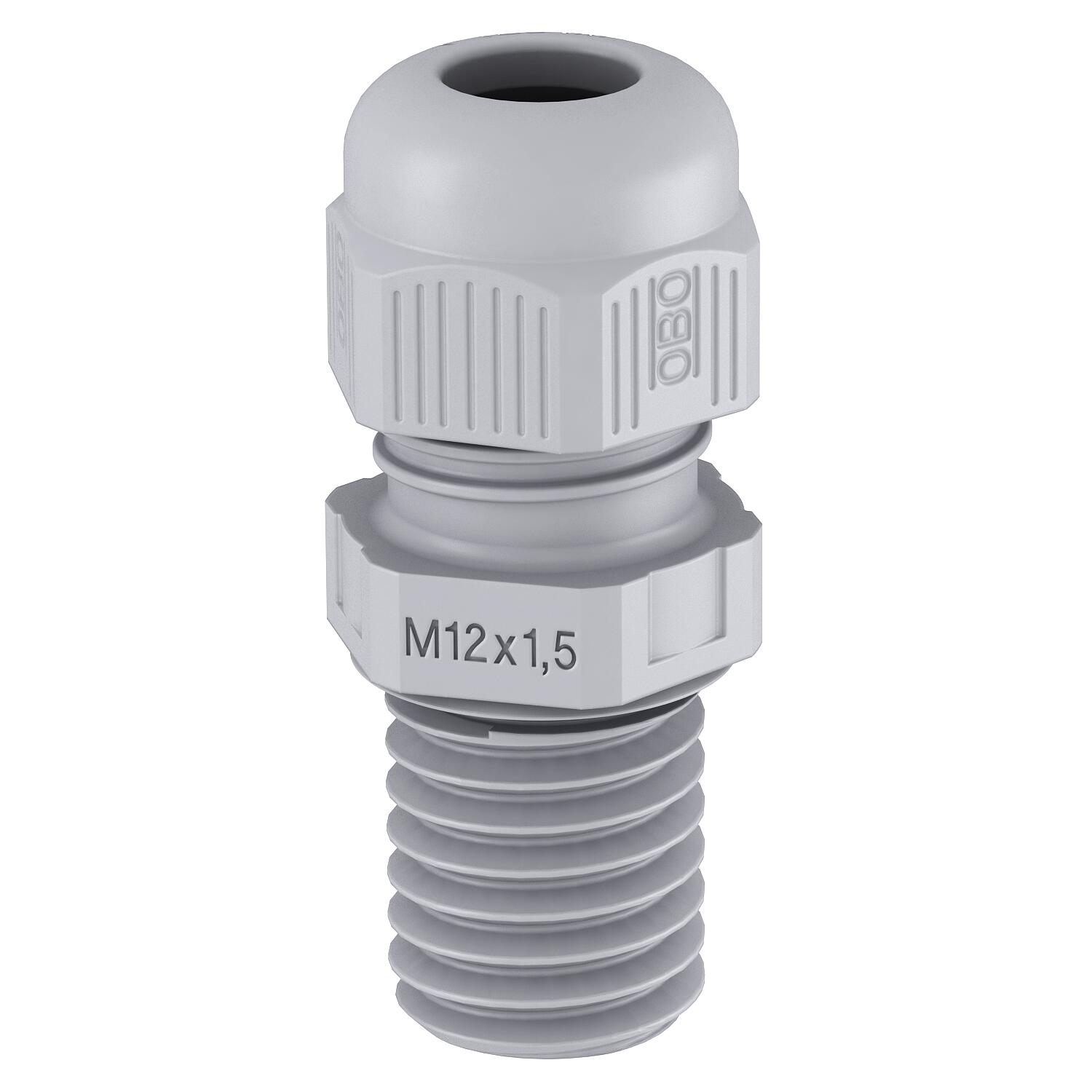

Cable gland, long metric thread, silver grey
Item no. 2022924 | EAN 4012195003823
- Product description
-
Product descriptionCable gland with metric connection thread in cap nut design, suitable for junction boxes, housings, distributor cabinets in private and industrial areas. With strain relief and integrated sealing lip, tested according to DIN EN 62444. Protection class IP68. Can be used between –20°C and +65°C.
-
- Technical data
-
Technical data

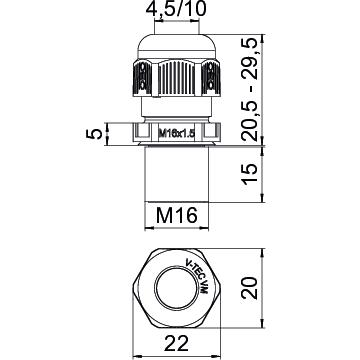

Bend protection no Colour Silver grey; RAL 7001 Dimension M16 Dimension E 22 mm Dimension L max. 29,5 mm Dimension L min. 20,5 mm Dimension L1 15 mm Dimension L2 5 mm explosion-proof no Fibre-glass reinforced no Flame-resistant acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C Flat cable gland no For Ex zone Without For Ex zone dust Without For Ex zone gas Without Halogen-free yes Hexagonal corner dimension 22 mm Impact-resistant no Material Polyamide Nominal thread size 16 Permitted temperature range, max. 65 °C Permitted temperature range, min. -20 °C Protection rating IP68 Sealing area D, max. 10 mm Sealing area D, min. 4,5 mm Sealing insert, multiple no Splittable gland no Strain relief option yes Thread M16 x 1,5 Thread increase 1,5 mm Thread length 15 mm Thread type Metric Type of seal Sealing ring Unstable torque 2,5 Nm Version for Straight WAF 20 With locknut no - All types
-
All types
-
Mounting accessories
Products Types Item no. Quantity SSU

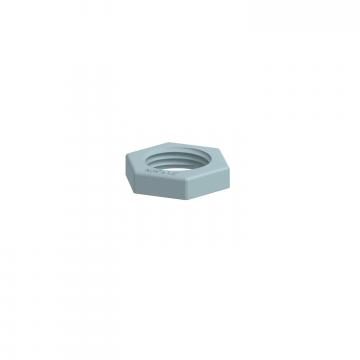

Locknut, metric thread, silver grey
116 M16 SGR PA 2048760 100 piece - Downloads
-
