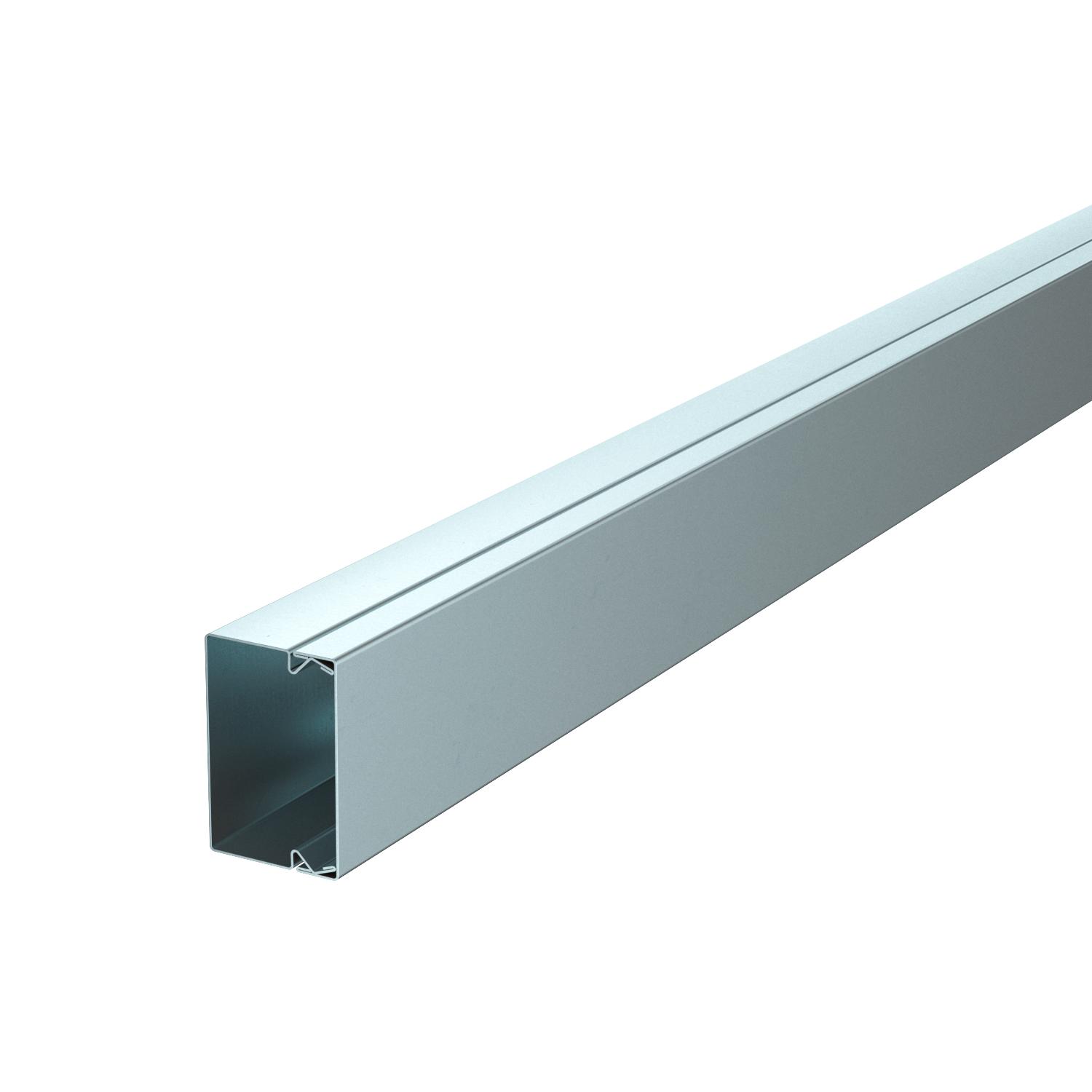

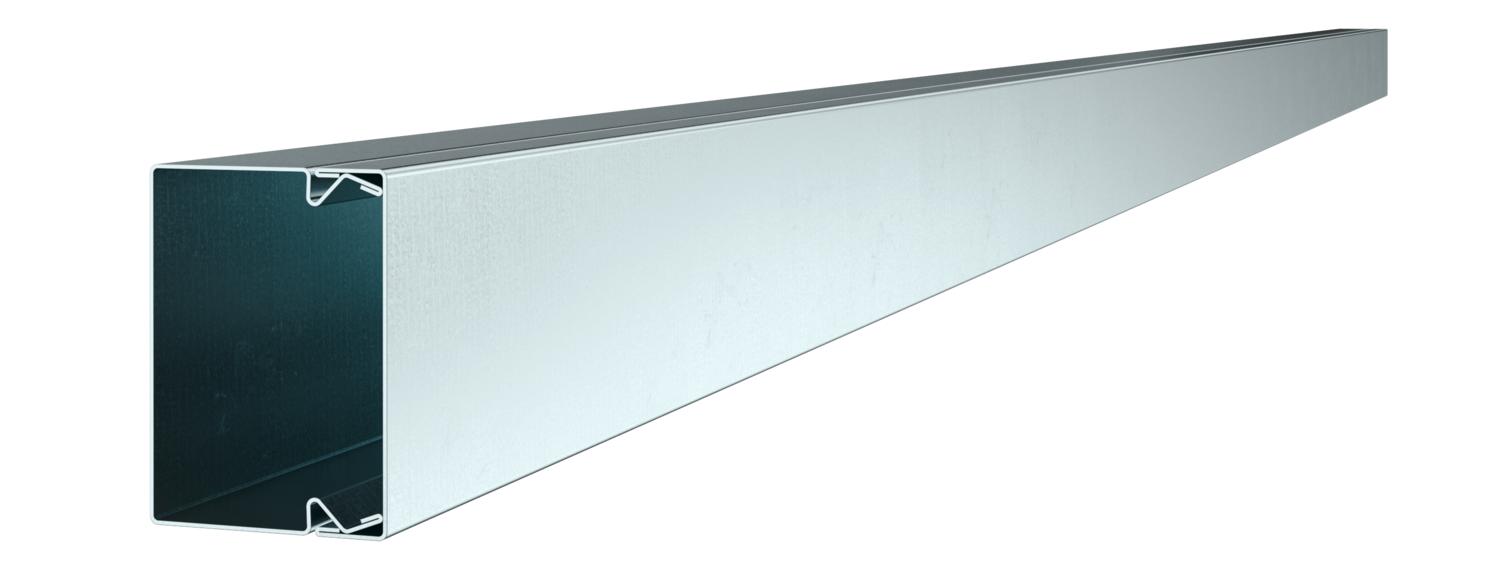

Cable duct, type LKM 40060

Item no. 6247016 | EAN 4012196311897

2000 mm
60 mm
44 mm
Steel
Product description

Product description

Duct cover and base with base perforation.

Equipotential bonding is guaranteed between the cover and the base without any additional aids.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • LKM trunking, trunking depth 40 mm
  • Nail device
Technical data

Technical data

Antibacterial treatment no
Base perforation with base perforation
Cable retaining clip no

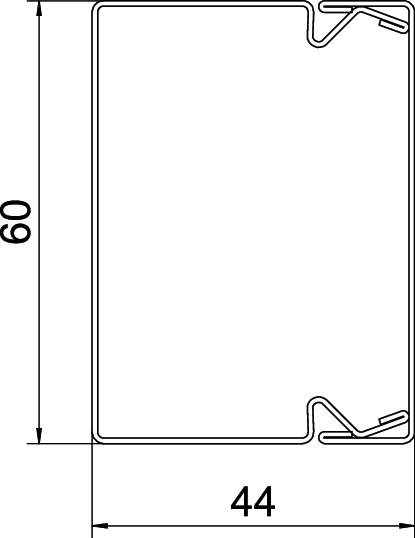

Dimension 40x60x2000
Duct connector no
Fastening type Base perforation
Halogen-free yes
Height 44 mm
Length 2000 mm
Maintain electrical functions no
Material Steel
Permitted temperature range, max. 90 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK10
Protective film no
Surface Strip galvanized
Usable cross-section 2385 mm²
Version, cable trunking cover Loose
Width 60 mm
All types

All types

Types Length Width Height Surface Material Item no. Quantity SSU
LKM40060FS 2000 mm 60 mm 44 mm Strip galvanized Steel 6247016
2 m
LKM40060RW 2000 mm 60 mm 44 mm Strip galvanized / plastic coated Steel 6248519
2 m
Accessories

System accessories

Products Types Item no. Quantity SSU

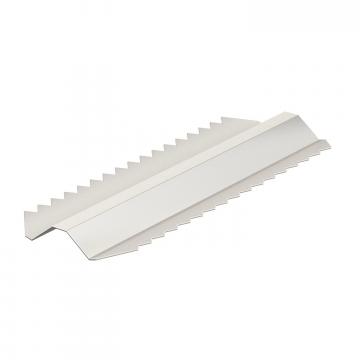

Joint connector LKM SV40 Joint connector LKM SV40 LKM SV40 6247458
10 piece

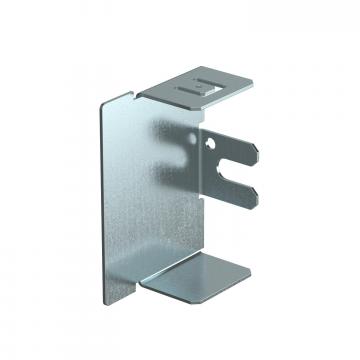

End piece, for cable trunking type LKM 40060 End piece, for cable trunking type LKM 40060 LKM E40060FS 6247903
10 piece

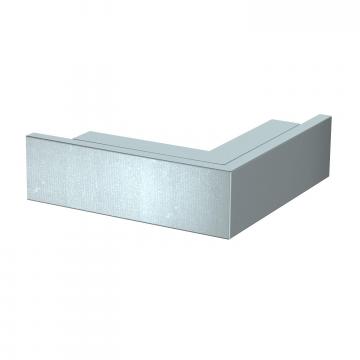

External corner, for cable routing trunking type LKM 40060 External corner, for cable routing trunking type LKM 40060 LKM A40060FS 6247571
1 piece

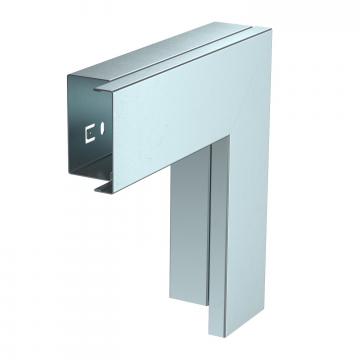

Flat angle, for cable trunking type LKM 40060 Flat angle, for cable trunking type LKM 40060 LKM F40060FS 6247504
1 piece

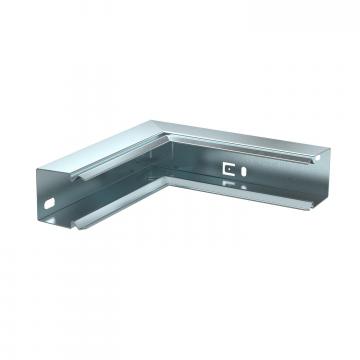

Internal corner, for cable trunking type LKM 40060 Internal corner, for cable trunking type LKM 40060 LKM I40060FS 6247660
1 piece

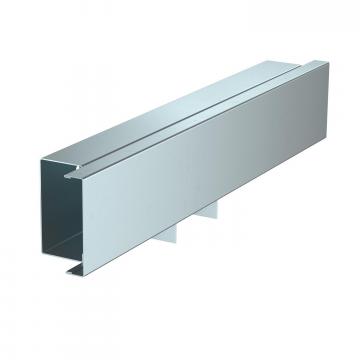

T piece, for cable trunking type LKM 40060 T piece, for cable trunking type LKM 40060 LKM T40060FS 6247733
1 piece
