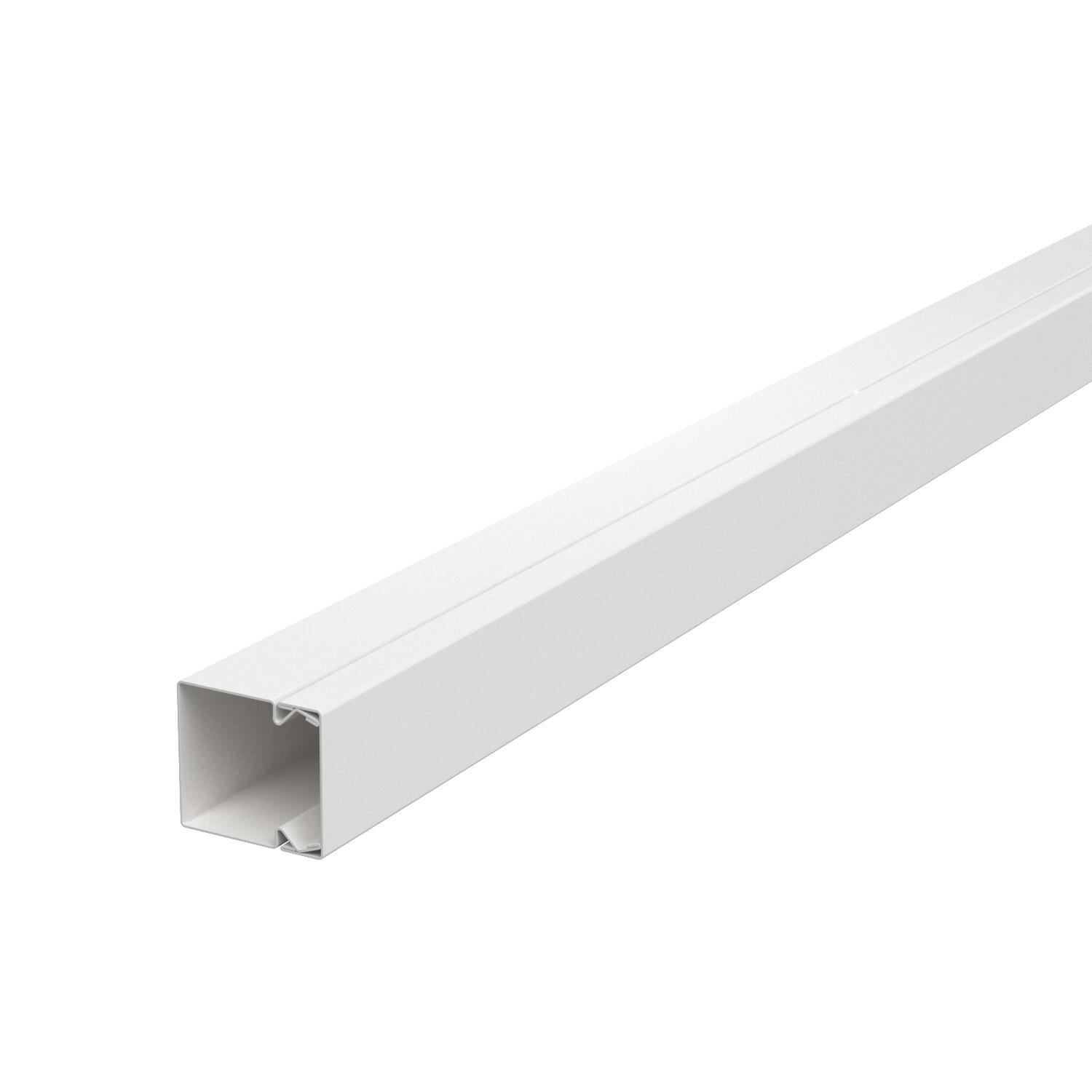

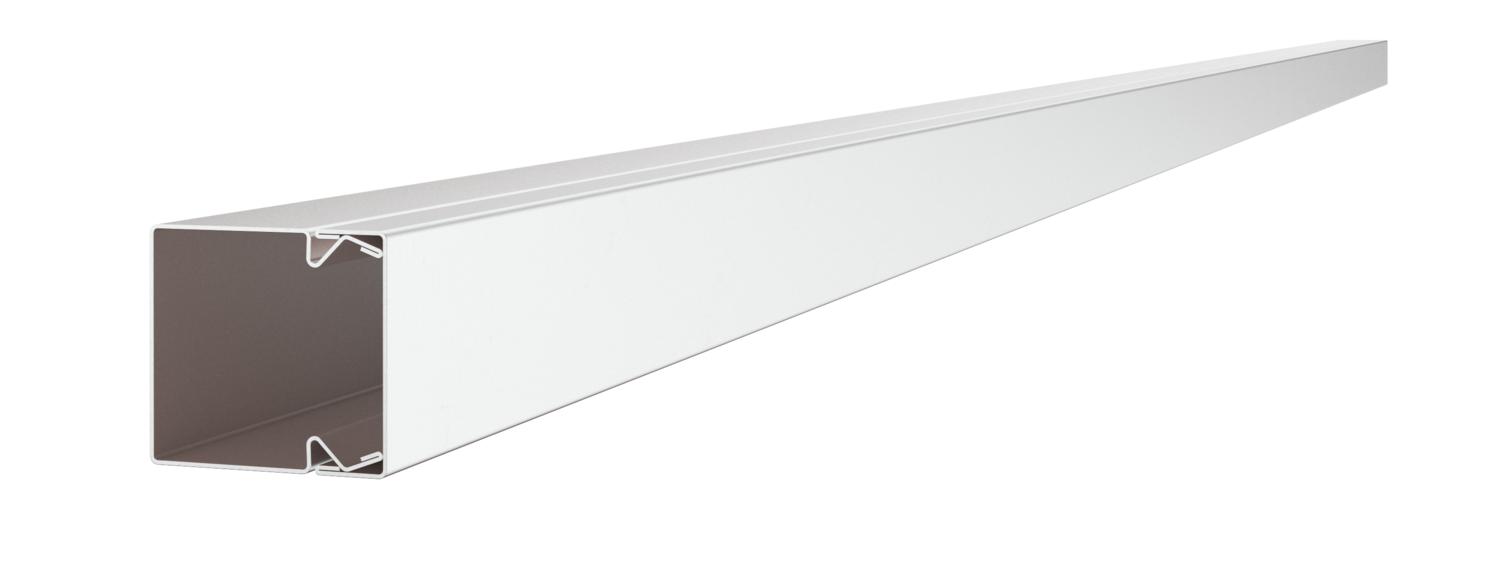

Cable duct, type LKM 40040

Item no. / Types

Length	2000 mm

Width	40 mm

Height	44 mm

Surface

Material	Steel

Product description

Product description

Duct cover and base with base perforation.

Equipotential bonding is guaranteed between the cover and the base without any additional aids.

Technical data

Antibacterial treatment	no
Base perforation	with base perforation
Cable retaining clip	no
Colour	Pure white; RAL 9010

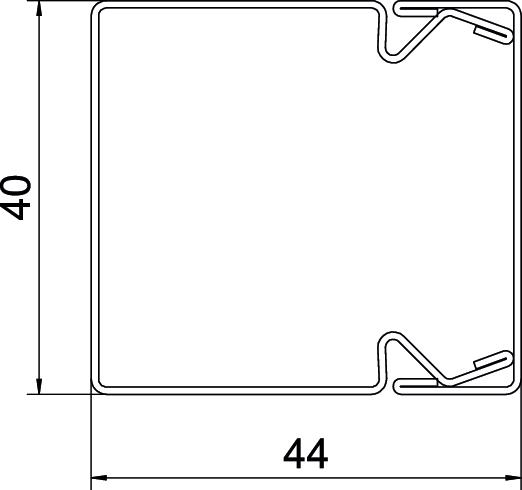

Dimension	40x40x2000
Duct connector	no
Fastening type	Base perforation
Halogen-free	yes
Maintain electrical functions	no

Material	Steel
Permitted temperature range, max.	90 °C
Permitted temperature range, min.	-5 °C
Protection rating	IP30
Protection rating IK code	IK10
Protective film	no
Surface	Strip galvanized / plastic coated
Usable cross-section	1345 mm²
Version, cable trunking cover	Loose

Height	44 mm
Length	2000 mm

Width	40 mm

All types

Types	Length	Width	Height	Surface	Material	Item no.	Quantity	SSU
LKM40040FS	2000 mm	40 mm	44 mm	Strip galvanized	Steel	6246990	m	2 m
LKM40040RW	2000 mm	40 mm	44 mm	Strip galvanized / plastic coated	Steel	6248497	m	2 m

Accessories

Products	Types	Item no.	Quantity	SSU
Joint connector LKM SV40	LKM SV40	6247458	piece	10 piece
Edge protection ring KSR 40040, for LKM cable duct type 40040	LKM KSR40040	6249748	piece	5 piece

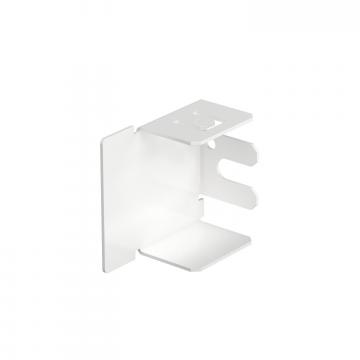

End piece, for cable trunking type LKM 40040	LKM E40040RW	6249418	piece	10 piece
End piece, for cable trunking type LKM 40040	LKM EK40040	6249778	piece	5 piece

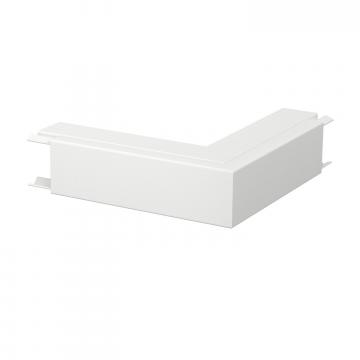

External corner, for cable trunking type LKM 40040	LKM A40040RW	6249086	piece	1 piece
Flat angle, for cable trunking type LKM 40040	LKM F40040RW	6248993	piece	1 piece

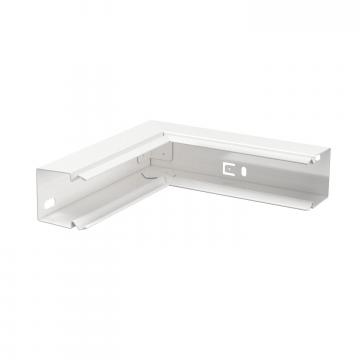

Internal corner, for cable trunking type LKM 40040	LKM I40040RW	6249167	piece	1 piece

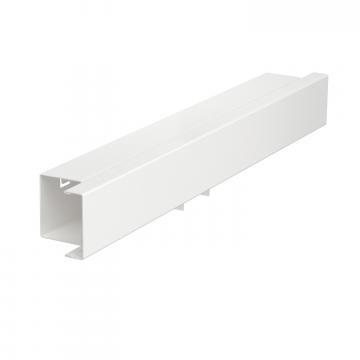

T piece, for cable trunking type LKM 40040	LKM T40040RW	6249256	piece	1 piece
