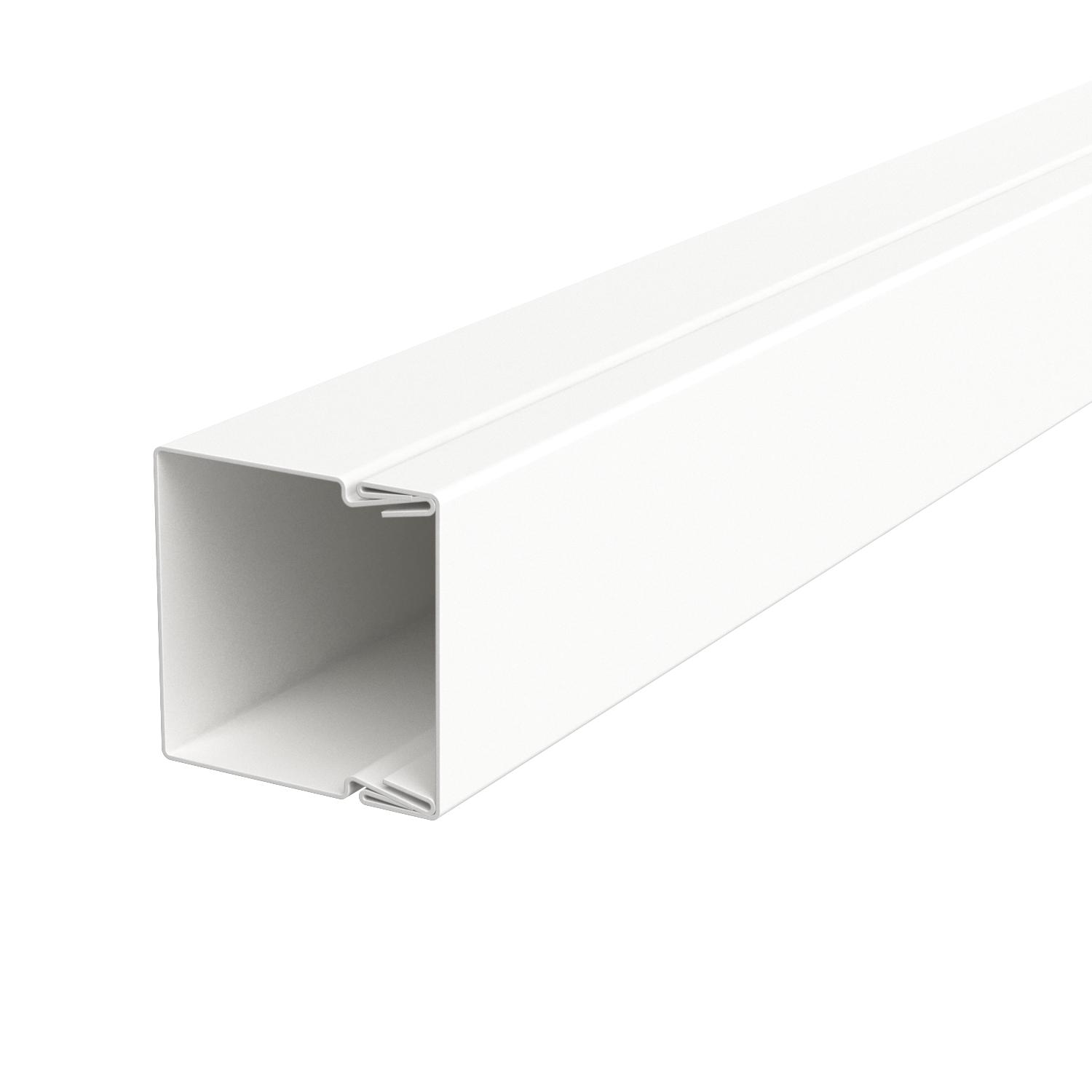

Cable duct, type LKM 30030
Item no. 6248489 | EAN 4012196746873
- Product description
-
Product descriptionDuct cover and base with base perforation.
Equipotential bonding is guaranteed between the cover and the base without any additional aids.
-
- Technical data
-
Technical data

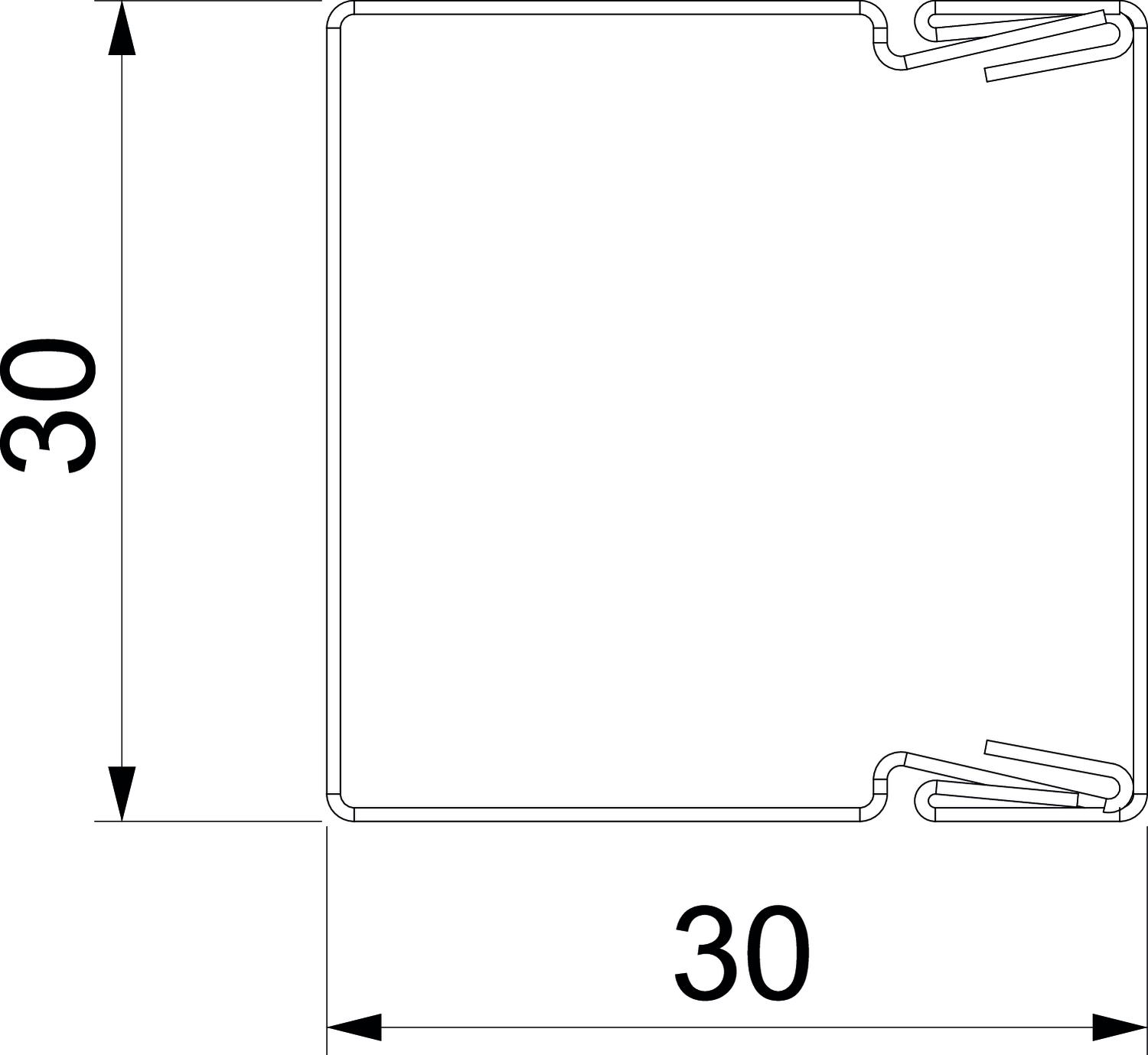

Antibacterial treatment no Base perforation with base perforation Cable retaining clip no Colour Pure white; RAL 9010 CO₂ Footprint (GWP) Cradle-to-Gate 1,435 kg CO₂e / 1 Meter Dimension 30x30x2000 Duct connector no Fastening type Base perforation Halogen-free yes Height 30 mm Length 2000 mm Maintain electrical functions no Material Steel Permitted temperature range, max. 90 °C Permitted temperature range, min. -5 °C Protection rating IP30 Protection rating IK code IK10 Protective film no Surface Strip galvanized / plastic coated Usable cross-section 773 mm² Version, cable trunking cover Loose Width 30 mm - All types
-
System accessories
Products Types Item no. Quantity SSU
Joint connector LKM SV30
LKM SV30 6247434 10 piece
Edge protection ring KSR 30030, for LKM cable duct type 30030
LKM KSR30030 6249746 5 piece - Downloads
-
Data sheet LKM30030RW / 6248489 , 0.25MB , pdfEU declaration of conformity LKM30030RW / 6248489 , 0.15MB , pdfUK Declaration of Conformity LKM30030RW / 6248489 , 0.14MB , pdfREACH Declaration of conformity LKM30030RW / 6248489 , 0.12MB , pdfRoHS Declaration of conformity LKM30030RW / 6248489 , 0.12MB , pdfLabel approval VDE symbol approval LKM , 0.15MB , pdfMounting instructions LKM-Kanal , 0.77MB , pdfNo invitation to tender text is available for this product.
