Cable duct, type LKM 20030 2000 | 30 | 24 | | Strip galvanized | Steel

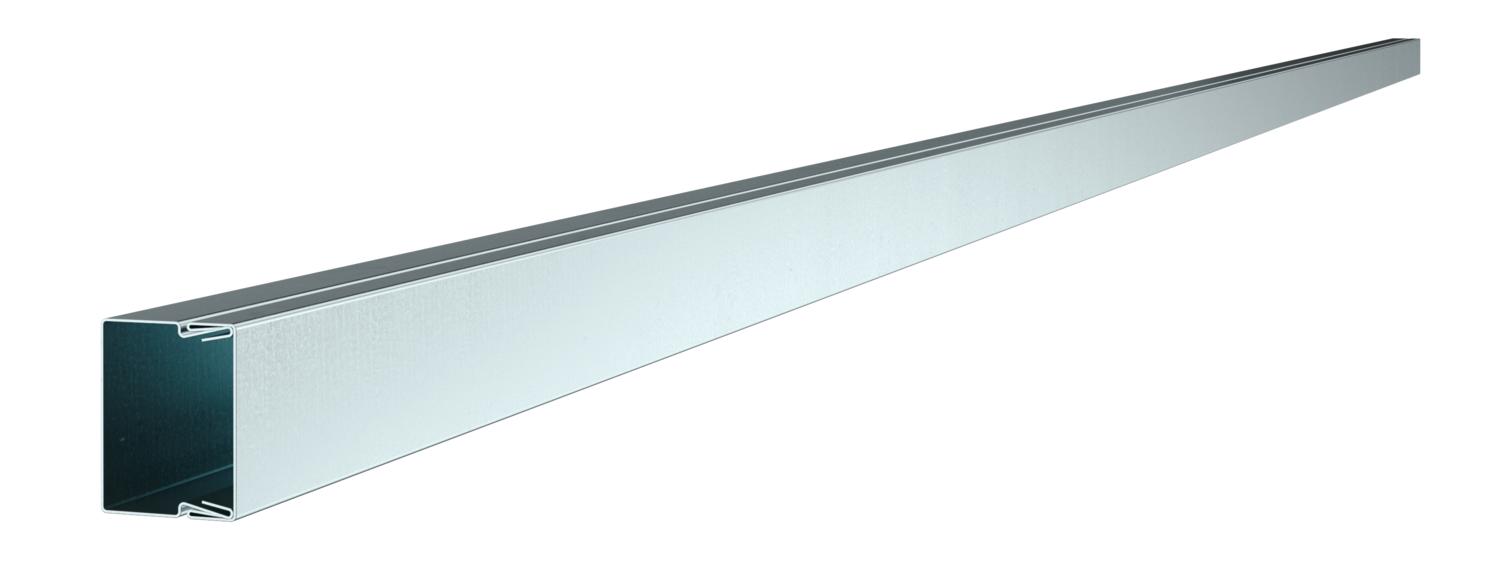

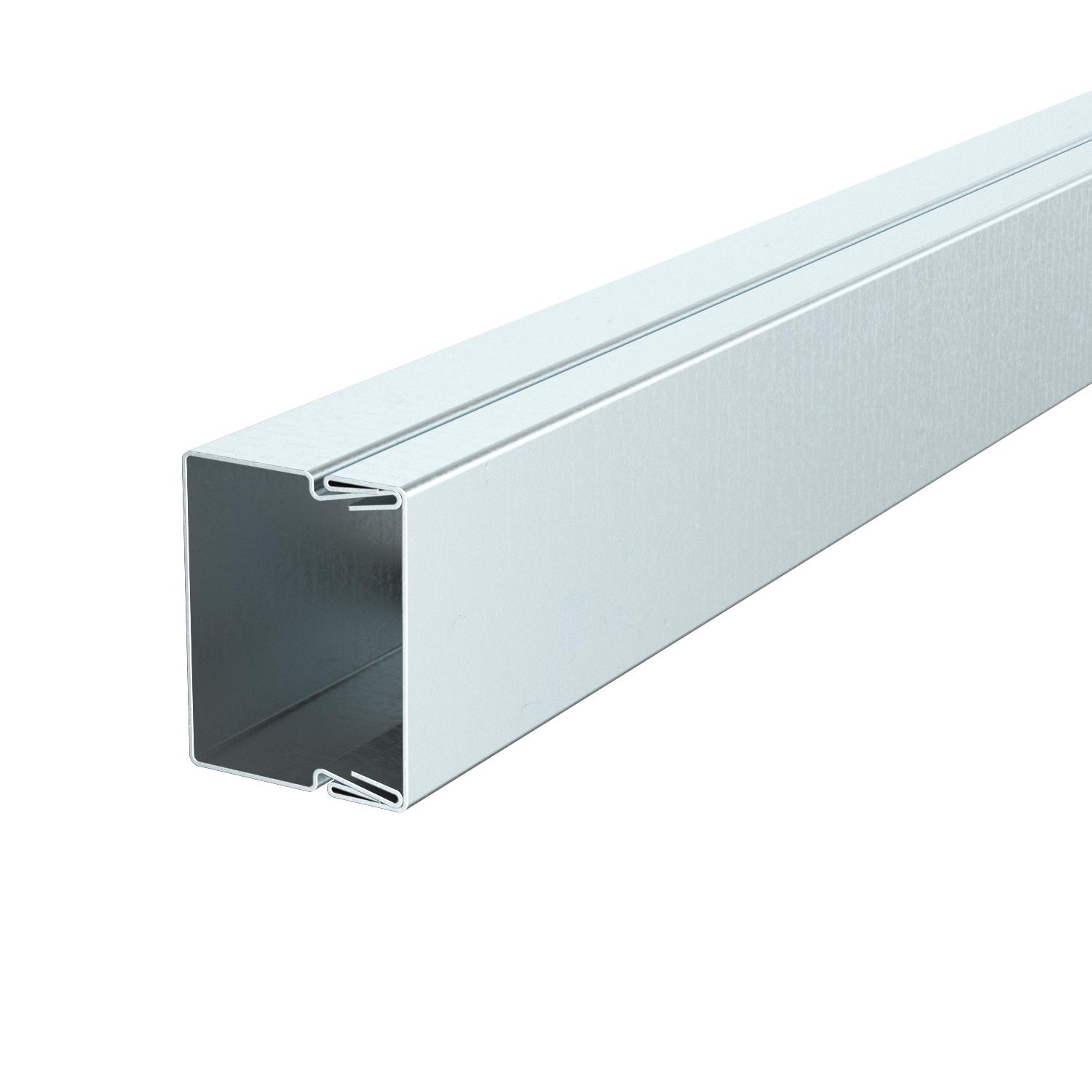

Cable duct, type LKM 20030

Item no. 6246974 | EAN 4012196118878

Item no. / Types

Length	2000 mm

Width	30 mm

Height	24 mm

Surface

Material	Steel

Product description

Product description

Duct cover and base with base perforation. Equipotential bonding is guaranteed between the cover and the base without any additional aids. The LKM cable duct, type LKM 20030, has been tested for the maintenance of electrical function as a routing system according to DIN 4102 Part 12. Please note the cable types tested in the BSS fire protection systems division!

Technical data

Technical data

Antibacterial treatment	no
Base perforation	with base perforation
Cable retaining clip	no
Dimension	20x30x2000
Duct connector	no
Fastening type	Base perforation
Halogen-free	yes
Maintain electrical functions	yes
Material	Steel

Permitted temperature range, max.	90 °C
Permitted temperature range, min.	-5 °C
Protection rating	IP30
Protection rating IK code	IK10
Protective film	no
Surface	Strip galvanized
Usable cross-section	519 mm²
Version, cable trunking cover	Loose

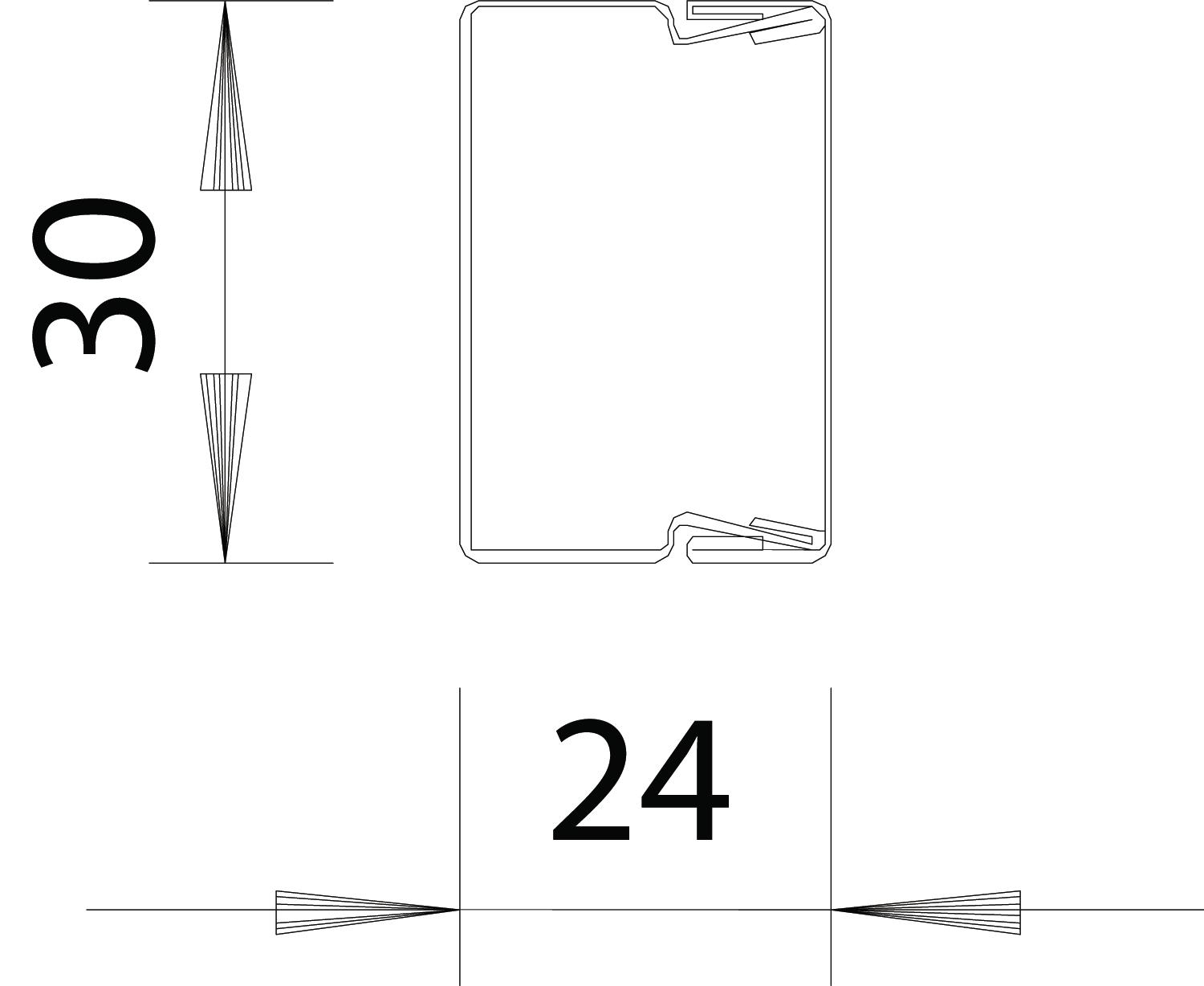

Dimensions

Height	24 mm
Length	2000 mm

Width	30 mm

All types

All types

Types	Length	Width	Height	Surface	Material	Item no.	Quantity	SSU
LKM20030FS	2000 mm	30 mm	24 mm	Strip galvanized	Steel	6246974	m	2 m
LKM20030RW	2000 mm	30 mm	24 mm	Strip galvanized / plastic coated	Steel	6248470	m	2 m

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
Joint connector LKM SV30	LKM SV30	6247434	piece	10 piece
Edge protection ring KSR 20030, for LKM cable trunking type 20030	LKM KSR20030	6249744	piece	5 piece
End piece, for cable trunking type LKM 20030	LKM EK20030	6249774	piece	5 piece
