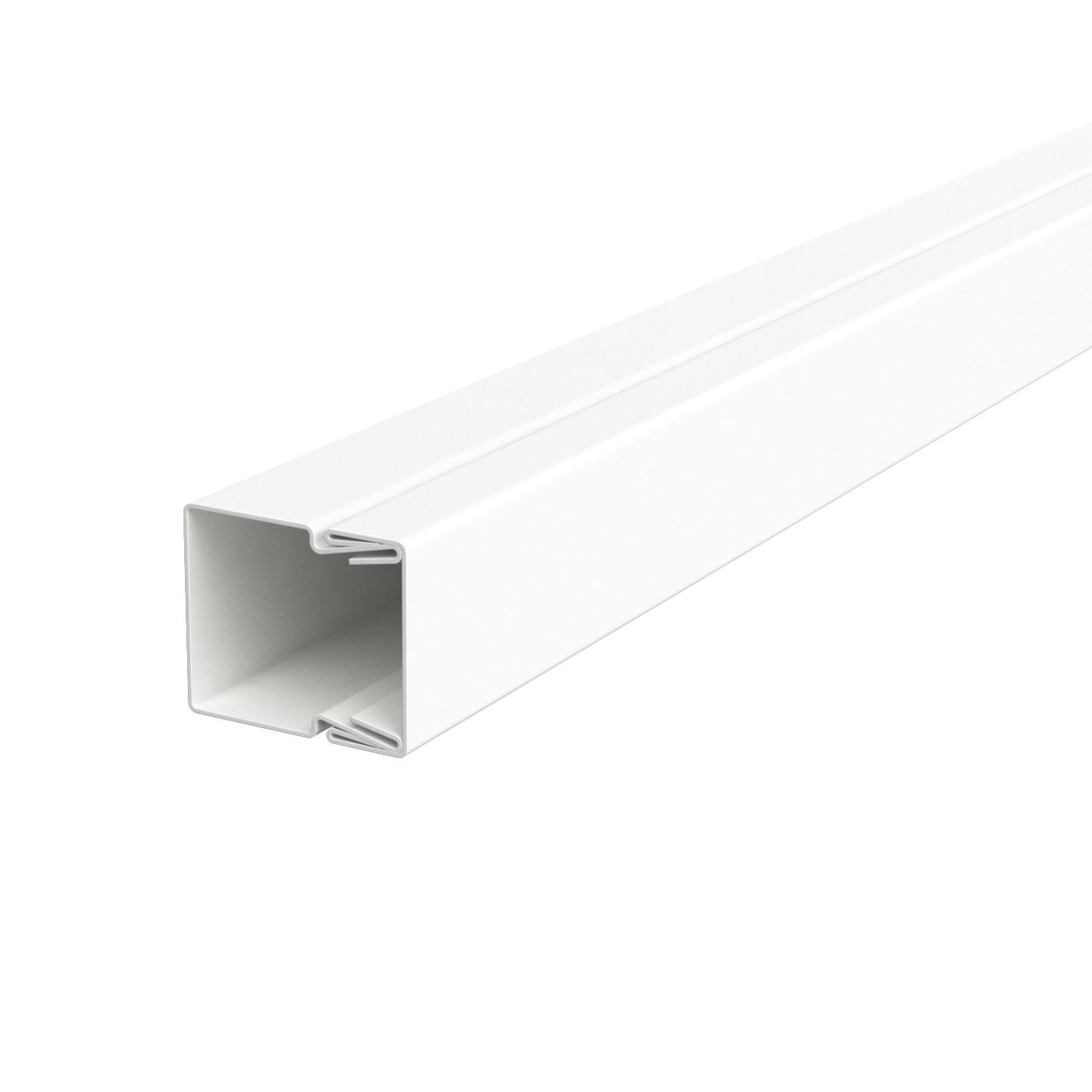

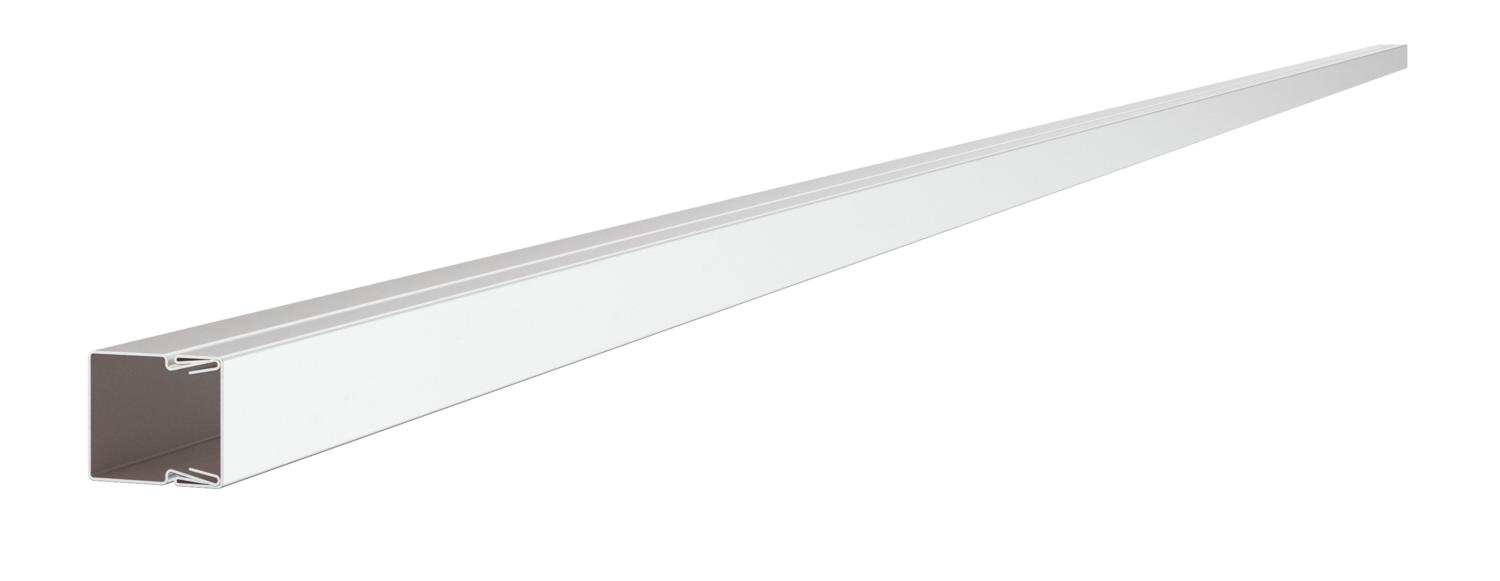

Cable duct, type LKM 20020
Item no. 6248462 | EAN 4012196651795
- Product description
-
Product descriptionDuct cover and base with base perforation.
Equipotential bonding is guaranteed between the cover and the base without any additional aids.
-
- Technical data
-
Technical data

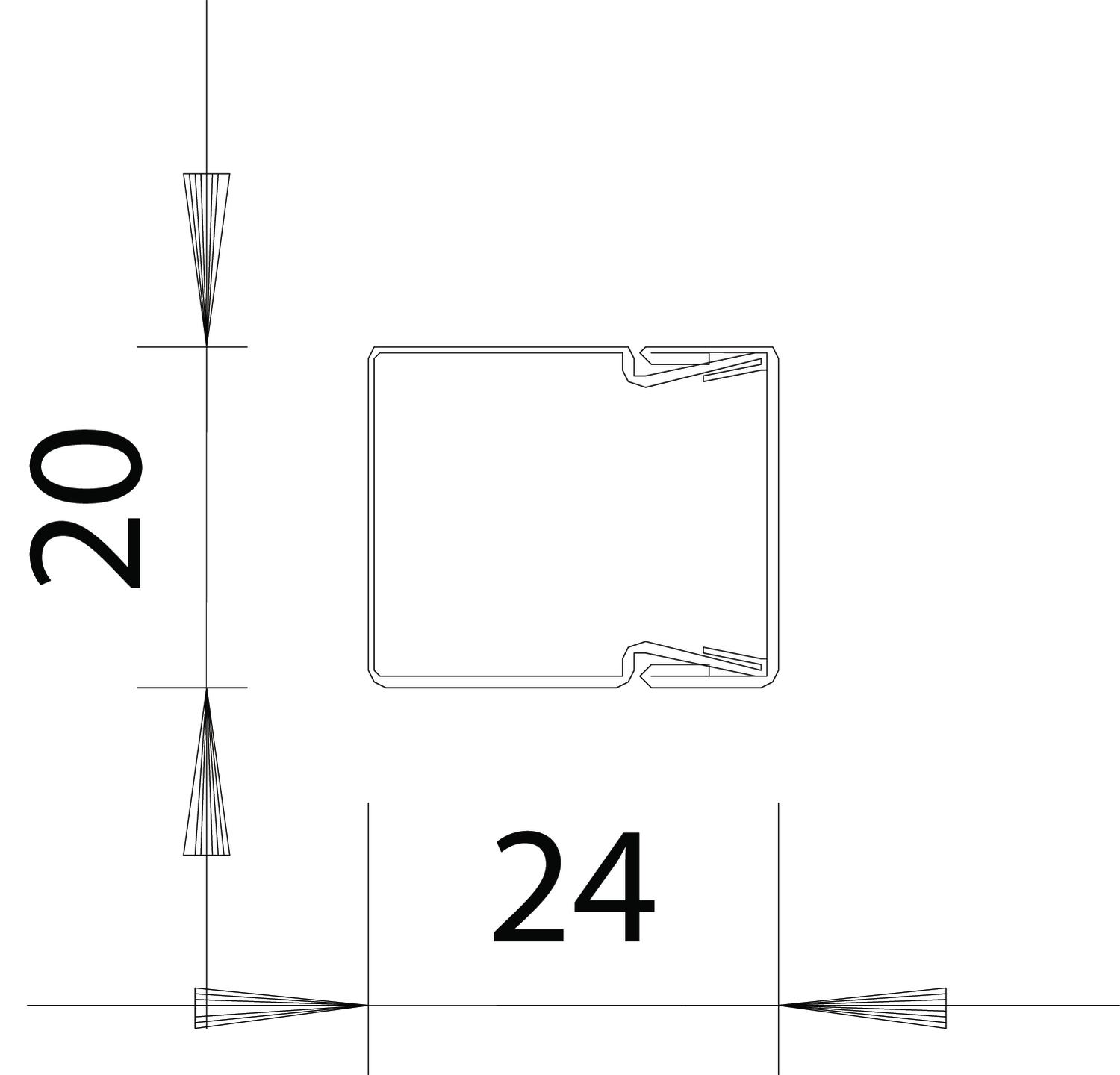

Antibacterial treatment no Base perforation with base perforation Cable retaining clip no Colour Pure white; RAL 9010 CO₂ Footprint (GWP) Cradle-to-Gate 1,119 kg CO₂e / 1 Meter Dimension 20x20x2000 Duct connector no Fastening type Base perforation Halogen-free yes Height 24 mm Length 2000 mm Maintain electrical functions no Material Steel Permitted temperature range, max. 90 °C Permitted temperature range, min. -5 °C Protection rating IP30 Protection rating IK code IK10 Protective film no Surface Strip galvanized / plastic coated Usable cross-section 171 mm² Version, cable trunking cover Loose Width 20 mm - All types
-
System accessories
Products Types Item no. Quantity SSU
Joint connector LKM SV20
LKM SV20 6247431 10 piece - Downloads
-
Data sheet LKM20020RW / 6248462 , 0.20MB , pdfBrochure LKM cable trunking , 2.10MB , pdfCatalogue Cable routing systems , 17.62MB , pdfEU declaration of conformity LKM20020RW / 6248462 , 0.15MB , pdfUK Declaration of Conformity LKM20020RW / 6248462 , 0.14MB , pdfREACH Declaration of conformity LKM20020RW / 6248462 , 0.12MB , pdfRoHS Declaration of conformity LKM20020RW / 6248462 , 0.12MB , pdfLabel approval VDE symbol approval LKM , 0.15MB , pdfMounting instructions LKM-Kanal , 0.77MB , pdf
