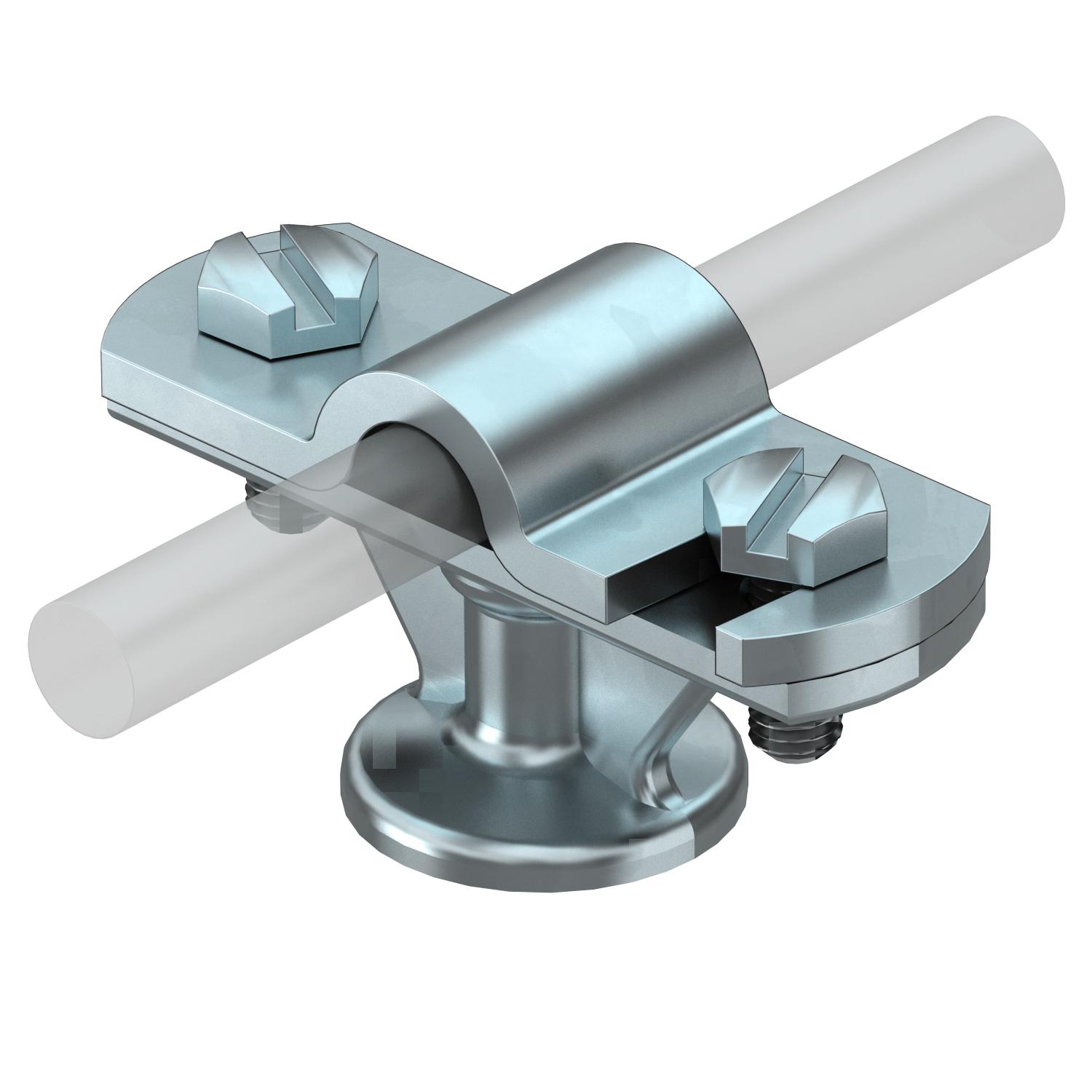

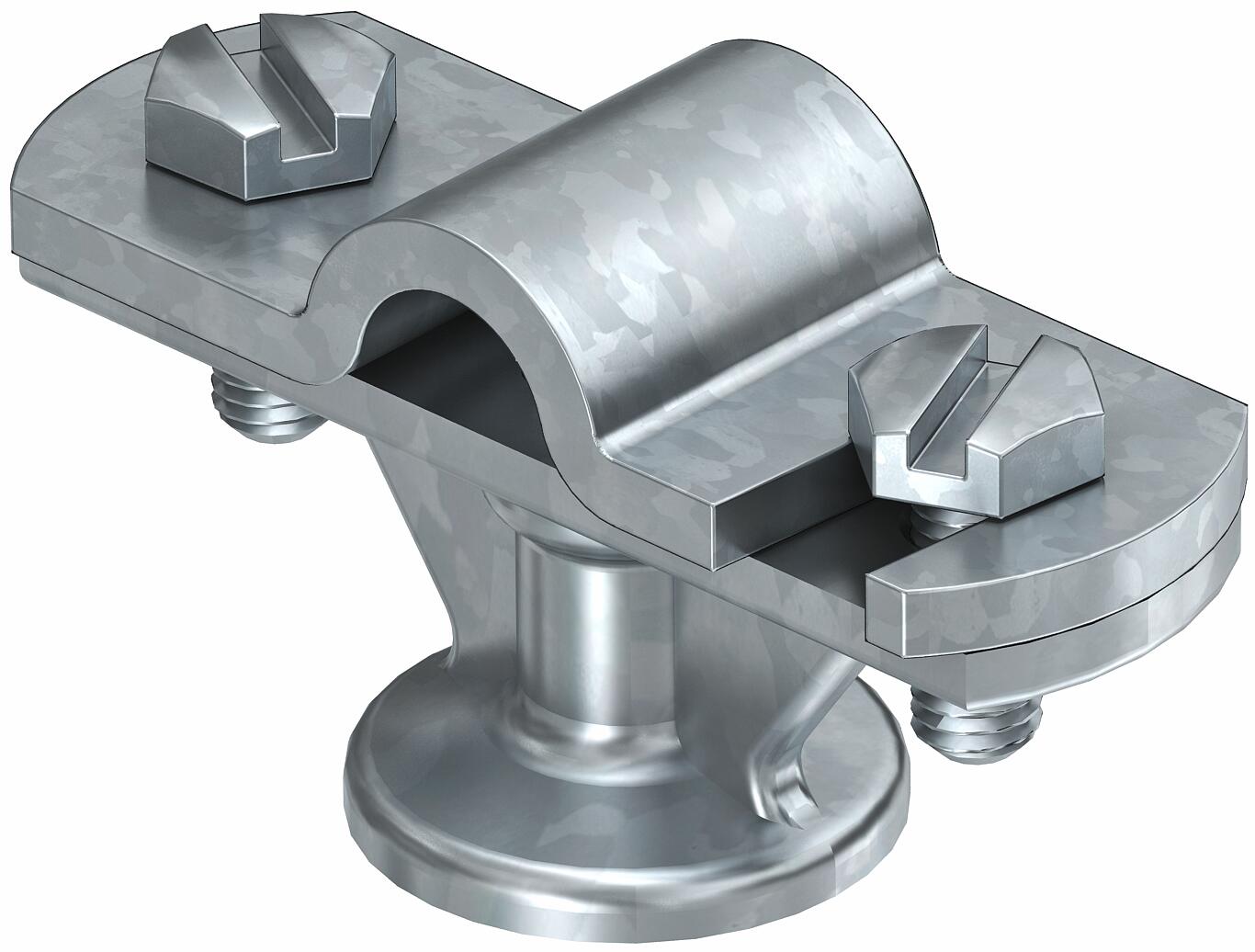

Cable bracket with hinged crossbar Rd 8−10 mm

Item no. 5229961 | EAN 4012195840886

5229961 / 113 Z-K 8-10
8−10 mm round
Product description

Product description

• With female thread M8 or through hole Ø 7 mm
• Hinge crossbar for quick swivel mounting
• Crossbar mounted with 2 hexagonal bolts
Technical data

Technical data

Cable dimensions 8−10 mm round
Conductor fastening type With screw clip
Dimension 8-10mm
High voltage-resistant, insulated version no
Holder fastening type Drill hole with M-thread
Material Die-cast zinc
Material of the base Die-cast zinc
Material of the crossbar Die-cast zinc
Material of the holder Die-cast zinc
Surface Electrogalvanized
Thread metric 8
Use in Ex area yes
All types

All types

Types Cable dimensions Item no. Quantity SSU
113 Z-K 8-10 8−10 mm round 5229961
20 piece
