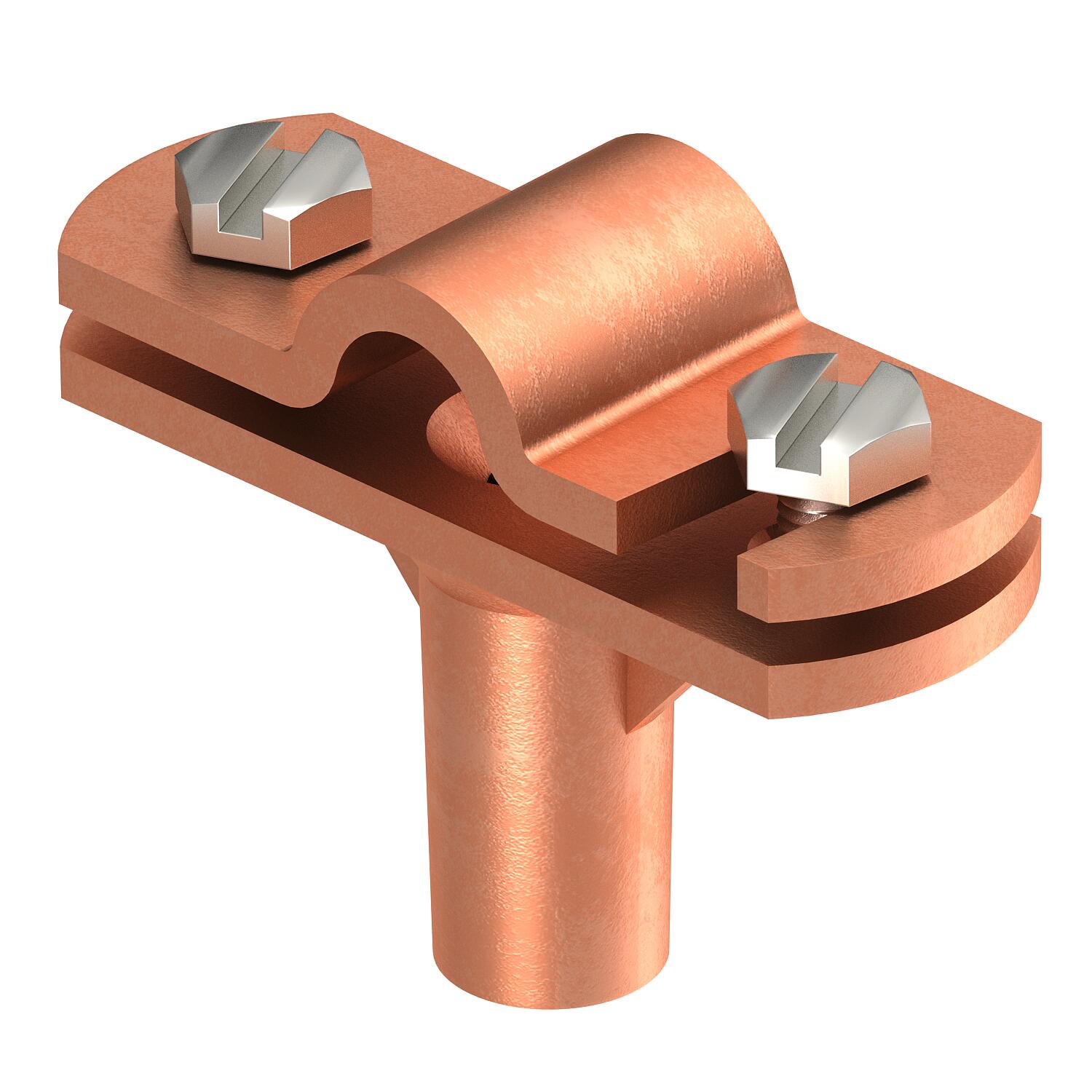

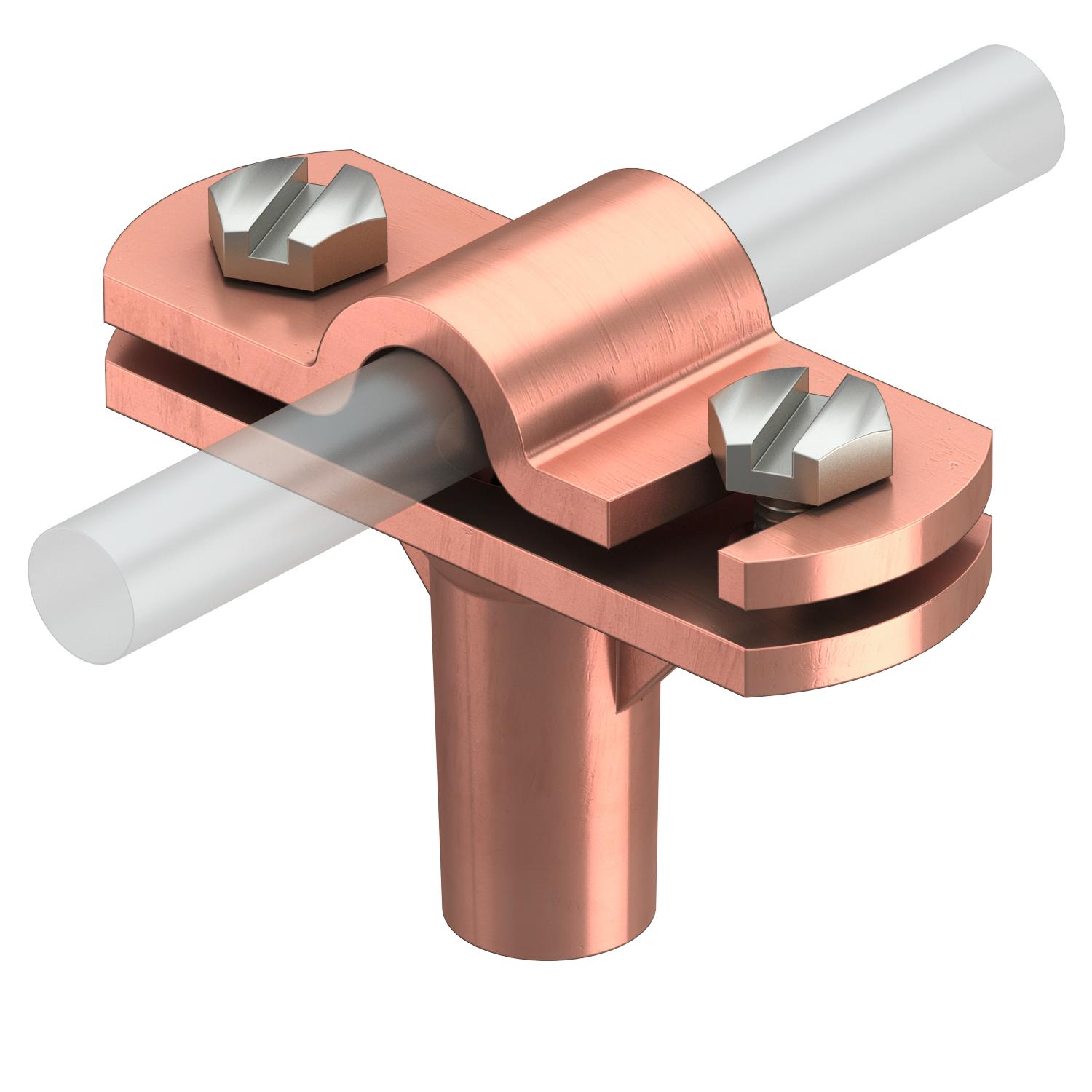

Cable bracket with hinged crossbar

Item no. 5229367 | EAN 4012195411550

8−10 mm round
Product description

Product description

• With female thread (G)
• With over-piece and 2 hexagonal bolts

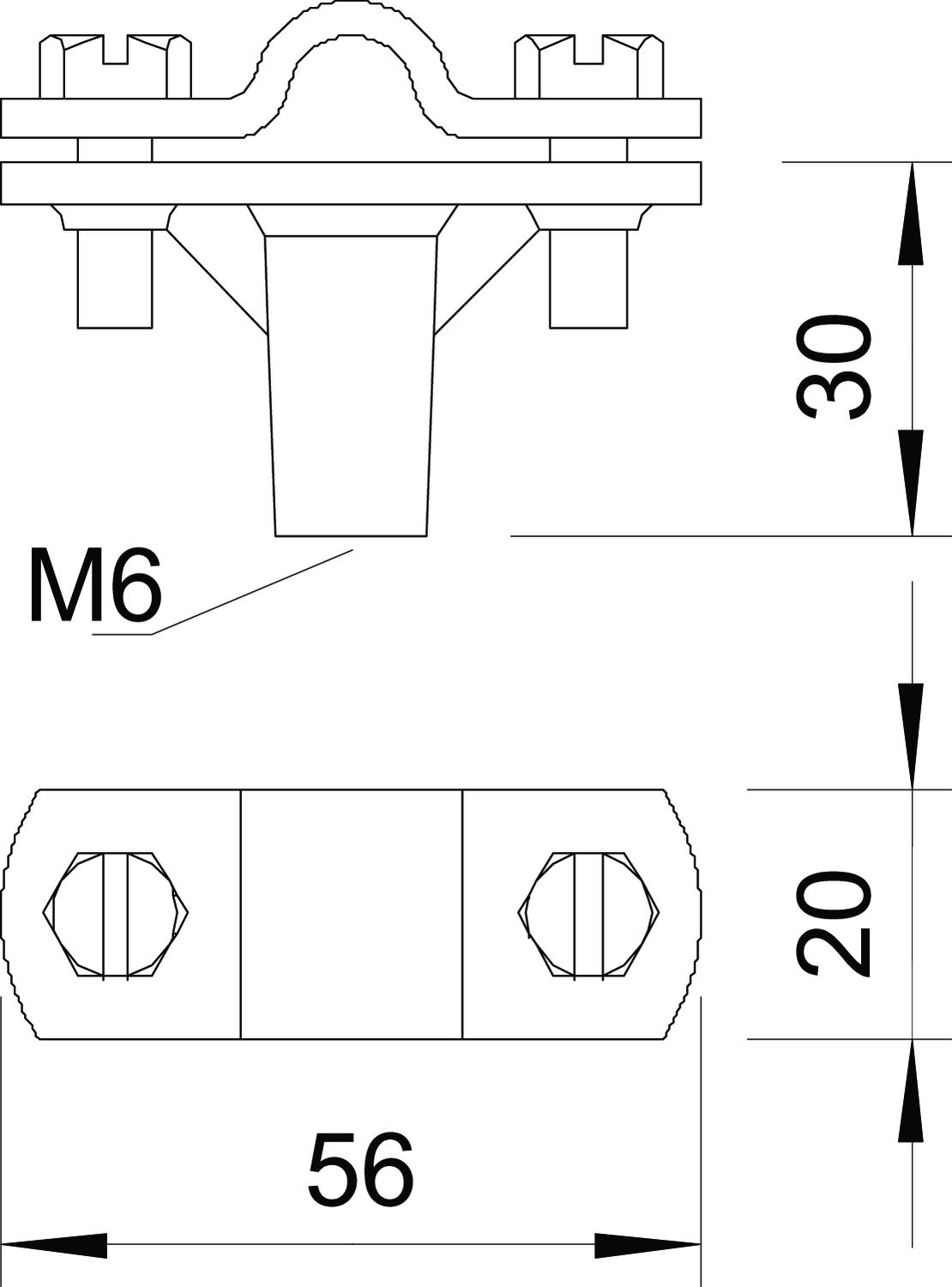

• Installed height 30 mm
Technical data

Technical data

Cable dimensions 8−10 mm round
Conductor fastening type With screw clip
Dimension 8-10mm
High voltage-resistant, insulated version no
Holder fastening type Drill hole with M-thread
Material Die-cast zinc
Material of the base Die-cast zinc
Material of the crossbar Die-cast zinc
Material of the holder Die-cast zinc
Surface Copper-plated
Thread M6
Thread metric 6
Use in Ex area yes
All types

All types

Types Cable dimensions Item no. Quantity SSU
168 ZN-M6 8−10 mm round 5229367
20 piece
168 DIN-K-M8 8−10 mm round 5229383
20 piece
