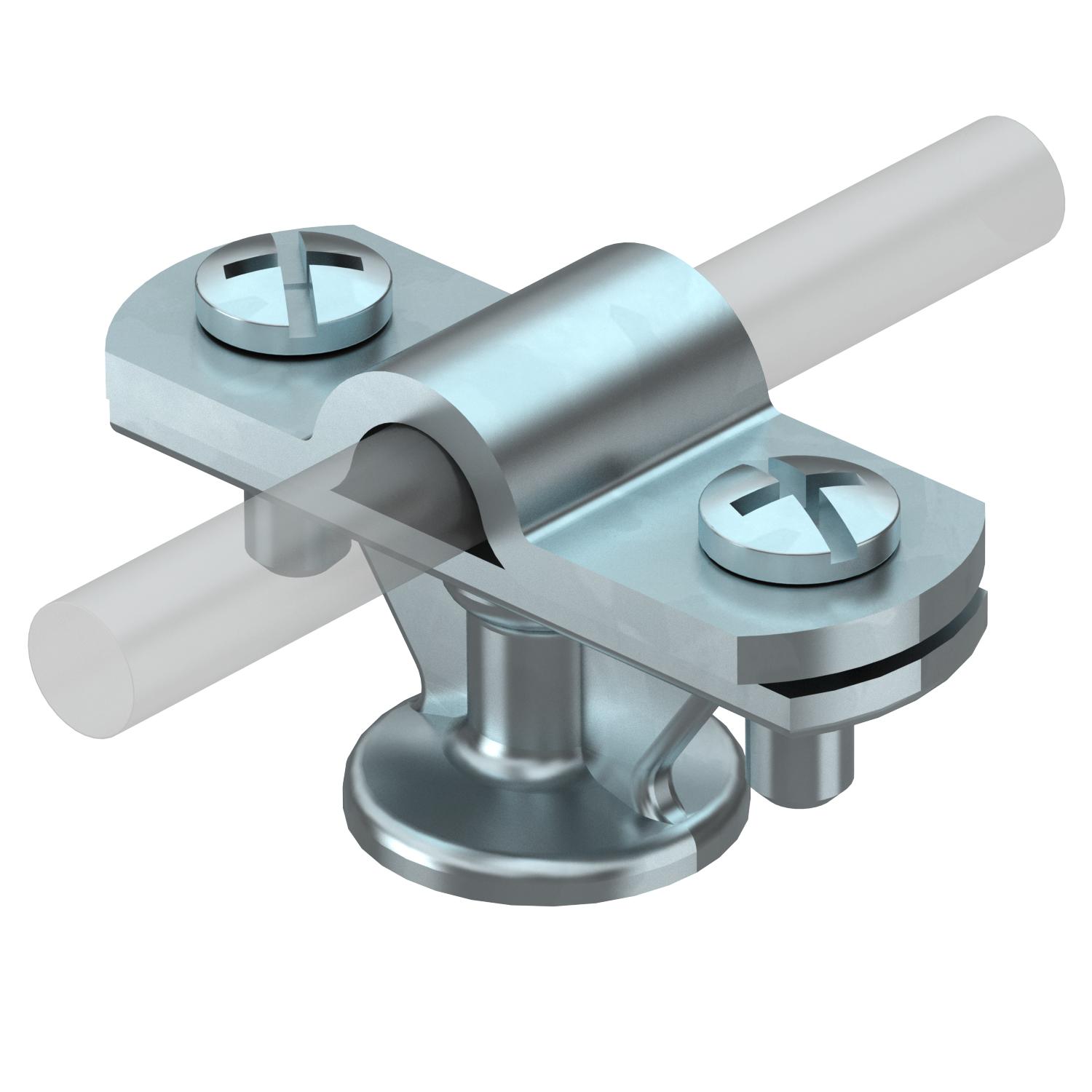

Cable bracket with crossbar Rd 8−10 mm
Item no. 5229960 | EAN 4012195412212
- Product description
-
Product description• With female thread M8 or through hole Ø 7 mm
• Over-piece installed with 2 hexagonal bolts
• Version HD with wood screws (5 x 60) and plastic dowels (8 x 40)
- Technical data
-
Technical data
Cable dimensions 8−10 mm round Conductor fastening type With screw clip Dimension 8-10mm High voltage-resistant, insulated version no Holder fastening type Drill hole with M-thread Material Die-cast zinc Material of the base Die-cast zinc Material of the crossbar Die-cast zinc Material of the holder Die-cast zinc Surface Electrogalvanized Thread metric 8 Use in Ex area yes - All types
- Downloads
-
Data sheet 113 Z8-10 / 5229960 , 0.19MB , pdfEU declaration of conformity 113 Z8-10 / 5229960 , 0.06MB , pdfREACH Declaration of conformity 113 Z8-10 / 5229960 , 0.12MB , pdfRoHS Declaration of conformity 113 Z8-10 / 5229960 , 0.13MB , pdf
