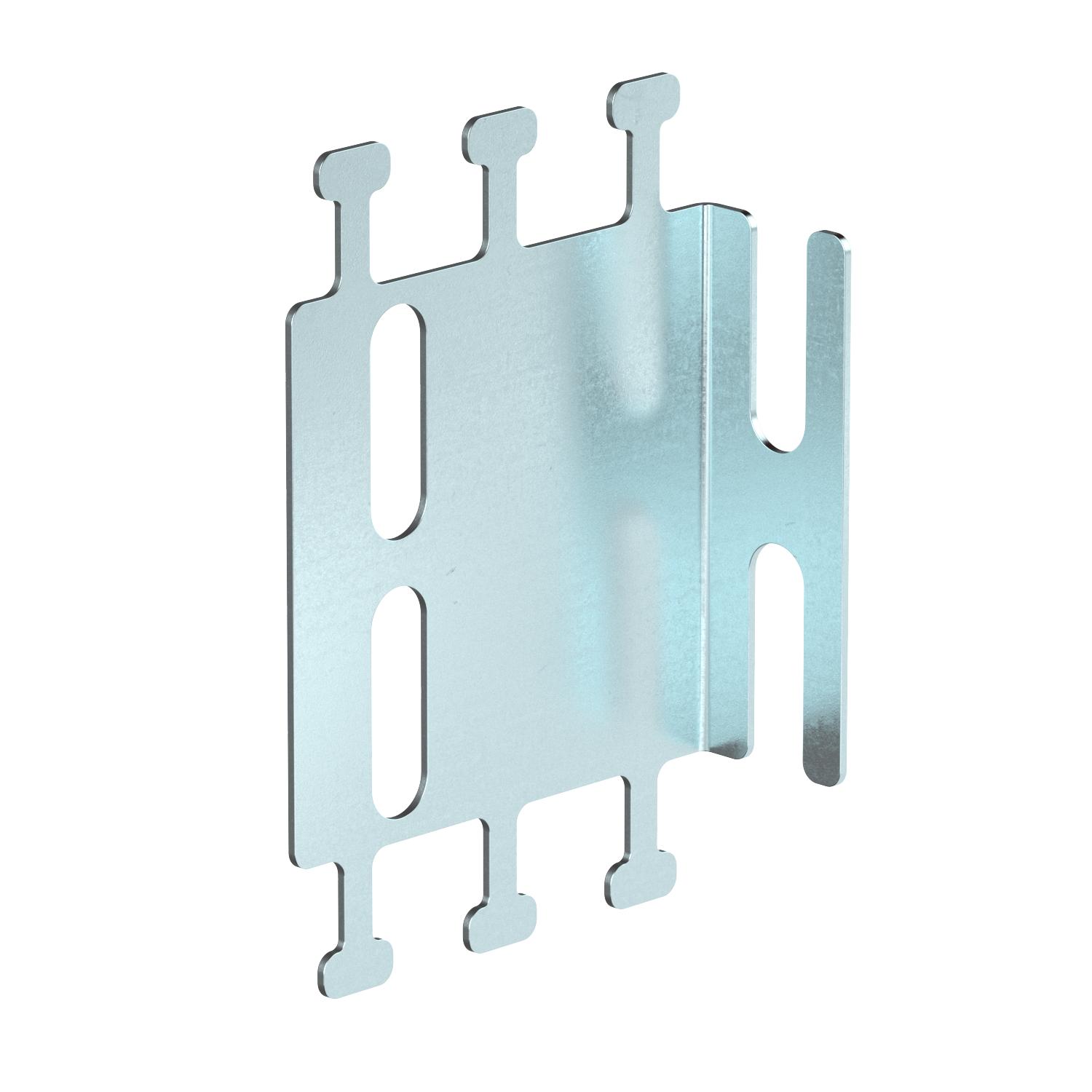

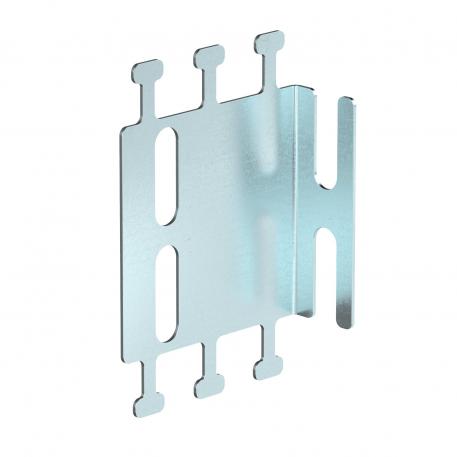

Cable bracket, vertical, for PYROLINE® fire protection ducts, height 60 mm

Item no. 7215292 | EAN 4012196839629

Product description
Product description
Universal cable bracket for the vertical installation of cables in PYROLINE® Con fire protection ducts made of fibreglass-reinforced, lightweight concrete, as well as PYROLINE® Rapid made of sheet steel with an internal coating. The holders are plugged over the head of the loosened fastening screw and then screwed tight to it. The cables can be fastened using cable ties on the lugs or in the slots of the holder. This safely supports the cable weight. Plan at least two cable brackets per metre during installation.
Technical data

Technical data

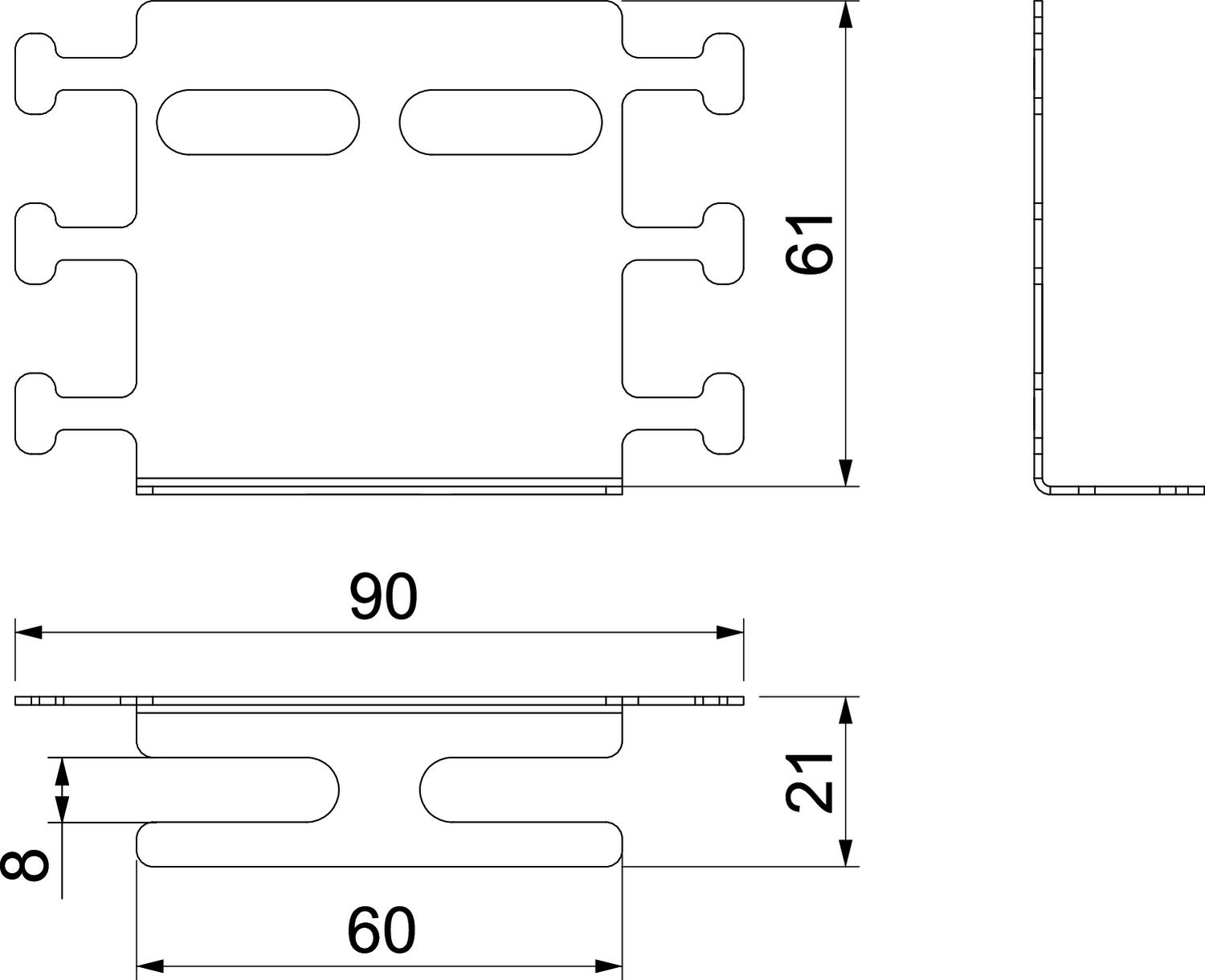

Dimension 60x20
Dimension B 21 mm
Dimension b 8 mm
Dimension H 61 mm
Dimension L 90 mm
Dimension l 60 mm
Height 41 mm
Length 60 mm
Material Steel
Surface Strip galvanized
Type of accessory Miscellaneous
Width 90 mm
All types

All types

Types Length Width Height Item no. Quantity SSU
LHS 20 90 mm 60 mm 21 mm 7215288
10 piece
LHS 40 60 mm 90 mm 41 mm 7215290
10 piece
LHS 60 60 mm 90 mm 41 mm 7215292
10 piece
Downloads

Download

No invitation to tender text is available for this product.
