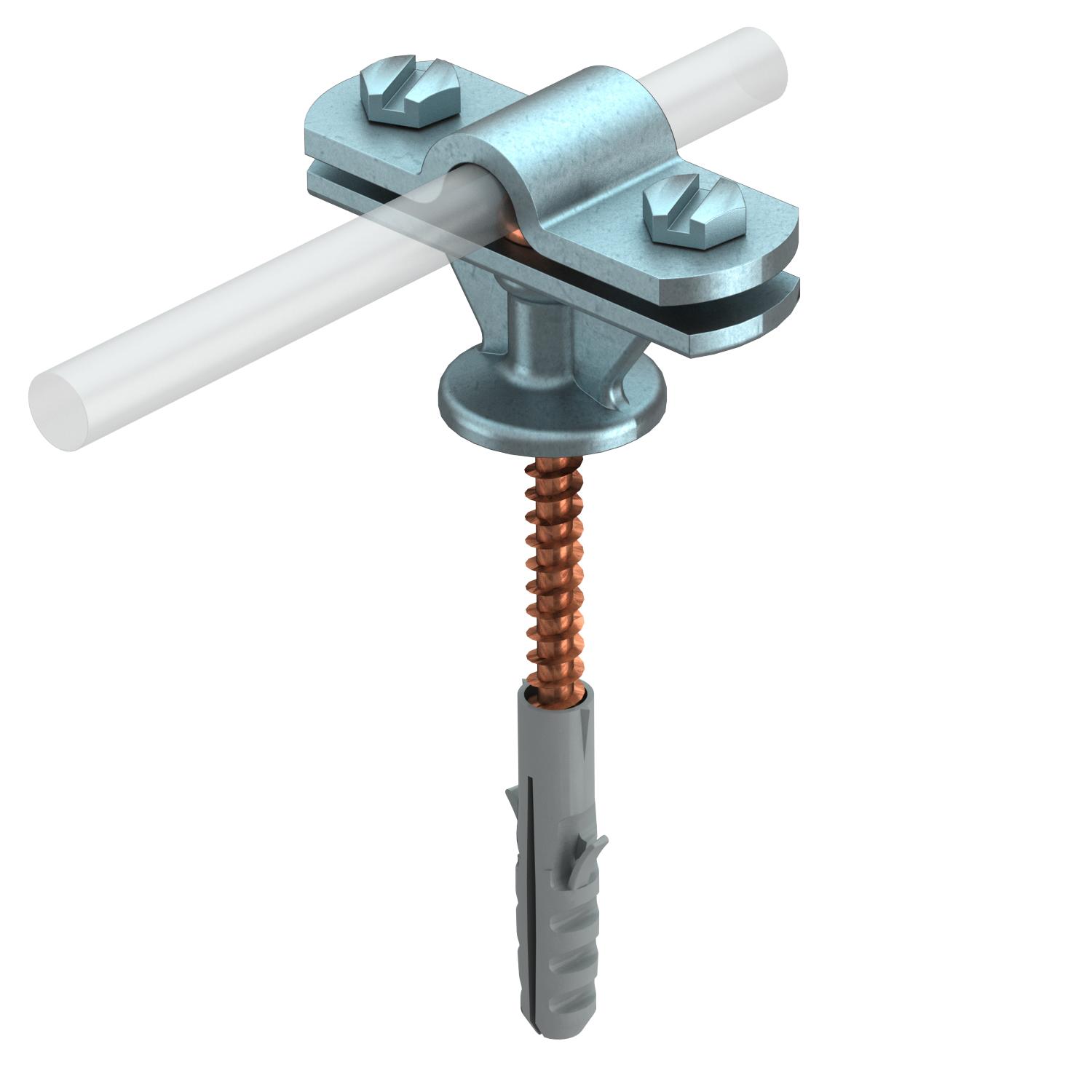

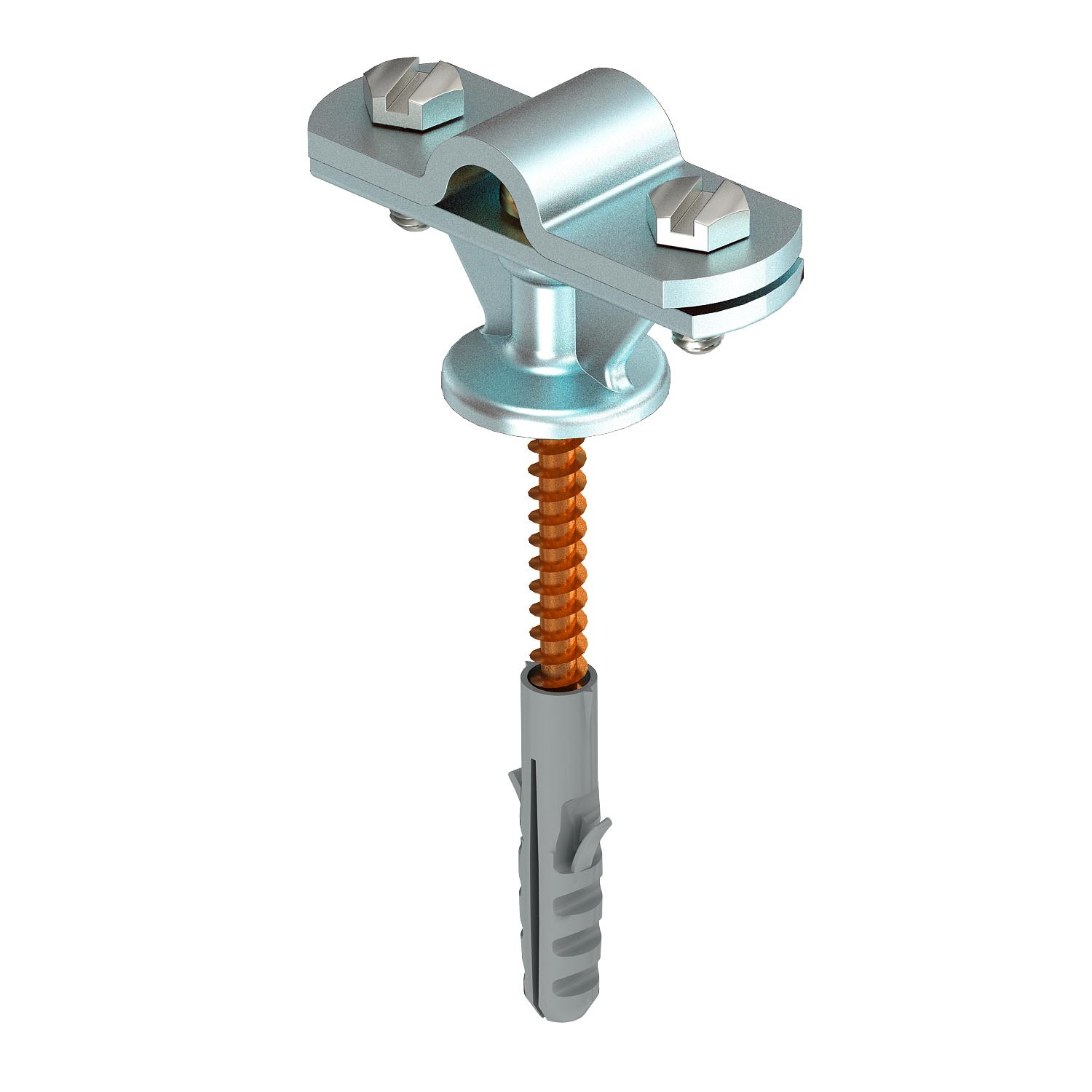

Cable bracket Rd 8–10 mm with wood screw, plastic anchor

Item no. 5230322 | EAN 4012195629535

5230322 / 113 B-Z-HD
8−10 mm round
Product description

Product description

• With female thread M8 or through hole Ø 7 mm
• Over-piece installed with 2 hexagonal bolts
• Version HD with wood screws (5 x 60) and plastic dowels (8 x 40)
Technical data

Technical data

Cable dimensions 8−10 mm round
Conductor fastening type With screw clip
Dimension 8-10mm
High voltage-resistant, insulated version no
Holder fastening type Drill hole with M-thread
Material Die-cast zinc
Material of the base Die-cast zinc
Material of the crossbar Die-cast zinc
Material of the holder Die-cast zinc
Surface galvanised
Thread metric 8
Use in Ex area yes
All types

All types

Types Cable dimensions Item no. Quantity SSU
113 B-Z-HD 8−10 mm round 5230322
100 piece
