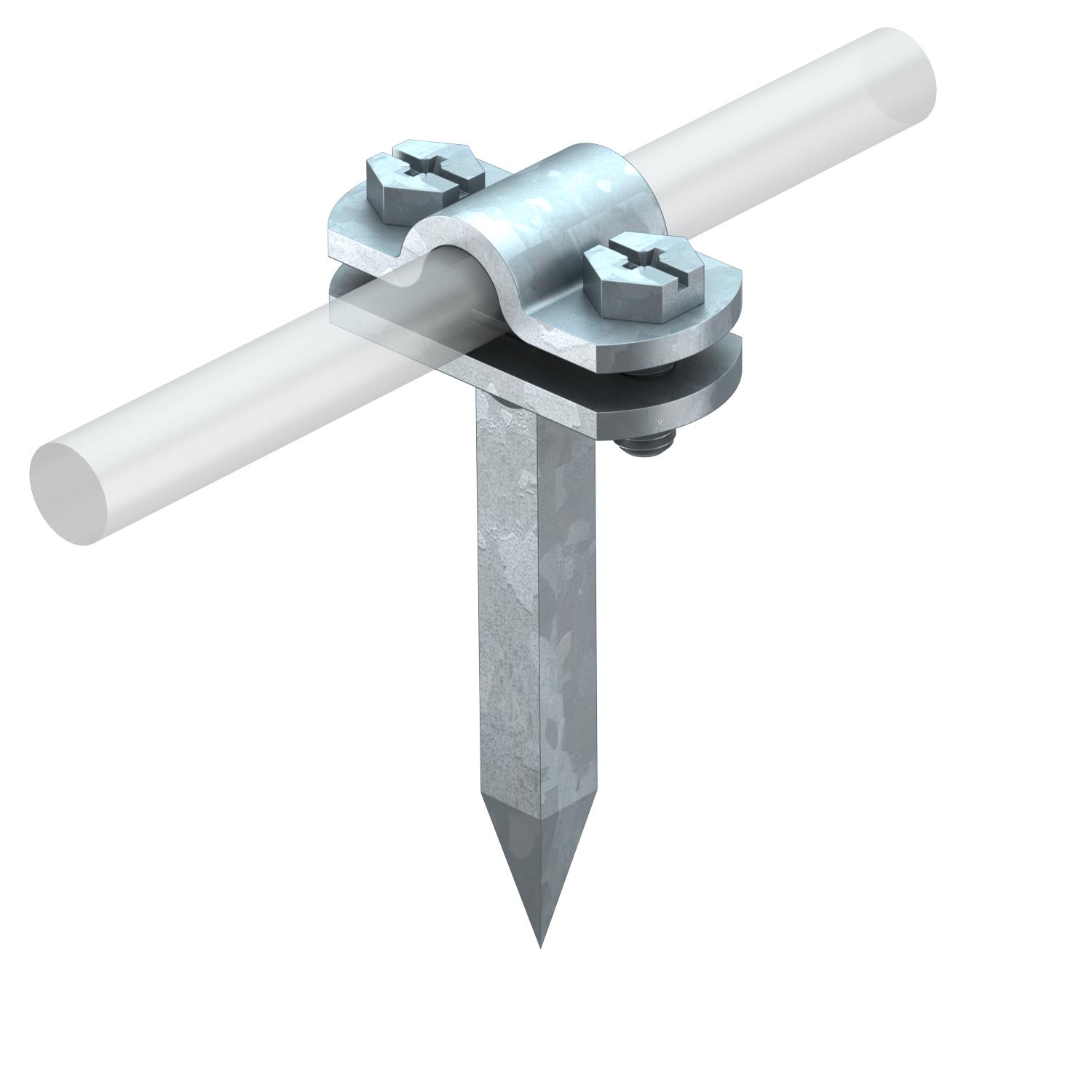

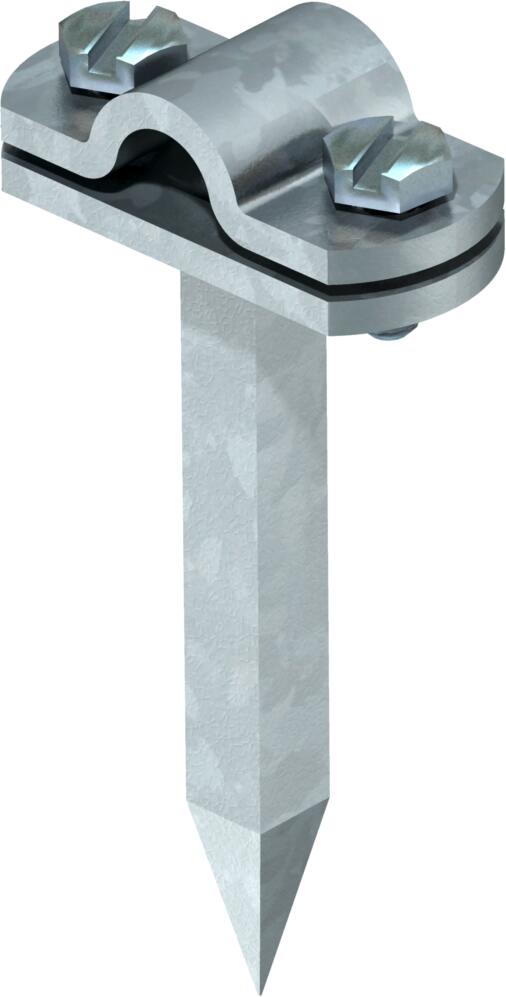

Cable bracket Rd 8−10 mm, with square pin

Item no. / Types

Cable dimensions	8−10 mm round

Product description

Product description

• Complete with crossbar and hexagonal bolts
• With square pin for rapid mounting
• With hexagonal bolts made of VA

Technical data

Cable dimensions	8−10 mm round
Conductor fastening type	With screw clip

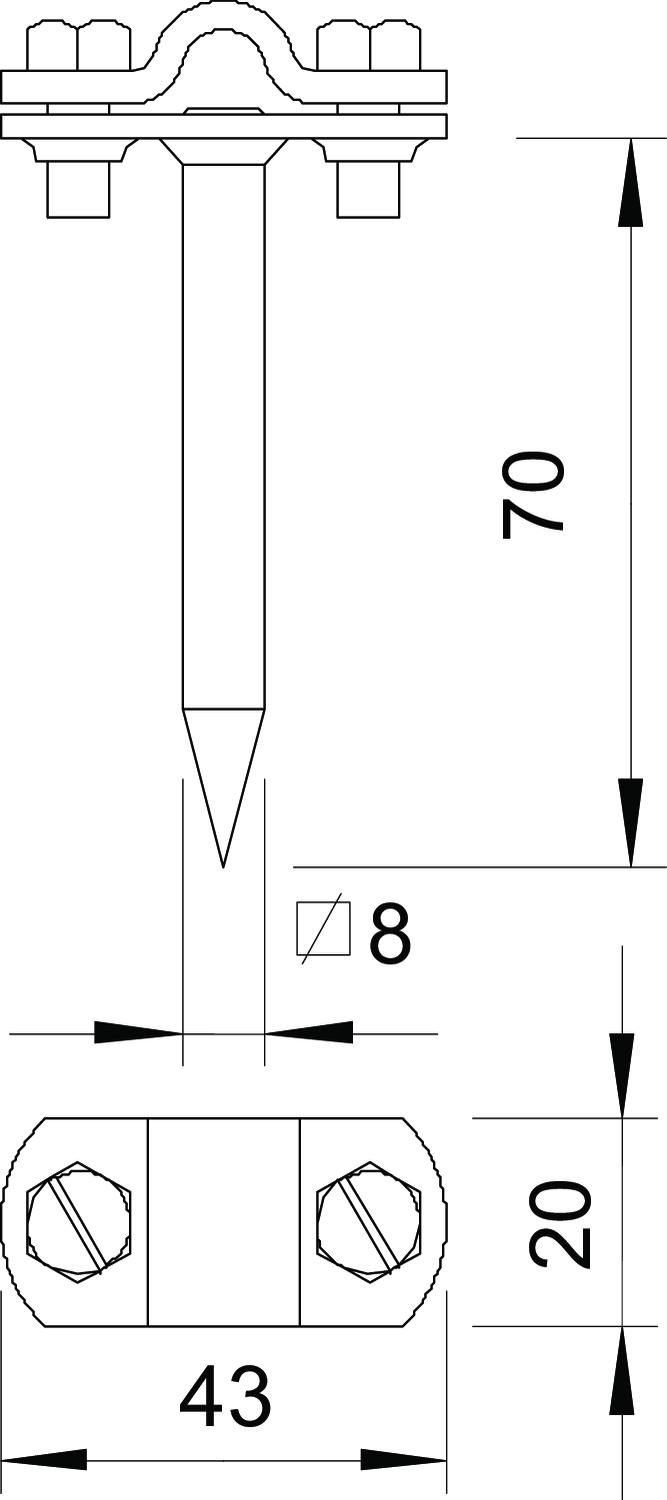

Dimension	70mm
High voltage-resistant, insulated version	no
Holder fastening type	With impact pin
Material	Steel

Dimension L	70 mm

Length	70 mm

All types

Types	Cable dimensions	Item no.	Quantity	SSU
163 70 FT	8−10 mm round	5223075	piece	50 piece
163 100 FT	8−10 mm round	5223105	piece	50 piece
163 200 FT	8−10 mm round	5223202	piece	20 piece
