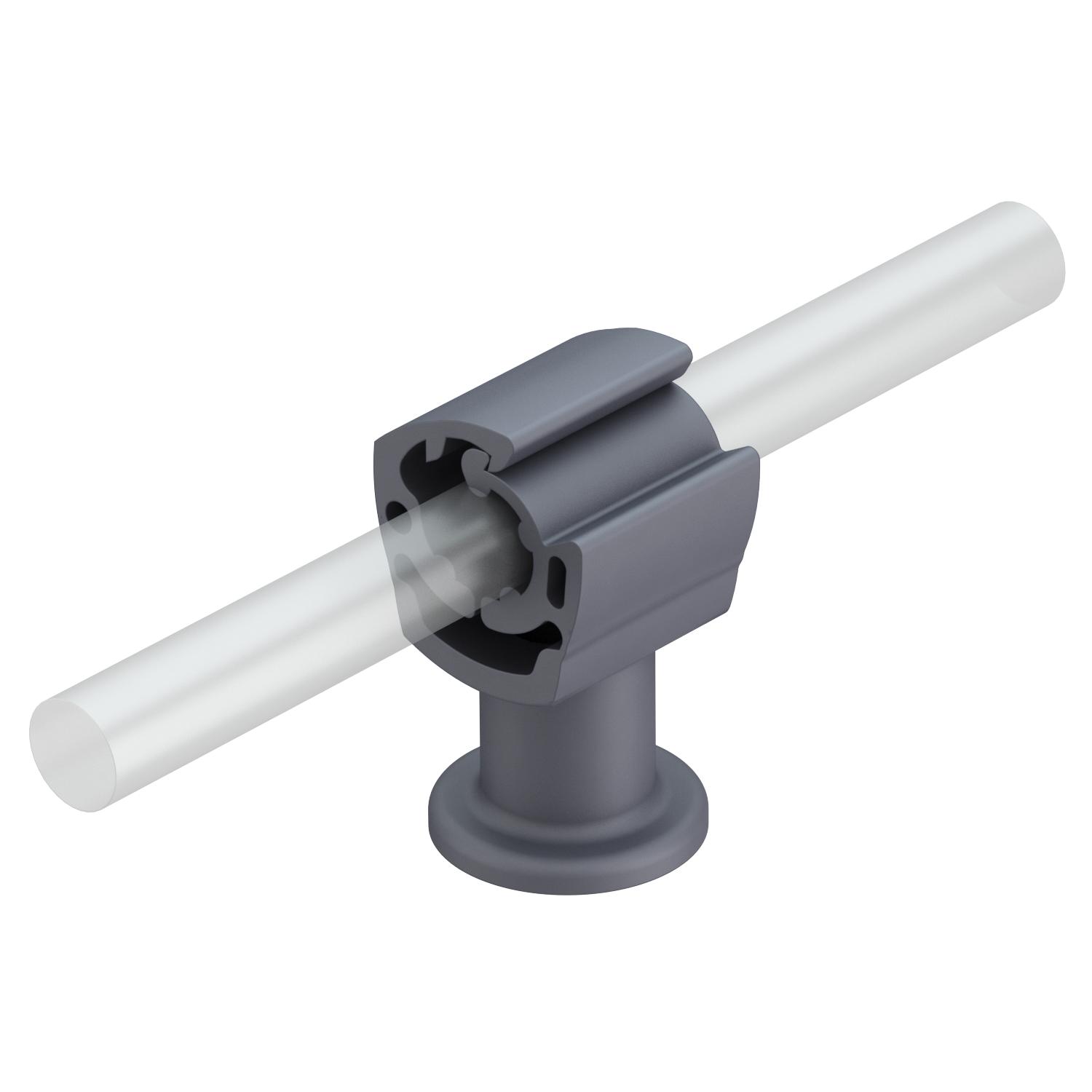

Cable bracket Rd 8–10 mm

Item no. 5207460 | EAN 4012195404958

8−10 mm round
Product description

Product description

• With female thread M8 or through hole Ø 7 mm
• Weather and temperature-resistant from -35 °C to +90 °C
Technical data

Technical data

Cable dimensions 8−10 mm round
Colour Grey
Conductor fastening type With clamp clip

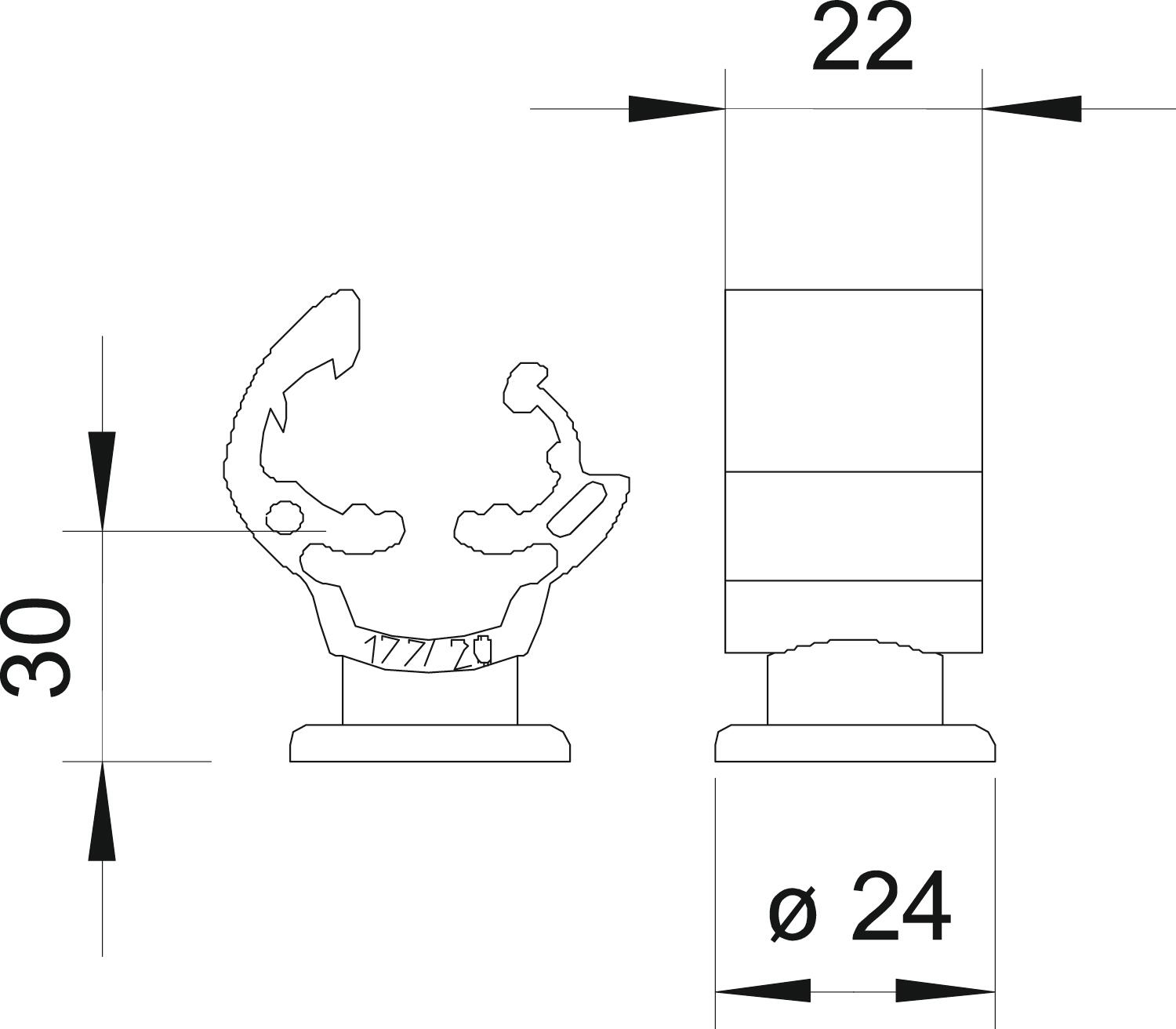

Dimension 30mm
Holder fastening type Drill hole with M-thread
Material Polyamide
Material of the base Polyamide
Material of the crossbar Polyamide
Material of the holder Polyamide
Mounting height 30 mm
Thread metric 8
All types

All types

Types Cable dimensions Mounting height Item no. Quantity SSU
177 20 M8 8−10 mm round 20 mm 5207444
20 piece
177 30 M8 8−10 mm round 30 mm 5207460
20 piece
177 55 M8 8−10 mm round 55 mm 5207487
20 piece
