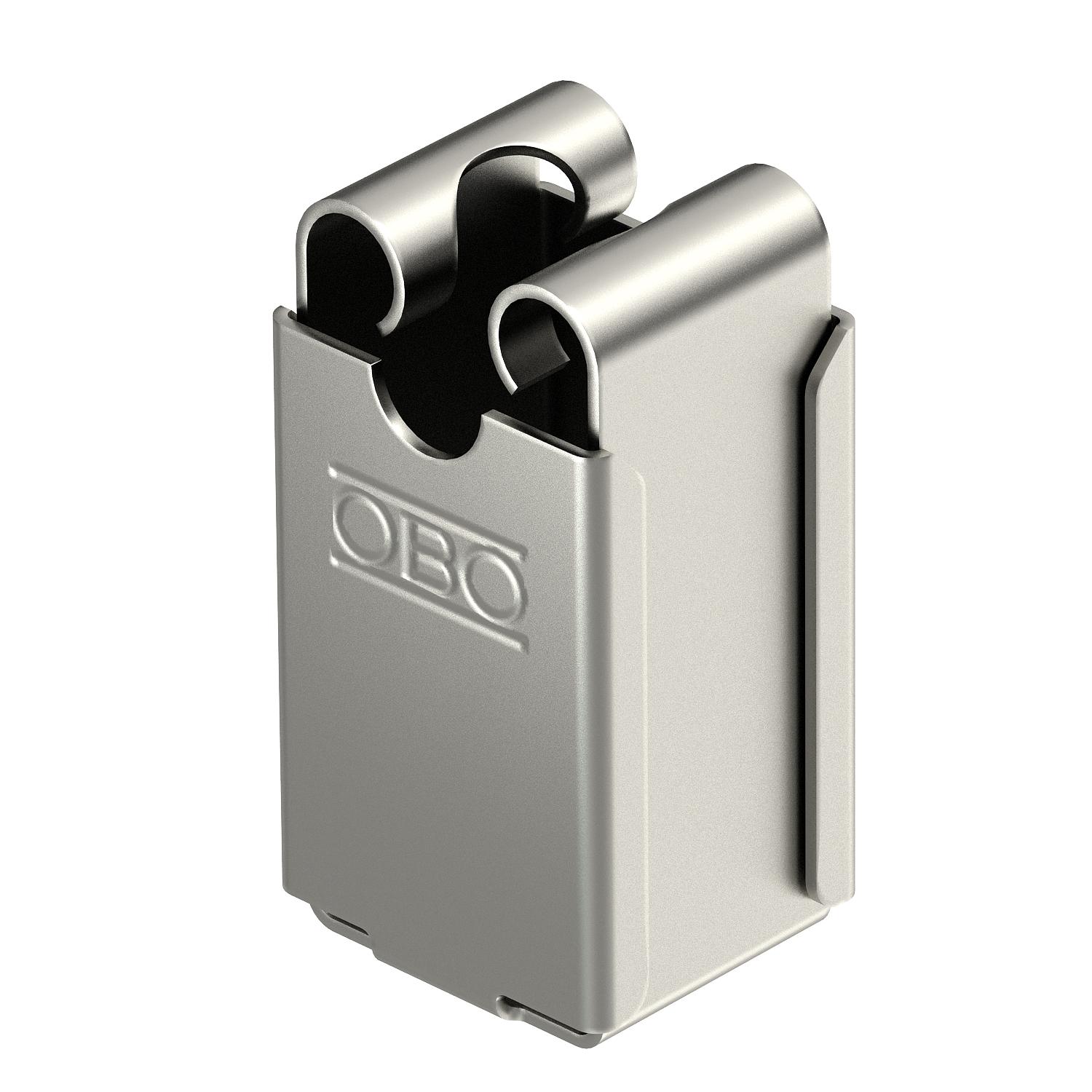

Cable bracket, raised construction type, for Rd 8 mm, through-way Ø 5 mm
Item no. 5207342 | EAN 4012195735762
- Product description
-
Product description
• With female thread M6 or through hole Ø 5 mm
• From stainless steel (V2A)
- Technical data
-
Technical data
Cable dimensions 8 mm round Conductor fastening type With clip Dimension 8mm Holder fastening type Drill hole with M-thread Material Stainless steel Mounting height 35 mm Thread metric 6 Dimensions

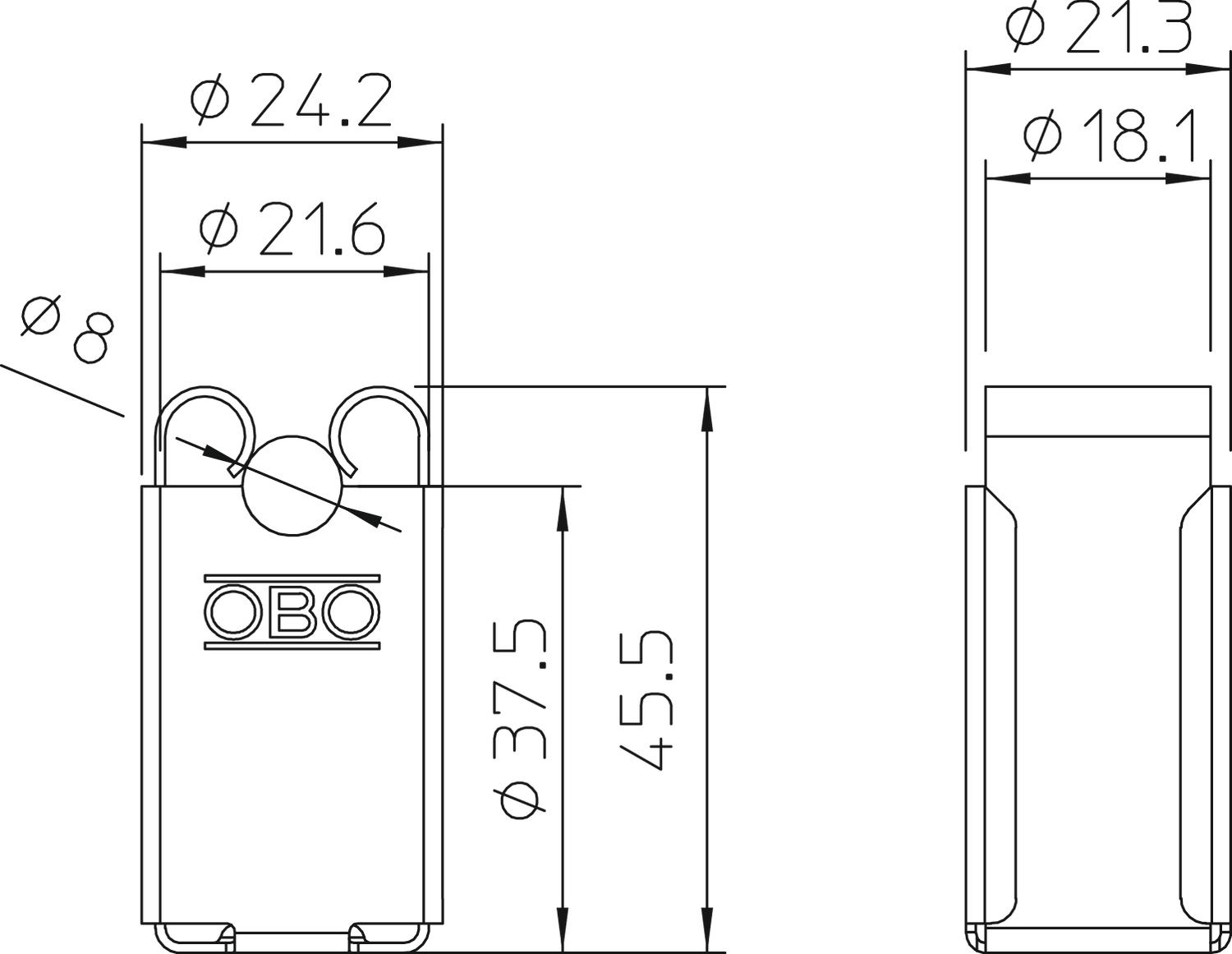

Dimension G M6 mm - All types
- Downloads
-
Data sheet 177 35 VA M6 / 5207342 , 0.20MB , pdfREACH Declaration of conformity 177 35 VA M6 / 5207342 , 0.12MB , pdfRoHS Declaration of conformity 177 35 VA M6 / 5207342 , 0.13MB , pdf
