Cable bracket for Rd 8 mm, through-way Ø 5 mm 8 mm round | 20

morepic-1

morepic-2

Cable bracket for Rd 8 mm, through-way Ø 5 mm

Item no. 5207339 | EAN 4012195404774

Item no. / Types	5207339 / 177 20 VA M6

Cable dimensions	8 mm round

Mounting height	20 mm

Product description

Product description

• With female thread M6 or through hole Ø 5 mm

• From stainless steel (V2A)

Technical data

Technical data

Cable dimensions	8 mm round
Conductor fastening type	With clip
Dimension	8mm
Holder fastening type	Drill hole with M-thread

Material	Stainless steel
Mounting height	20 mm
Thread metric	6

Dimensions

Dimension G	M6 mm

All types

All types

Types	Cable dimensions	Mounting height	Item no.	Quantity	SSU
177 20 VA M6	8 mm round	20 mm	5207339	piece	20 piece

Downloads

Data sheet 177 20 VA M6 / 5207339 , 0.26MB , pdf

Guide Lightning protection guide , 2.10MB , pdf

Brochure Lösungen für Photovoltaikanlagen , 11.37MB , pdf

Catalogue External lightning protection , 19.55MB , pdf

REACH Declaration of conformity 177 20 VA M6 / 5207339 , 0.12MB , pdf

Download

RoHS Declaration of conformity 177 20 VA M6 / 5207339 , 0.12MB , pdf

Download

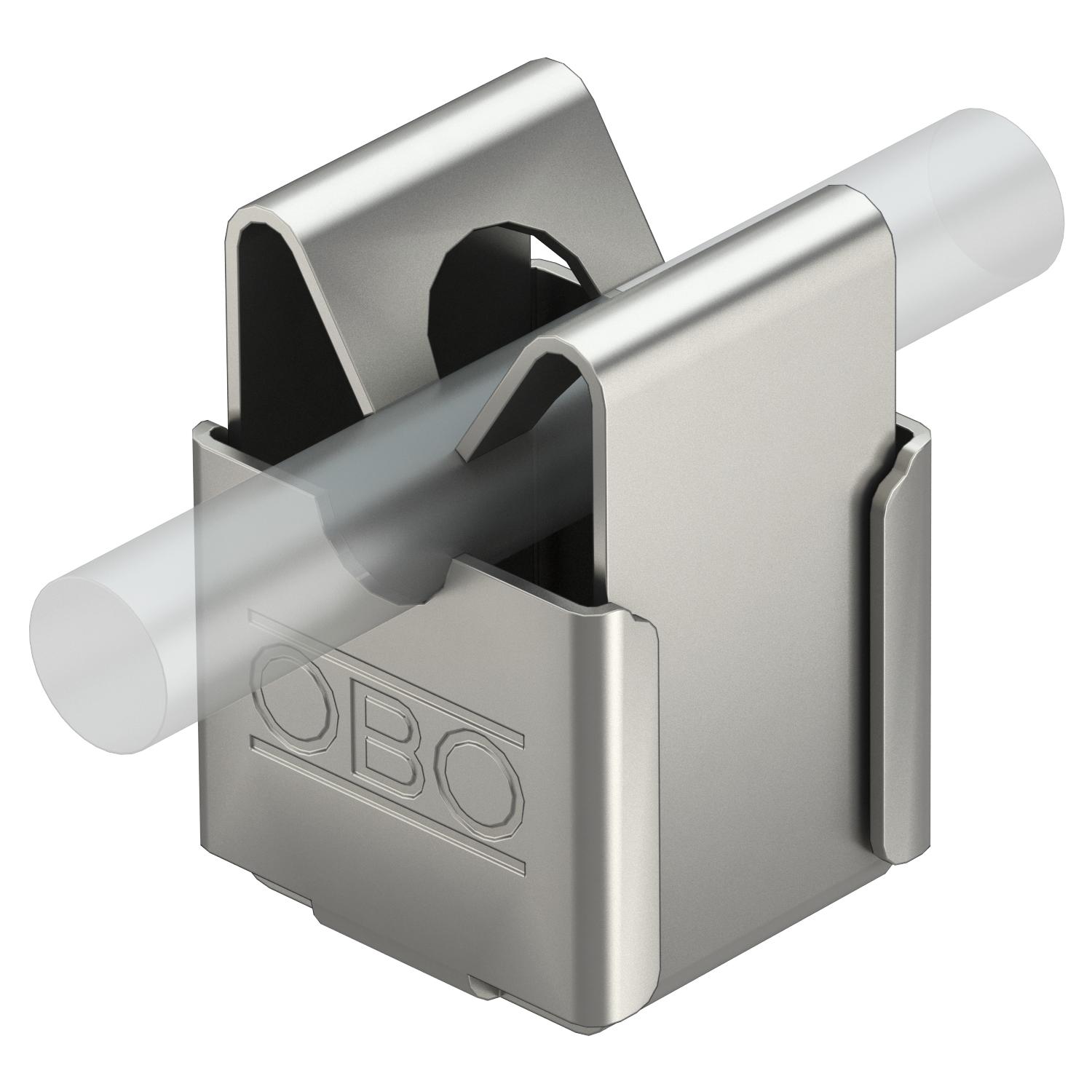

Product graphic 177 20 VA M6 / 5207339, 103.51 kB, jpg

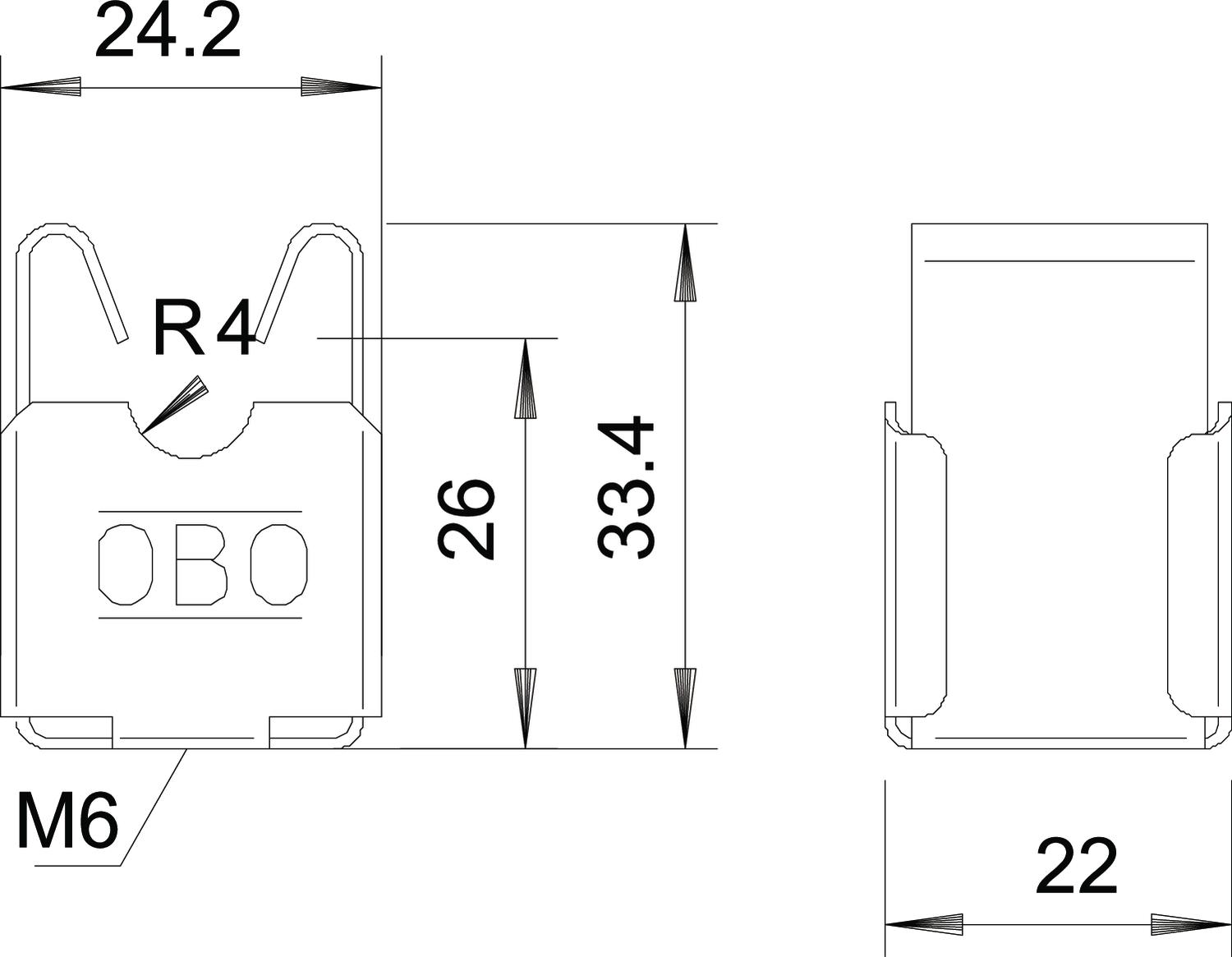

Scale drawing 177 20 VA M6 / 5207339, 72.59 kB, jpg

No invitation to tender text is available for this product.

5207339_KSTP1.stp, 174.96 kB
