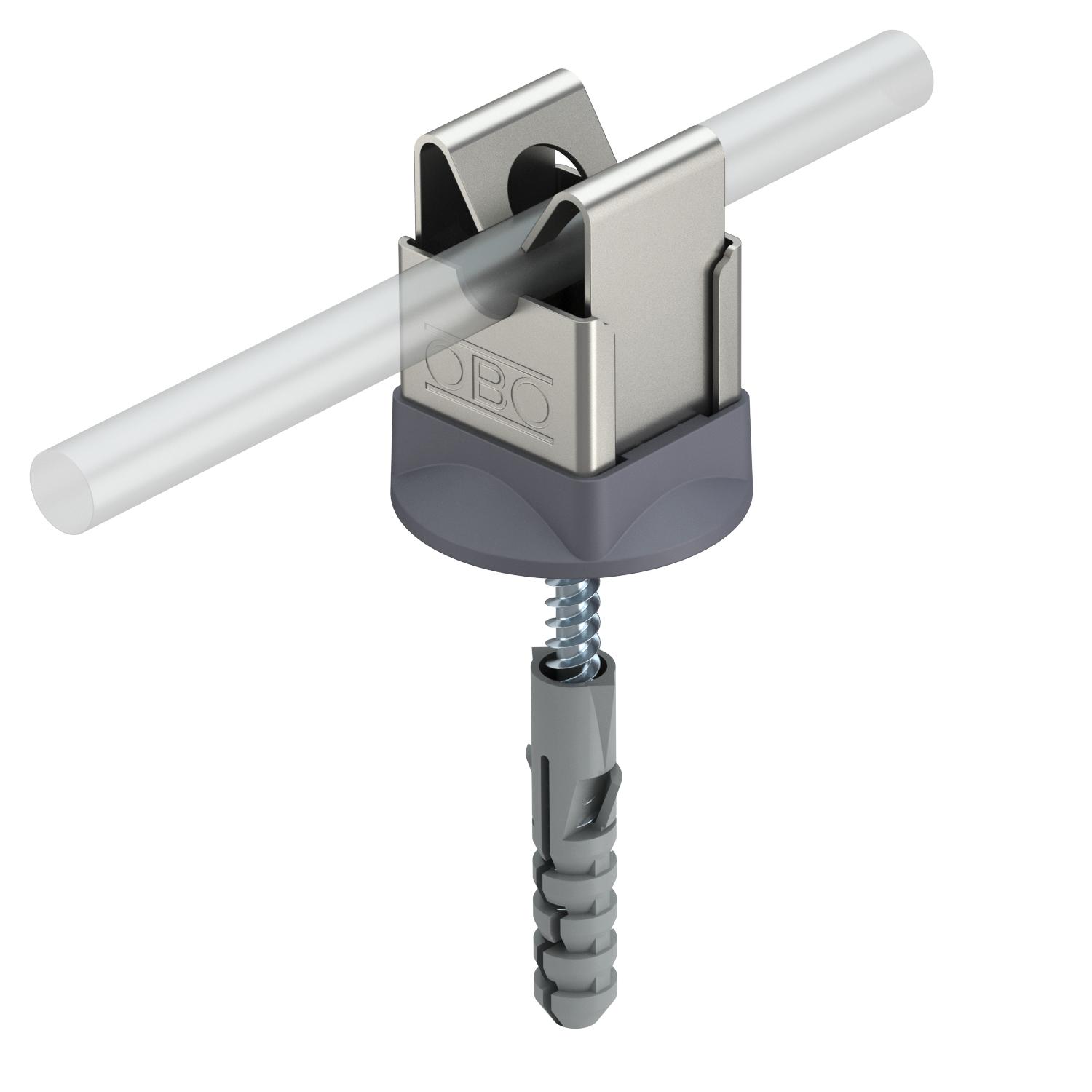

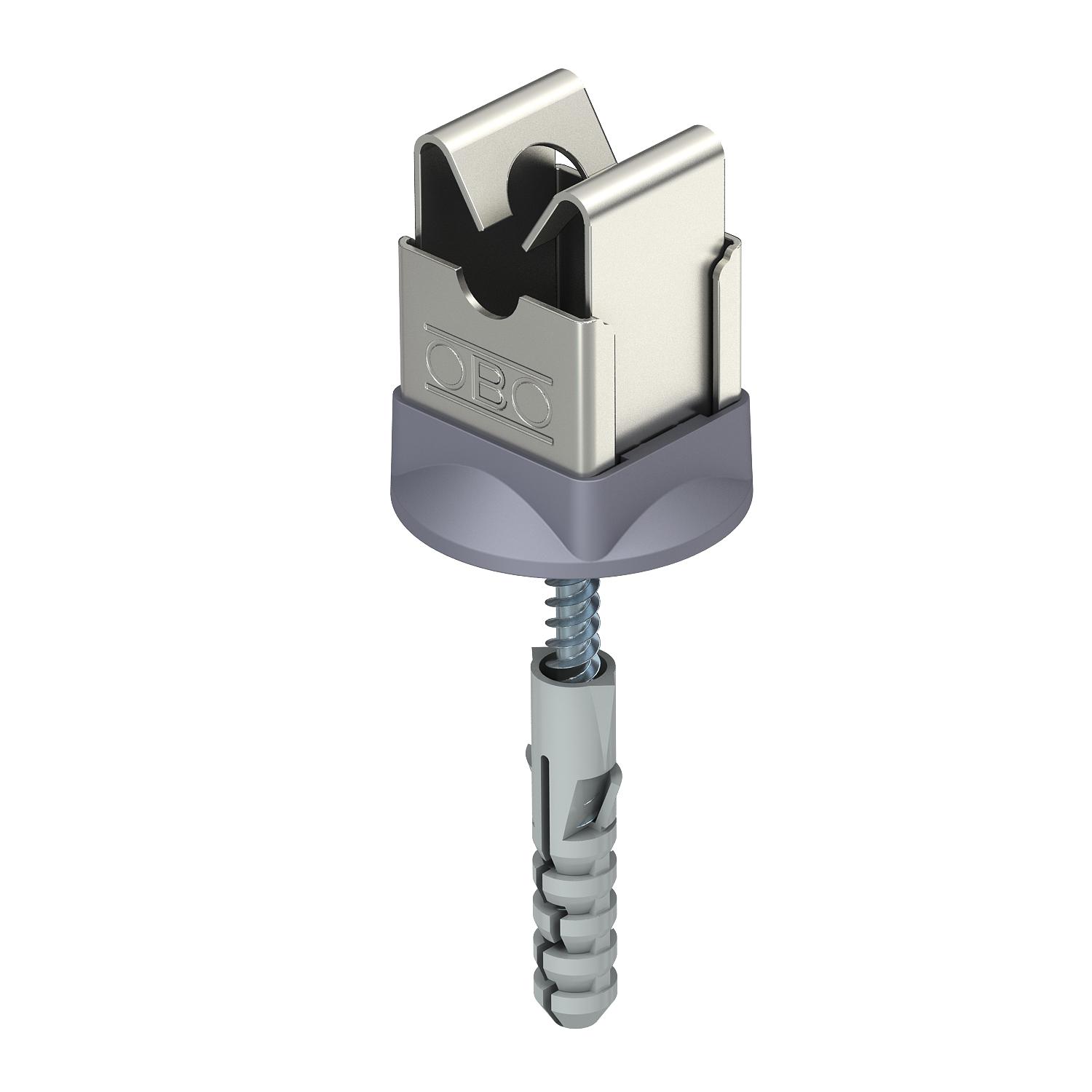

Cable bracket for Rd 8 mm, fastening with screw and anchor
Item no. 5207901 | EAN 4012195915836
- Product description
-
Product description
• With female thread M8 or through hole Ø 5 mm
• From stainless steel (V2A)
• With pre-mounted wood screws (5 x 60) and plastic dowels (8 x 40)
- Technical data
-
Technical data

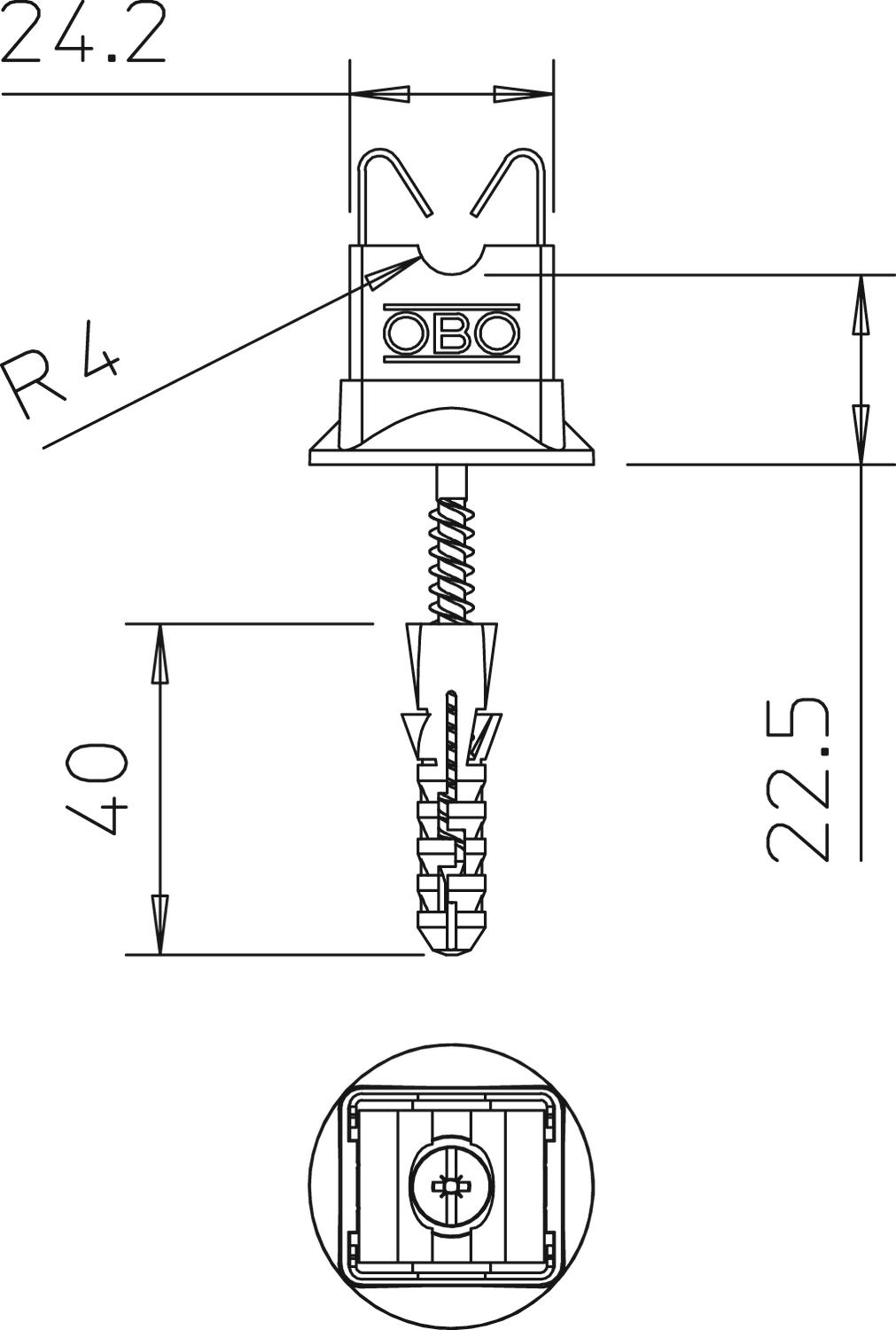

Cable dimensions 8 mm round Conductor fastening type With clamp clip Dimension 8mm Dimension G M6 mm High voltage-resistant, insulated version no Holder fastening type With anchor Material Stainless steel Mounting height 20 mm - All types
- Downloads
-
Data sheet 177 20 VA B-HD / 5207901 , 0.18MB , pdfREACH Declaration of conformity 177 20 VA B-HD / 5207901 , 0.12MB , pdfRoHS Declaration of conformity 177 20 VA B-HD / 5207901 , 0.12MB , pdf
