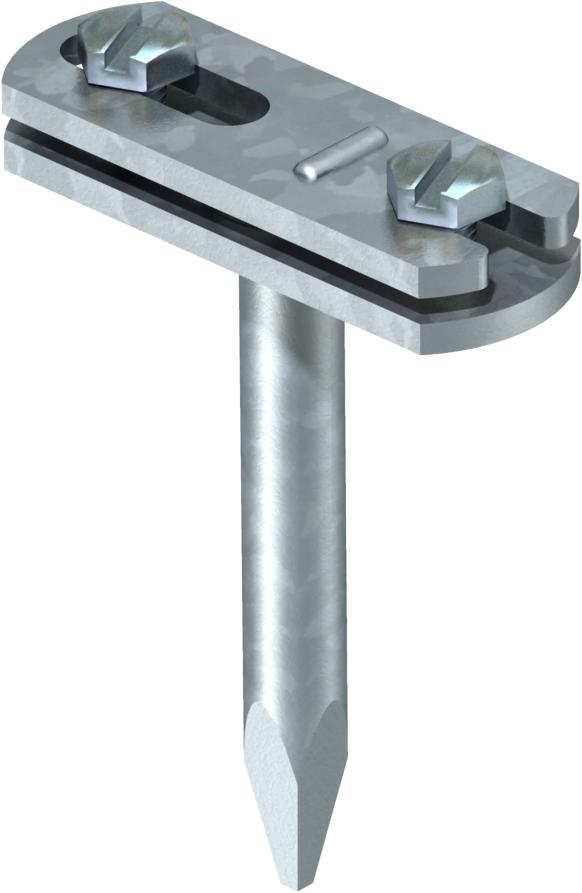

Cable bracket for flat conductors, with round pin

Item no. 5226570 | EAN 4012195410416

5226570 / 166 LS 70
30 x 4 mm flat
Product description

Product description

• With crossbar and 2 hexagonal bolts (VA)
• With loose round pin Ø 9 mm
Technical data

Technical data

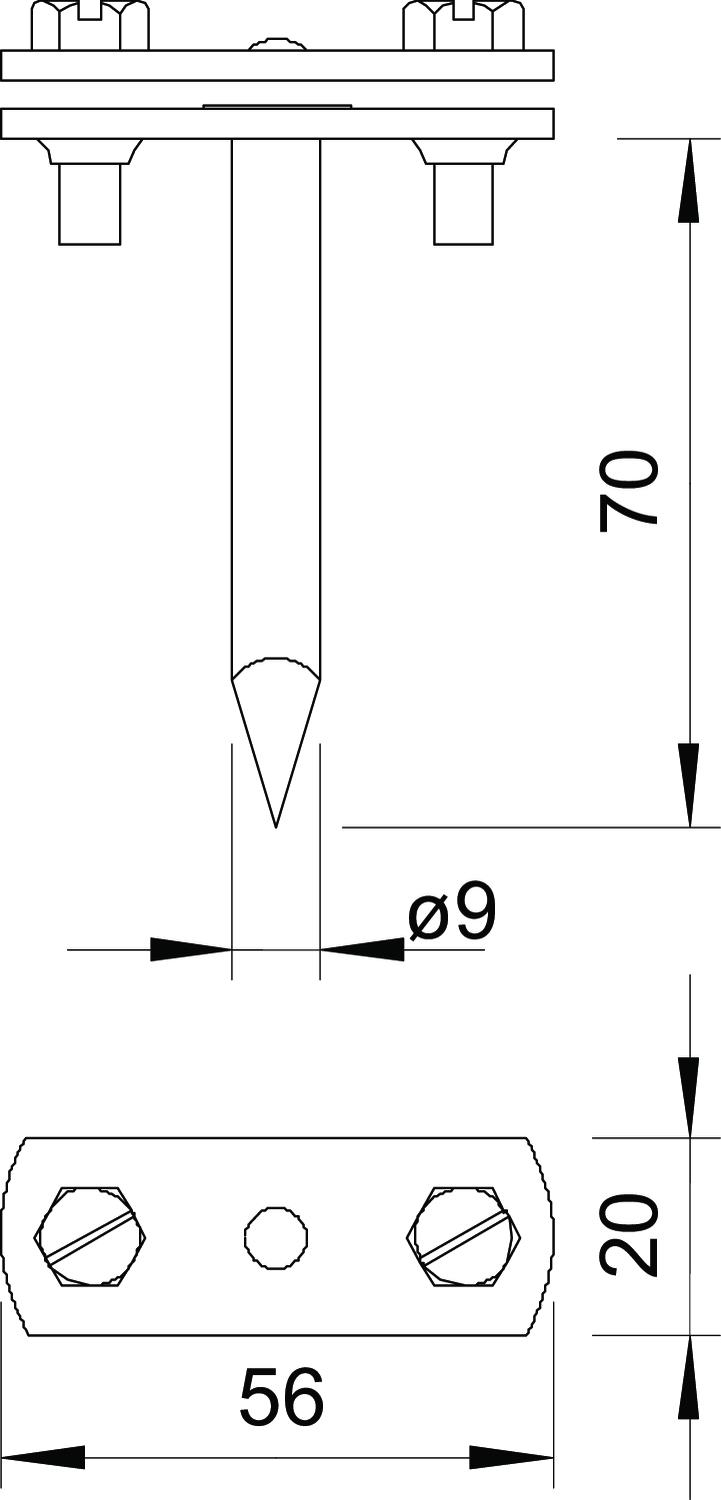

Cable dimensions 30 x 4 mm flat
Conductor fastening type With screw clip
Dimension 70mm
High voltage-resistant, insulated version no
Holder fastening type With impact pin
Length 70 mm
Material Steel
Material of the base Steel
Material of the crossbar Steel
Material of the holder Steel
Surface Hot-dip galvanised
Use in Ex area yes
All types

All types

Types Cable dimensions Item no. Quantity SSU
166 LS 70 30 x 4 mm flat 5226570
50 piece
