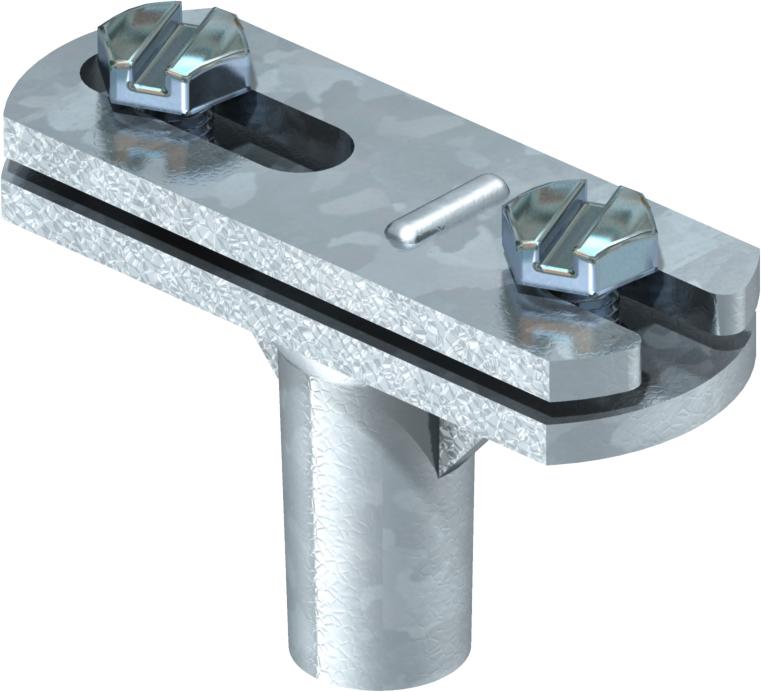

Cable bracket for flat conductors
Item no. 5229464 | EAN 4012195411673
- Product description
-
Product description
• For flat strap
• With internal thread (G)
• Mounting height 30 mm
- Technical data
-
Technical data
Cable dimensions 30 x 4 mm flat Conductor fastening type With screw clip Dimension 30mm High voltage-resistant, insulated version no Holder fastening type Drill hole with M-thread Material Die-cast zinc Material of the base Die-cast zinc Material of the crossbar Die-cast zinc Material of the holder Die-cast zinc Surface galvanised Thread M6 Thread metric 6 Use in Ex area yes Dimensions

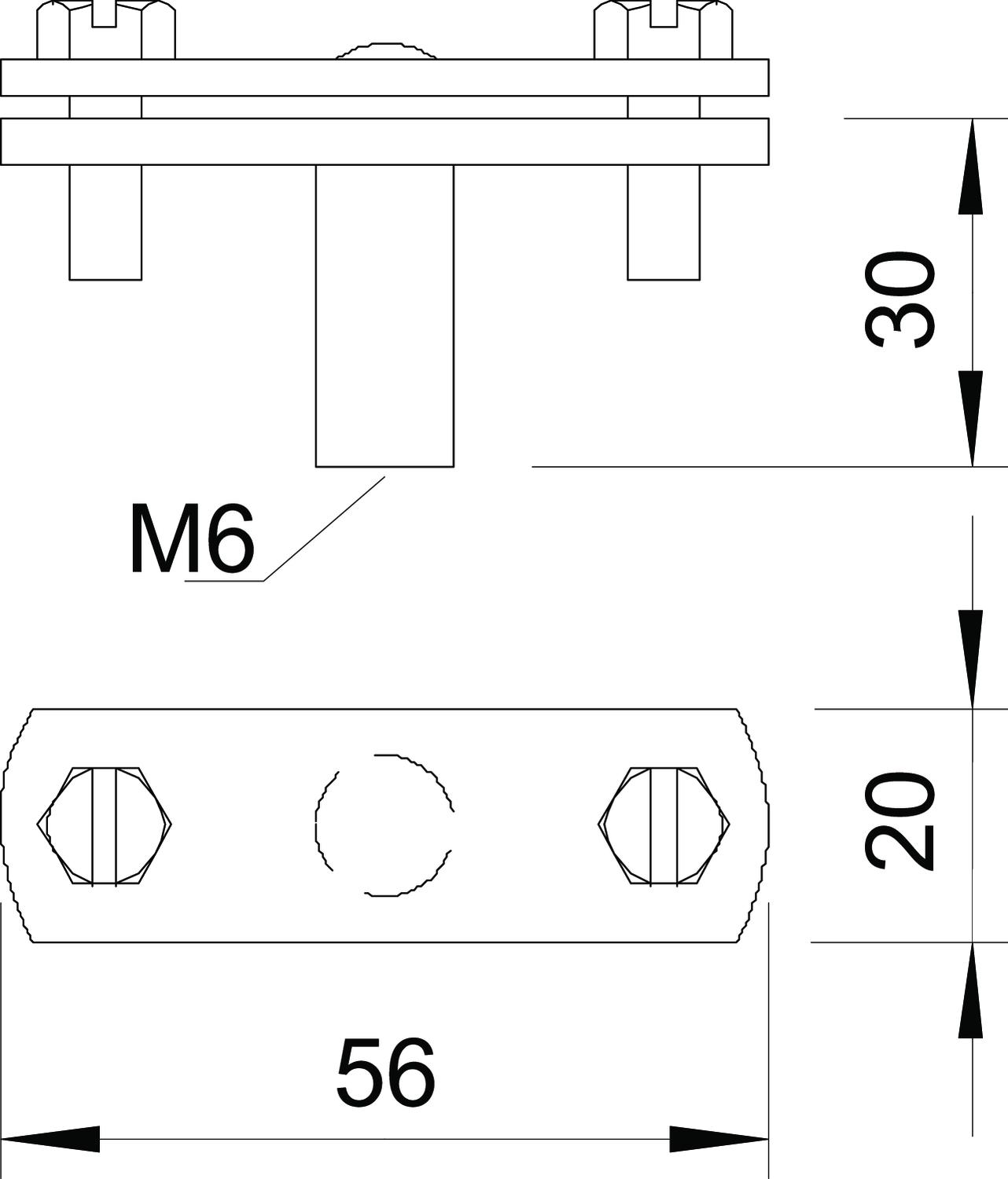

Dimension B 56 mm Dimension G M6 mm - All types
- Downloads
-
Data sheet 168 FL30-M6 / 5229464 , 0.20MB , pdfDeclaration of conformity Declaration of conformity ,Declaration of conformity Declaration of conformity ,No invitation to tender text is available for this product.
