C mesh cable tray CGR 50 FT

Item no. / Types

Length	3000 mm

Width

Height	50 mm

Wire diameter	4.5 mm

Usable cross-section

Maintain electrical functions	no

Product description

Product description

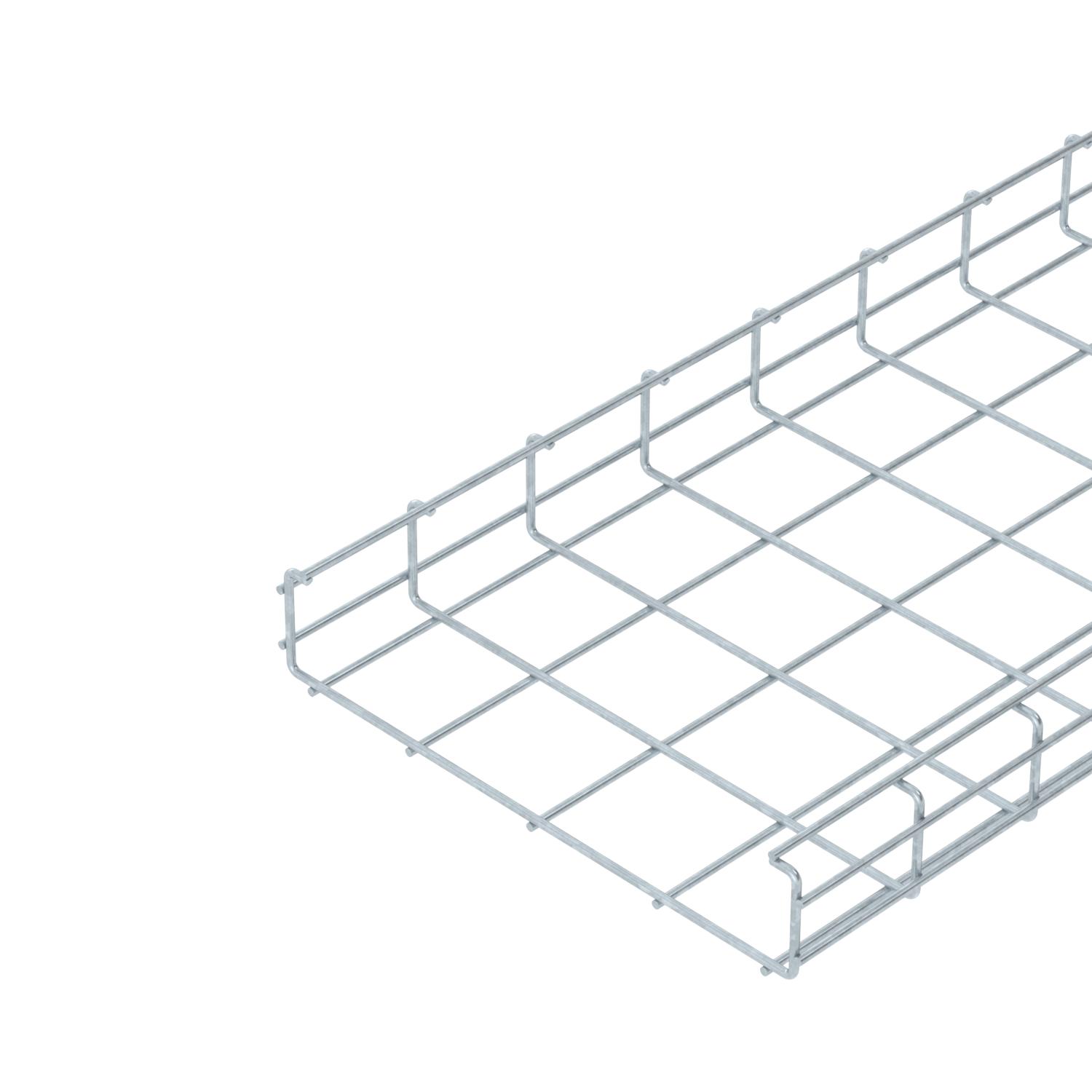

C-shaped mesh cable tray made of spot-welded steel wire of side height 50 mm.
Magnetic shield insulation 15 dB.

Technical data

Connector version	Without connectors

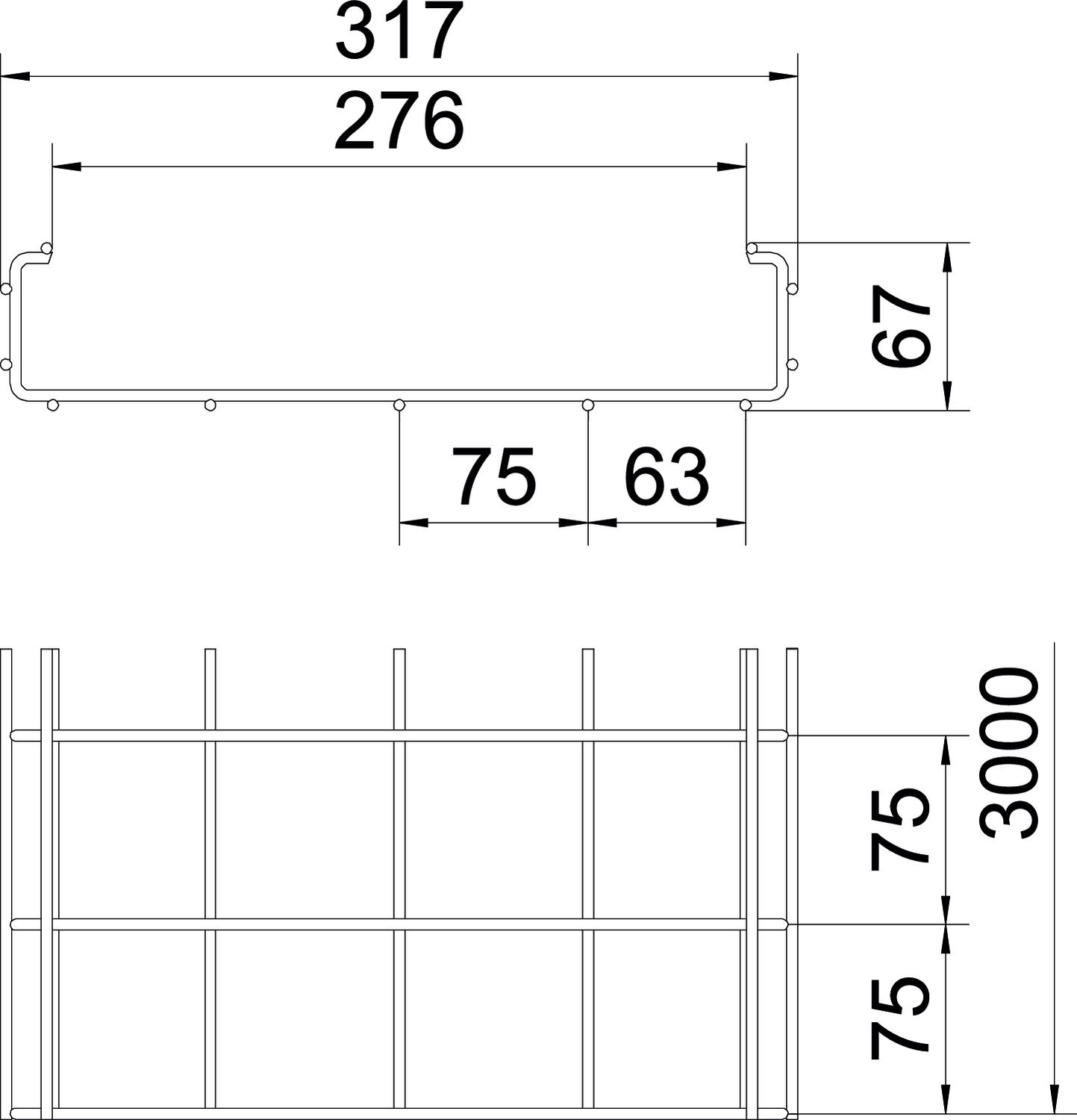

Dimension	50x300x3000
Dimension A	276 mm
Dimension B	317 mm
Dimension H	67 mm
Dimension l1	75 mm
Dimension L2 (mm)	63 mm
Height	50 mm
Height	1,97 in
Integrated partition	Without
Length	3000 mm
Load test type according to IEC 61537	Type II
Maintain electrical functions	no
Material	Steel

Profile shape	C-shaped
Rustproof steel, pickled	no
Support spacing 1.0 m	1,1 kN/m
Support spacing 1.5 m	0,7 kN/m
Support spacing 2.0 m	0,4 kN/m
Surface	Hot-dip galvanised
Type of connector, cable support system	Screwed
Usable cross-section	11600 mm²
Usable cross-section	116 cm²
Wide-span version	no
Width	11,81 in
Width	300 mm
Wire diameter	4,5 mm

All types

Types	Length	Width	Height	Wire diameter	Usable cross-section	Maintain electrical functions	Item no.	Quantity	SSU
CGR 50 50 FT	3000 mm	50 mm	50 mm	4.5 mm	13 cm²	no	6017428	m	3 m
CGR 50 100 FT	3000 mm	100 mm	50 mm	4.5 mm	34 cm²	no	6017436	m	3 m
CGR 50 200 FT	3000 mm	200 mm	50 mm	4.5 mm	75 cm²	no	6017444	m	3 m
CGR 50 300 FT	3000 mm	300 mm	50 mm	4.5 mm	116 cm²	no	6017452	m	3 m
CGR 50 400 FT	3000 mm	400 mm	50 mm	4.5 mm	157 cm²	no	6017460	m	3 m

Accessories

Products	Types	Item no.	Quantity	SSU
Joint connector FT	GSV 34 FT	6016634	piece	20 piece
45° mounting bracket FT	MW 45 SL10 FT	6017320	piece	20 piece
90° mounting angle FT	MW 90 SL17 FT	6017347	piece	20 piece
Clamping piece for separating retainer fastening	KS GR A2	6062282	piece	30 piece
Barrier strip 30 DD	TSG 30 DD	6062314	m	3 m
