C mesh cable tray CGR 50 A2

Item no. / Types

Length	3000 mm

Width

Height	50 mm

Wire diameter	4.5 mm

Usable cross-section

Maintain electrical functions	no

Product description

Product description

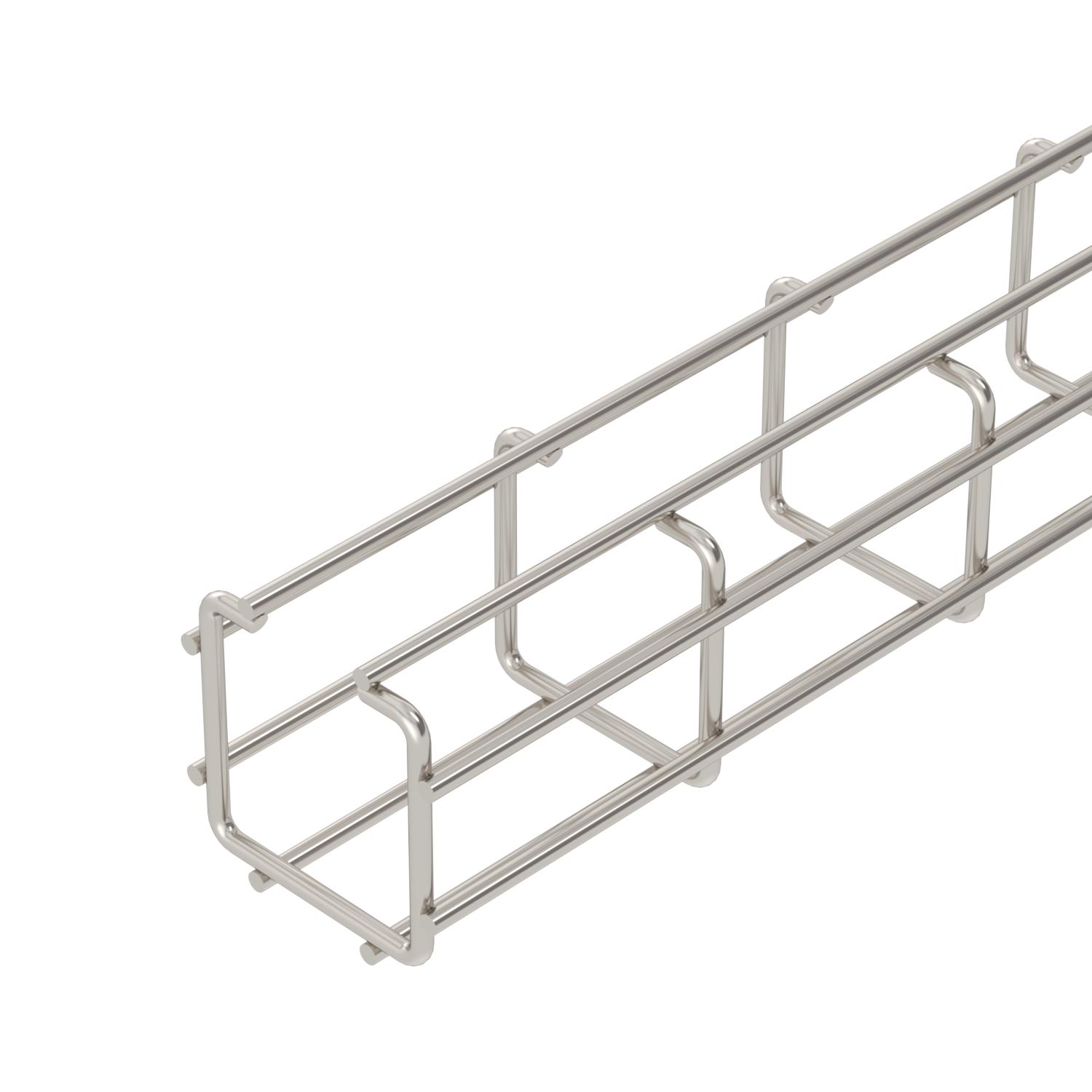

C-shaped mesh cable tray made of spot-welded steel wire of side height 50 mm.
Magnetic shield insulation 15 dB.

Technical data

Connector version	Without connectors

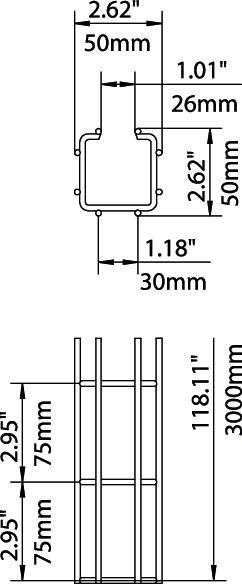

Dimension	50x50x3000
Integrated partition	Without
Load test type according to IEC 61537	Type II
Maintain electrical functions	no
Material	Stainless steel
Profile shape	C-shaped

Rustproof steel, pickled	yes
Surface	Bright, treated
Type of connector, cable support system	Screwed
Usable cross-section	1300 mm²
Usable cross-section	13 cm²
Wide-span version	no
Wire diameter	4,5 mm

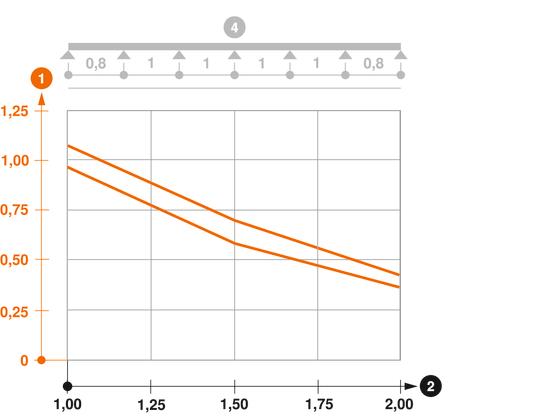

Support spacing 1.0 m	0,95 kN/m
Support spacing 1.5 m	0,6 kN/m

Support spacing 2.0 m	0,35 kN/m

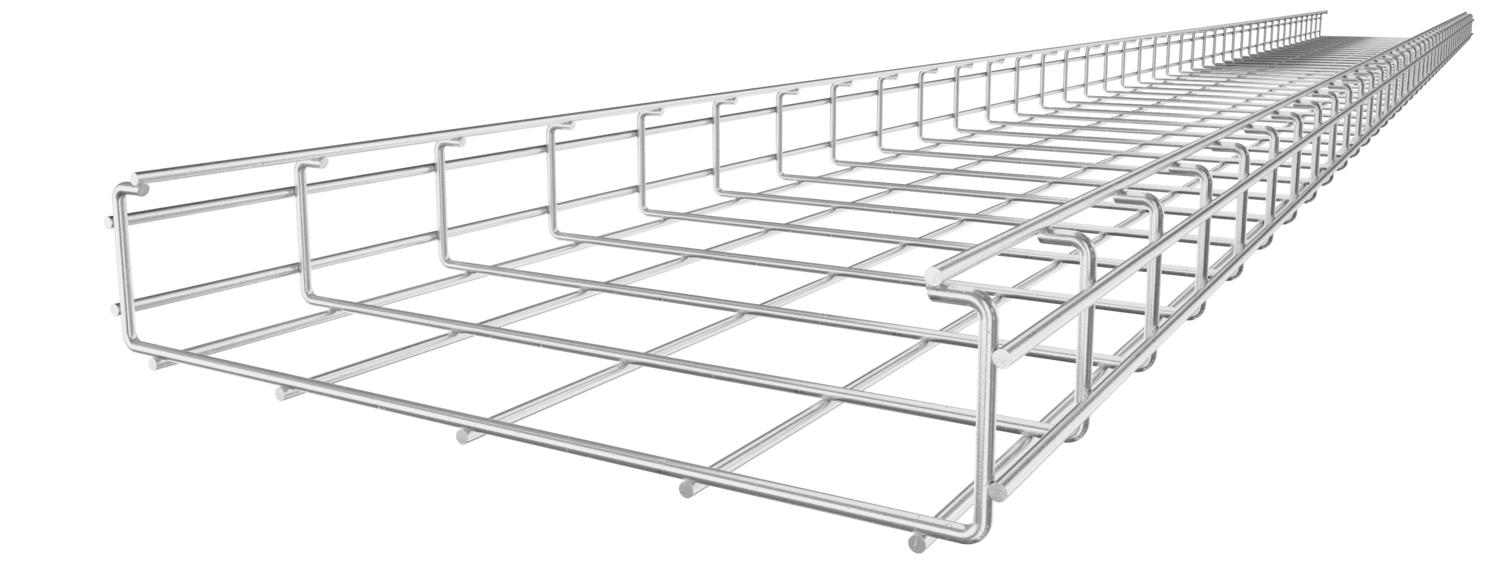

All types

Types	Length	Width	Height	Wire diameter	Usable cross-section	Maintain electrical functions	Item no.	Quantity	SSU
CGR 50 50 A2	3000 mm	50 mm	50 mm	4.5 mm	13 cm²	no	6016200	m	3 m
CGR 50 100 A2	3000 mm	100 mm	50 mm	4.5 mm	33 cm²	no	6016235	m	3 m
CGR 50 200 A2	3000 mm	200 mm	50 mm	4.5 mm	74 cm²	no	6016251	m	3 m
CGR 50 300 A2	3000 mm	300 mm	50 mm	4.5 mm	116 cm²	no	6016253	m	3 m
CGR 50 400 A2	3000 mm	400 mm	50 mm	4.5 mm	157 cm²	no	6016255	m	3 m

Accessories

Products	Types	Item no.	Quantity	SSU

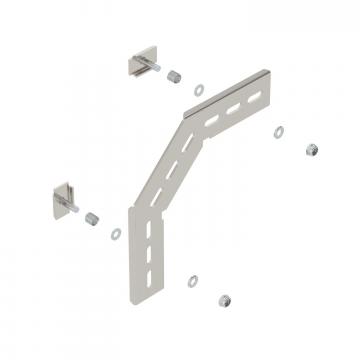

90° mounting angle A2	MW 90 SL17 A2	6016278	piece	20 piece

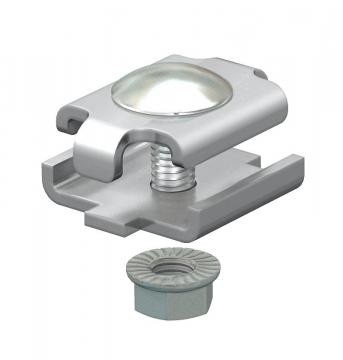

Joint connector A2	GSV 34 A2	6016642	piece	20 piece

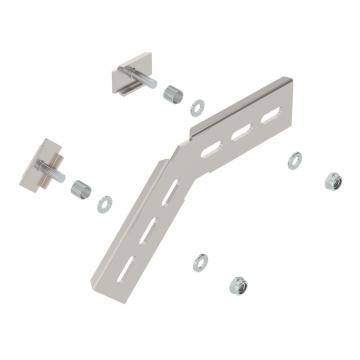

45° mounting angle A2	MW 45 SL10 A2	6017339	piece	20 piece

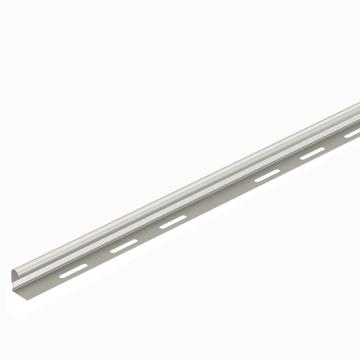

Barrier strip 30 A2	TSG 30 A2	6062052	m	3 m
Clamping piece for separating retainer fastening	KS GR A2	6062282	piece	30 piece
