C mesh cable tray CGR 50 A2

Item no. / Types

Length	3000 mm

Width

Height	50 mm

Wire diameter	4.5 mm

Usable cross-section

Maintain electrical functions	no

Product description

Product description

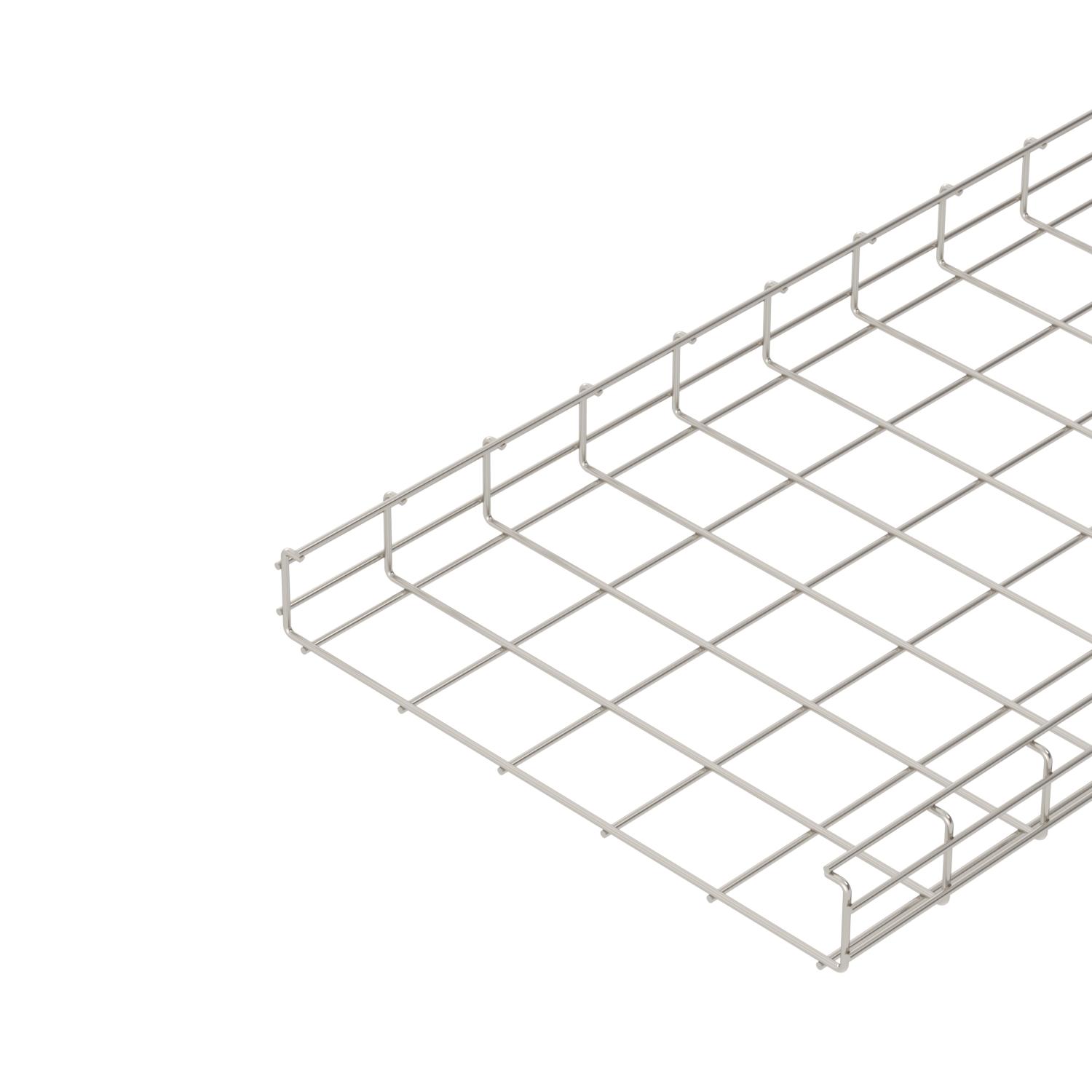

C-shaped mesh cable tray made of spot-welded steel wire of side height 50 mm.
Magnetic shield insulation 15 dB.

Technical data

Colour	stainless steel
Connector version	Without connectors
CO₂ Footprint (GWP) Cradle-to-Gate	11,565 kg CO₂e / 1 Meter

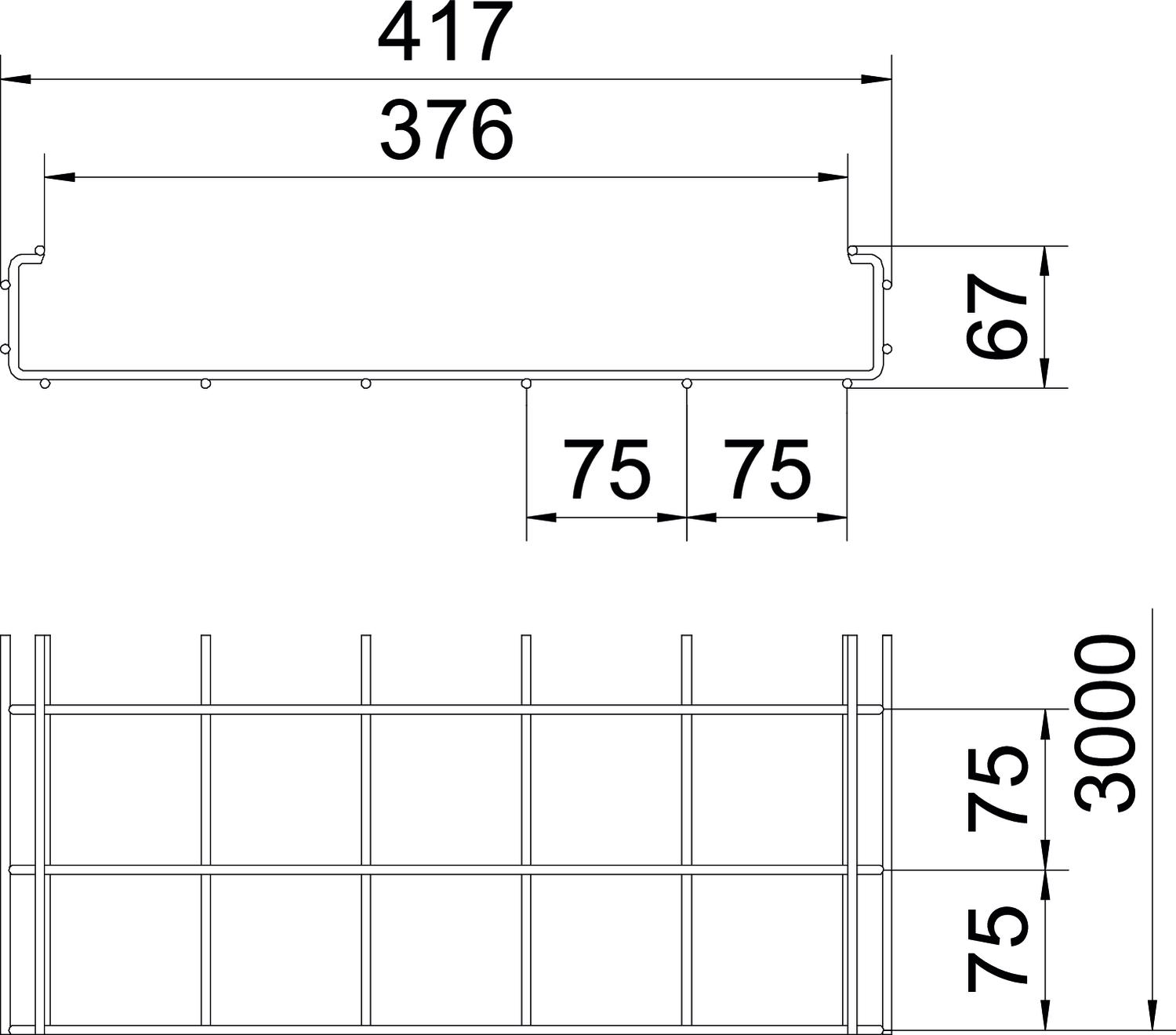

Dimension	50x400x3000
Dimension A	376 mm
Dimension B	417 mm
Dimension H	67 mm
Dimension l1	75 mm
Dimension L2 (mm)	75 mm
Height	1,97 in
Height	50 mm
Integrated partition	Without
Length	3000 mm
Load test type according to IEC 61537	Type II
Maintain electrical functions	no

Material	Stainless steel
Profile shape	C-shaped
Rustproof steel, pickled	no
Support spacing 1.0 m	1,1 kN/m
Support spacing 1.5 m	0,7 kN/m
Support spacing 2.0 m	0,4 kN/m
Surface	Bright, treated
Type of connector, cable support system	Screwed
Usable cross-section	157 cm²
Usable cross-section	15700 mm²
Wide-span version	no
Width	15,75 in
Width	400 mm
Wire diameter	4,5 mm

Technical data

All types

Types	Length	Width	Height	Wire diameter	Usable cross-section	Maintain electrical functions	Item no.	Quantity	SSU
CGR 50 50 A2	3000 mm	50 mm	50 mm	4.5 mm	13 cm²	no	6016200	m	3 m
CGR 50 100 A2	3000 mm	100 mm	50 mm	4.5 mm	33 cm²	no	6016235	m	3 m
CGR 50 200 A2	3000 mm	200 mm	50 mm	4.5 mm	74 cm²	no	6016251	m	3 m
CGR 50 300 A2	3000 mm	300 mm	50 mm	4.5 mm	116 cm²	no	6016253	m	3 m
CGR 50 400 A2	3000 mm	400 mm	50 mm	4.5 mm	157 cm²	no	6016255	m	3 m

Accessories

Products	Types	Item no.	Quantity	SSU
90° mounting angle A2	MW 90 SL17 A2	6016278	piece	20 piece
Joint connector A2	GSV 34 A2	6016642	piece	20 piece
45° mounting angle A2	MW 45 SL10 A2	6017339	piece	20 piece
Barrier strip 30 A2	TSG 30 A2	6062052	m	3 m
Clamping piece for separating retainer fastening	KS GR A2	6062282	piece	30 piece
