Bridging cable 300

morepic-1

morepic-2

Bridging cable

Item no. 5331013 | EAN 4012195423379

Item no. / Types

Length

Product description

Product description

• With aluminium cable lugs

• From flexible copper cable 16 mm²

• Coating: Black, chlorinated EM5 natural rubber mixture

• With 1 fastening hole Ø 10.5 mm per attachment side

• With 2 fastening holes Ø 6.5 mm per attachment side

• Suitable for applications outside or inside

• Temperature range –25 °C to +80 °C (moved) and –40 °C to +80 °C (not moved)

• UV-resistant

Technical data

Technical data

Accessories	yes
Colour	Black
Dimension	300mm

Material	Copper
Spare part	no

Dimensions

Dimension L	300 mm

Length	300 mm

All types

All types

Types	Length	Item no.	Quantity	SSU
853 200	200 mm	5331008	piece	10 piece
853 300	300 mm	5331013	piece	10 piece
853 400	400 mm	5331017	piece	10 piece

Downloads

Data sheet 853 300 / 5331013 , 0.18MB , pdf

Guide Lightning protection guide , 2.10MB , pdf

Catalogue External lightning protection , 19.55MB , pdf

Declaration of conformity 853 300 / 5331013 , 0.16MB , pdf

Declaration of conformity Declaration of conformity ,

Download

REACH Declaration of conformity 853 300 / 5331013 , 0.12MB , pdf

Download

RoHS Declaration of conformity 853 300 / 5331013 , 0.12MB , pdf

Download

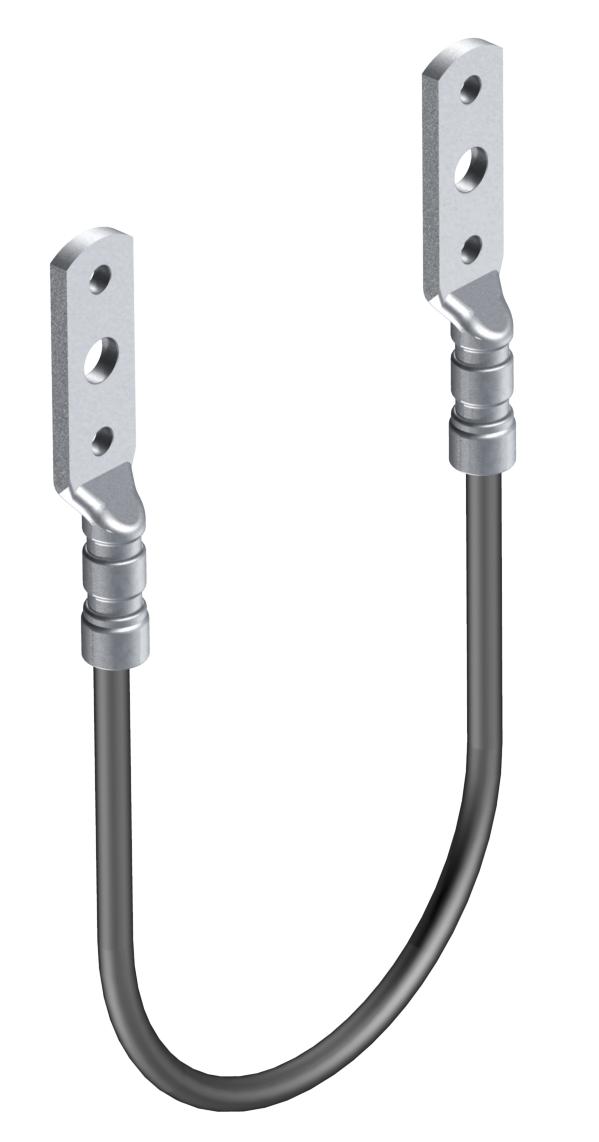

Product graphic 853 300 / 5331013, 27.83 kB, jpg

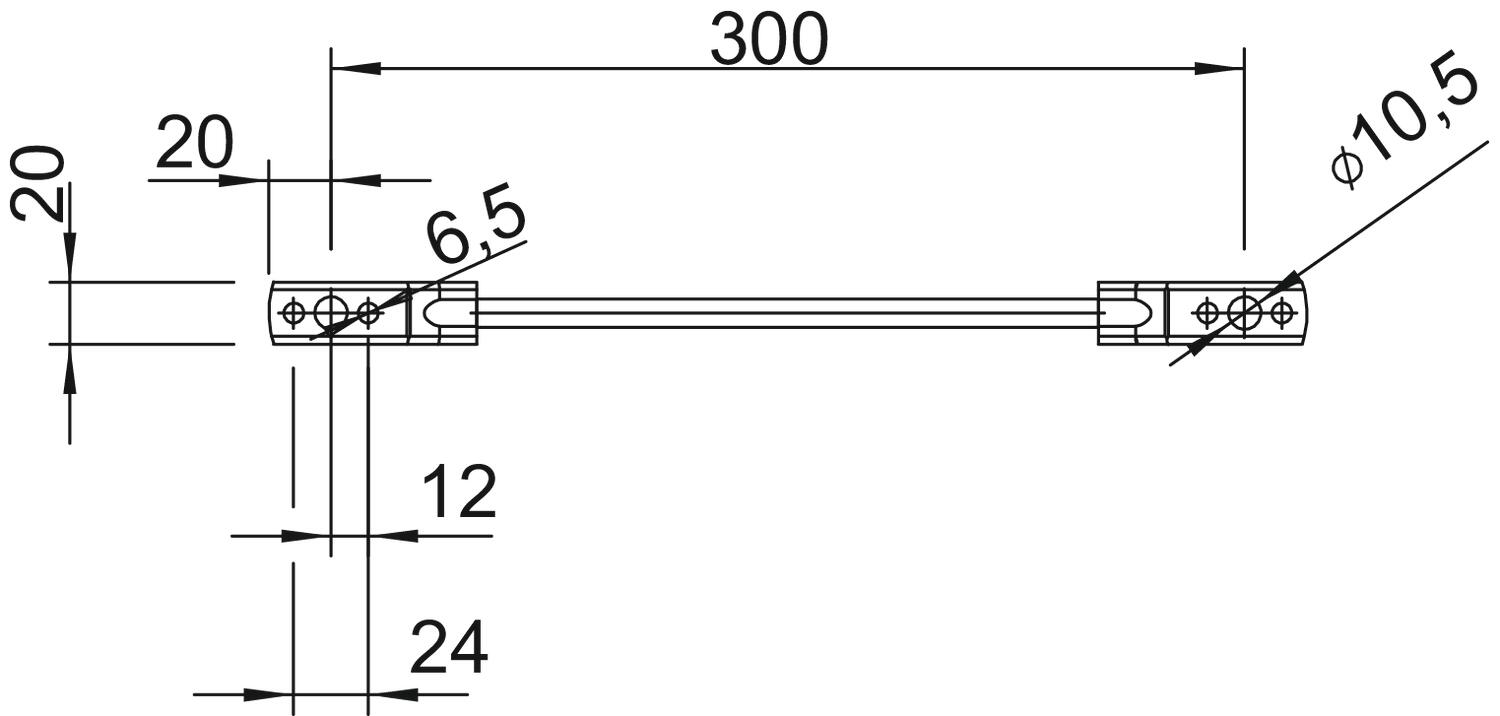

Scale drawing 853 300 / 5331013, 45.83 kB, jpg

853 300 / 5331013
