Brass spreading anchor

Item no. 3483088 | EAN 4012195311232

Product description

Product description

Areas of application: full brick, concrete, wood. Ideally suited for areas exposed to high temperatures.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

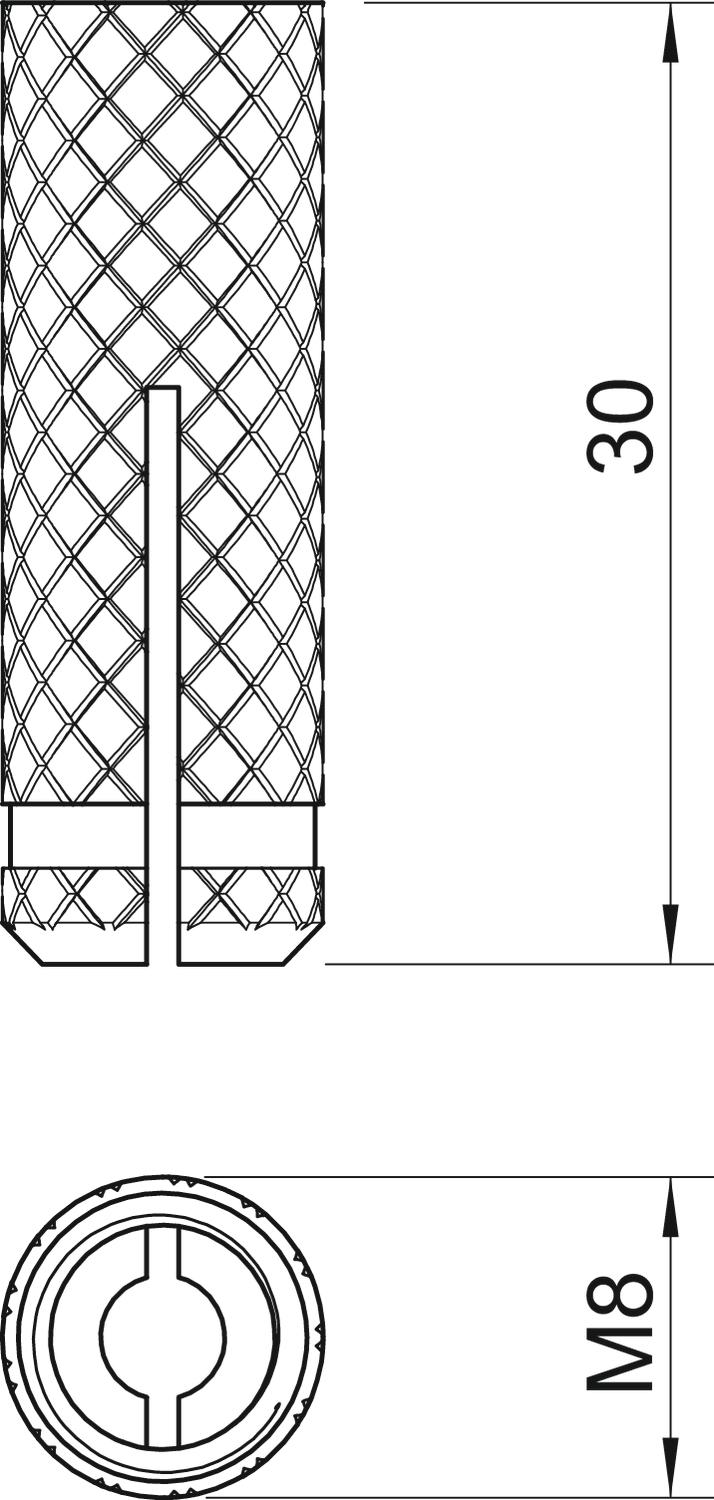

Diameter 10 mm
Dimension M8
Dimension D 10 mm
Dimension L 30 mm
Drill hole depth 41 mm
Drill hole diameter, min. 11 mm
Length 30 mm
Material Brass
Pull-out value 7000 N
Suitable for fastening with cable ties no
Suitable for hexagonal wood screw no
Suitable for material Concrete
Thread M8
Version for Spreading anchor
With bolts no
All types

All types

Types Diameter Length Drill hole depth Drill hole diameter, min. Item no. Quantity SSU
865 M6x24 7.5 mm 24 mm 32 mm 8 mm 3483061
100 piece
865 M8x30 10 mm 30 mm 41 mm 11 mm 3483088
100 piece
865 M10x34 12 mm 34 mm 53 mm 12 mm 3483096
100 piece
