- Product description
-

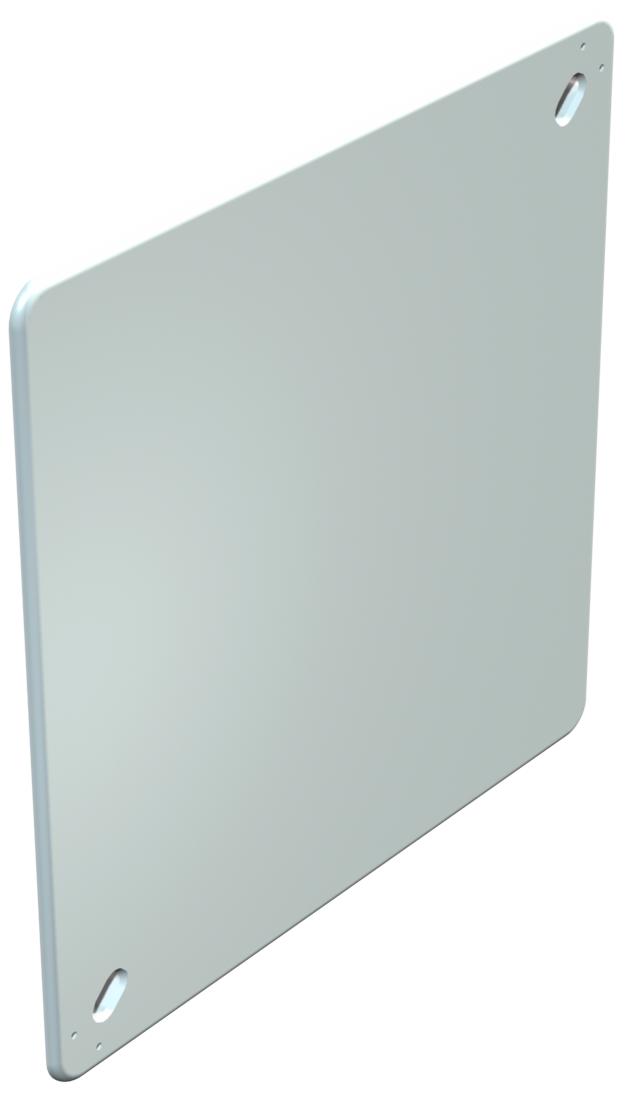

Product descriptionBox cover suitable for the connection sockets, type UV...K, cover edge is flush, surface is roughened, cover bolts can be lowered.
- Technical data
-
Technical data

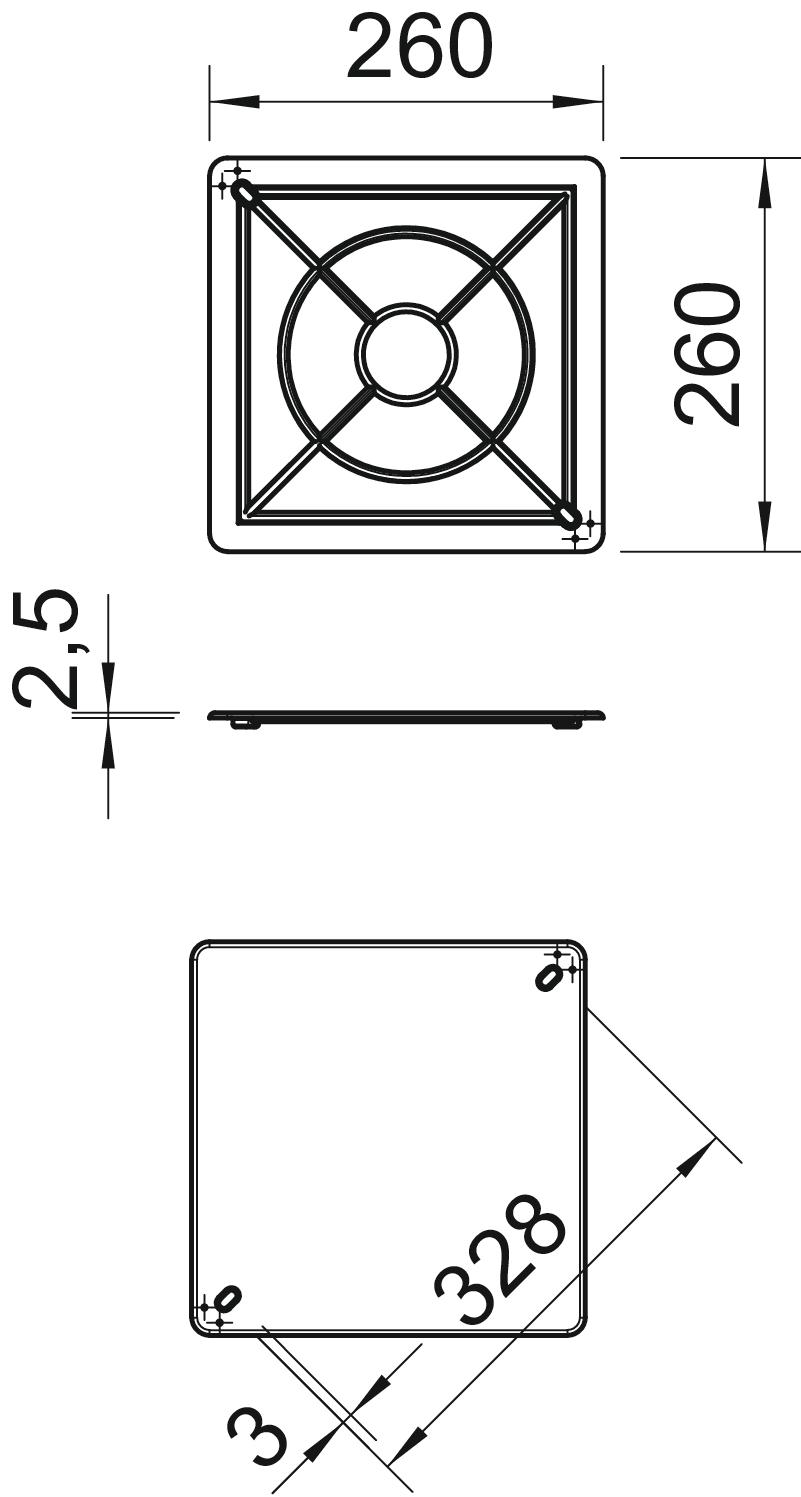

Colour White Dimension 260x260x2,5 Dimension A 328 mm Dimension B 260 mm Dimension s 2,5 mm Fastening type Screw-on lid Flame-resistant acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C Halogen-free yes Height 2,5 mm Length 260 mm Material Polystyrene Sealable yes Shape Square Width 260 mm With bolts no - All types
- Downloads
-
Data sheet UV 250 D / 2003256 , 0.18MB , pdf
