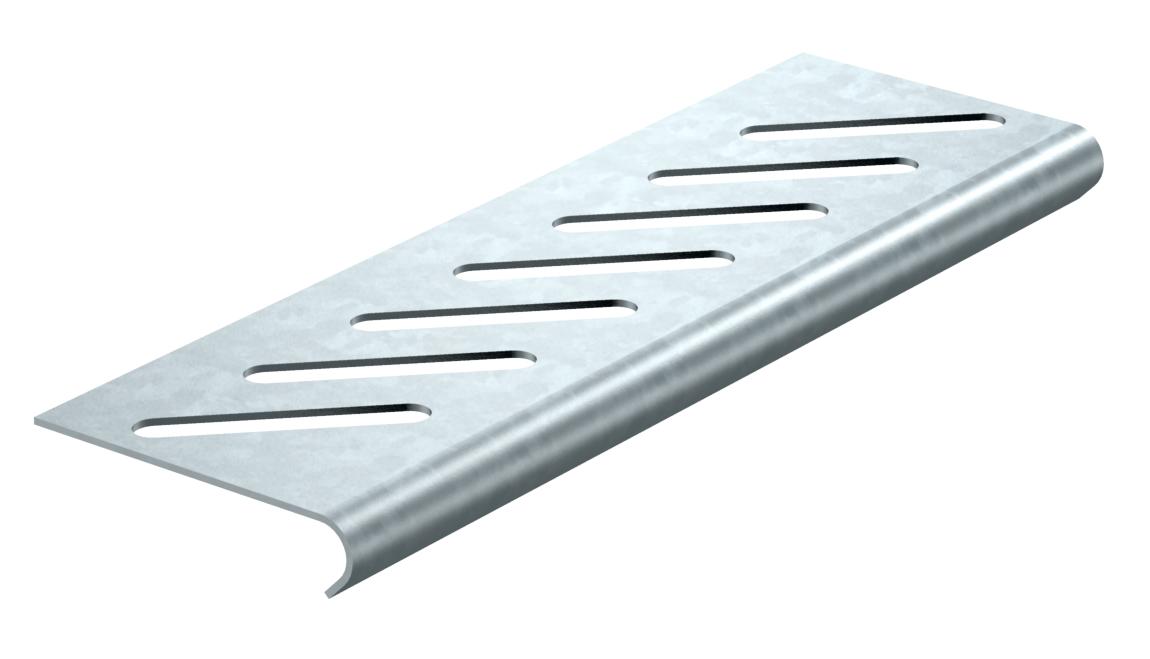

Bottom end plate FS 100
morepic-1 morepic-2

Bottom end plate FS

Item no. 7083106 | EAN 4012196231072

Product description
Product description
Bottom end plate for floor reinforcement at the ends of the cable tray and as cable protection.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Colour zinc

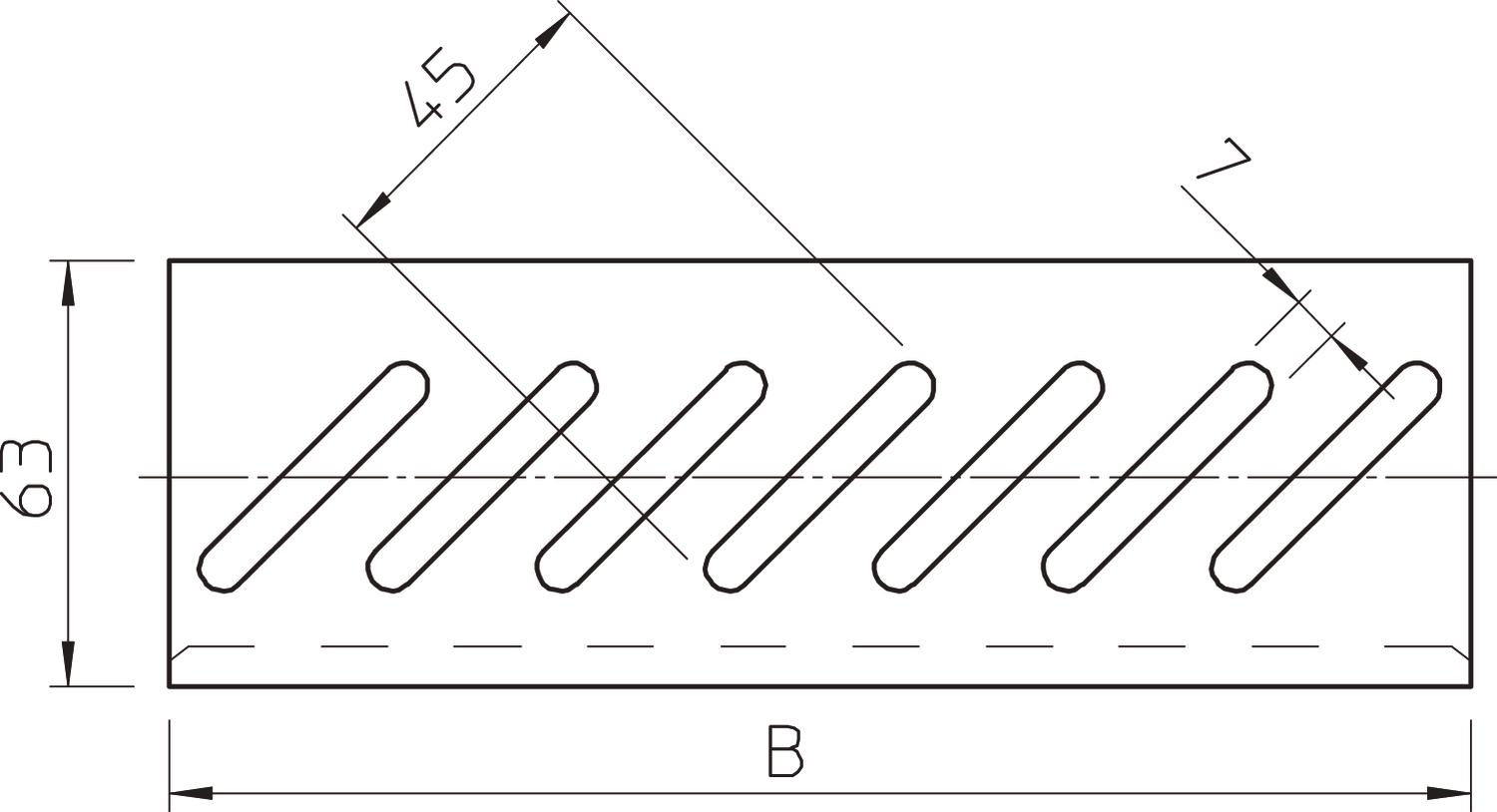

Dimension B100mm
Dimension B 100 mm
Maintain electrical functions yes
Material Steel
Rustproof steel, pickled no
Surface Strip galvanized
Wide-span version no
Width 100 mm
Width 4 in
All types

All types

Types Width Item no. Quantity SSU
BEB 050 FS 50 mm 7083041
1 piece
BEB 100 FS 100 mm 7083106
1 piece
BEB 150 FS 150 mm 7083157
1 piece
BEB 200 FS 200 mm 7083203
1 piece
BEB 300 FS 300 mm 7083300
1 piece
BEB 400 FS 400 mm 7083408
1 piece
BEB 500 FS 500 mm 7083505
1 piece
BEB 550 FS 550 mm 7083556
1 piece
BEB 600 FS 600 mm 7083602
1 piece
Accessories

Mounting accessories

Products Types Item no. Quantity SSU
Truss-head bolt with flange nut F Truss-head bolt with flange nut F FRSB 6x12 F 6406122
100 piece
Downloads

Download

EU declaration of conformity BEB 100 FS / 7083106 , 0.10MB , pdf
Download
UK Declaration of Conformity BEB 100 FS / 7083106 , 0.14MB , pdf
Download
REACH Declaration of conformity BEB 100 FS / 7083106 , 0.12MB , pdf
Download
RoHS Declaration of conformity BEB 100 FS / 7083106 , 0.12MB , pdf
Download

BEB 100 FS / 7083106
