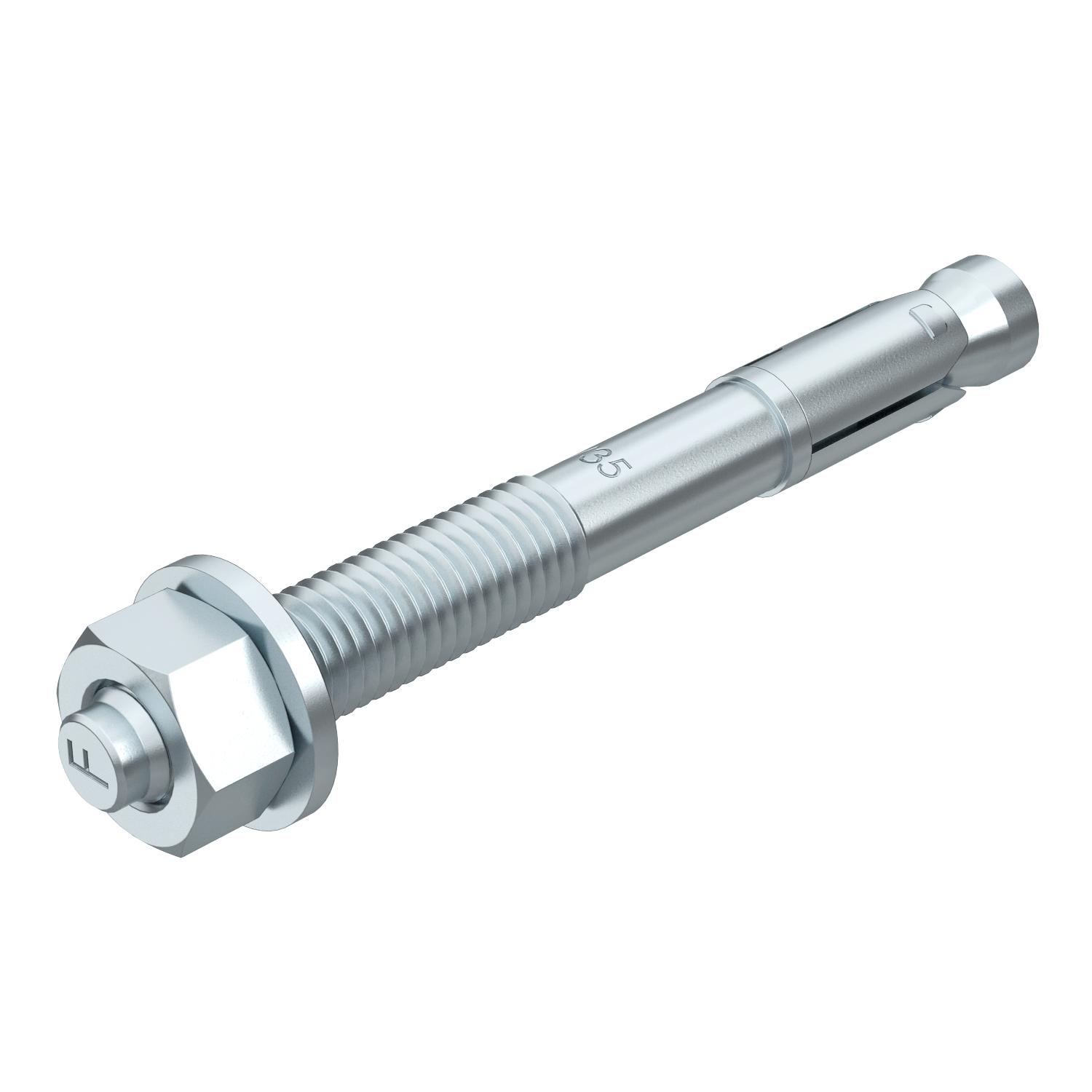

Bolt tie BZ
Item no. 3498344 | EAN 4012196592678
- Product description
-
Product description
Bolt tie BZ for the anchoring of medium-duty to heavy-duty loads, both in cracked and non-cracked concrete. It combines high approved loads with small edge distances and axial spacings.
-
- Technical data
-
Technical data

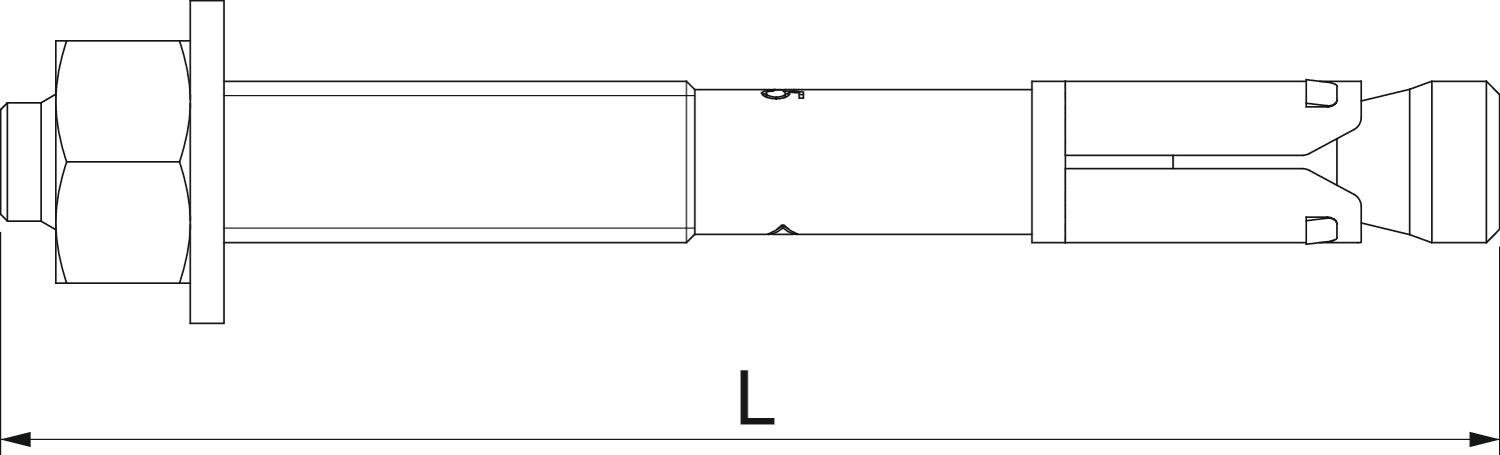

Anchor/nail/bolt version Spreading anchor Approvals available yes Clamping range, min. 150 mm Clamping strength 150 mm Dimension M10x230mm Dimension L 230 mm Drill hole depth 75 mm Drill hole diameter, min. 10 mm Length 230 mm Material Steel Permitted load range, tension zone 4,3 Surface Electrogalvanized Thread M10 Thread metric 10 Thread type Metric Version for For knocking in - All types
- Downloads
-
Data sheet BZ 10-150/230 / 3498344 , 0.17MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfDeclaration of conformity BZ 10-150/230 / 3498344 , 0.29MB , pdfREACH Declaration of conformity BZ 10-150/230 / 3498344 , 0.12MB , pdfRoHS Declaration of conformity BZ 10-150/230 / 3498344 , 0.12MB , pdfApproval certificate European Technical Approval MKT bolt tie BZ, BZ-IG , 0.13MB , pdfMounting instructions General information on the mounting , 2.61MB , pdfMounting instructions Mounting instructions, BZ, BZ-U bolt tie , 0.98MB , pdf
