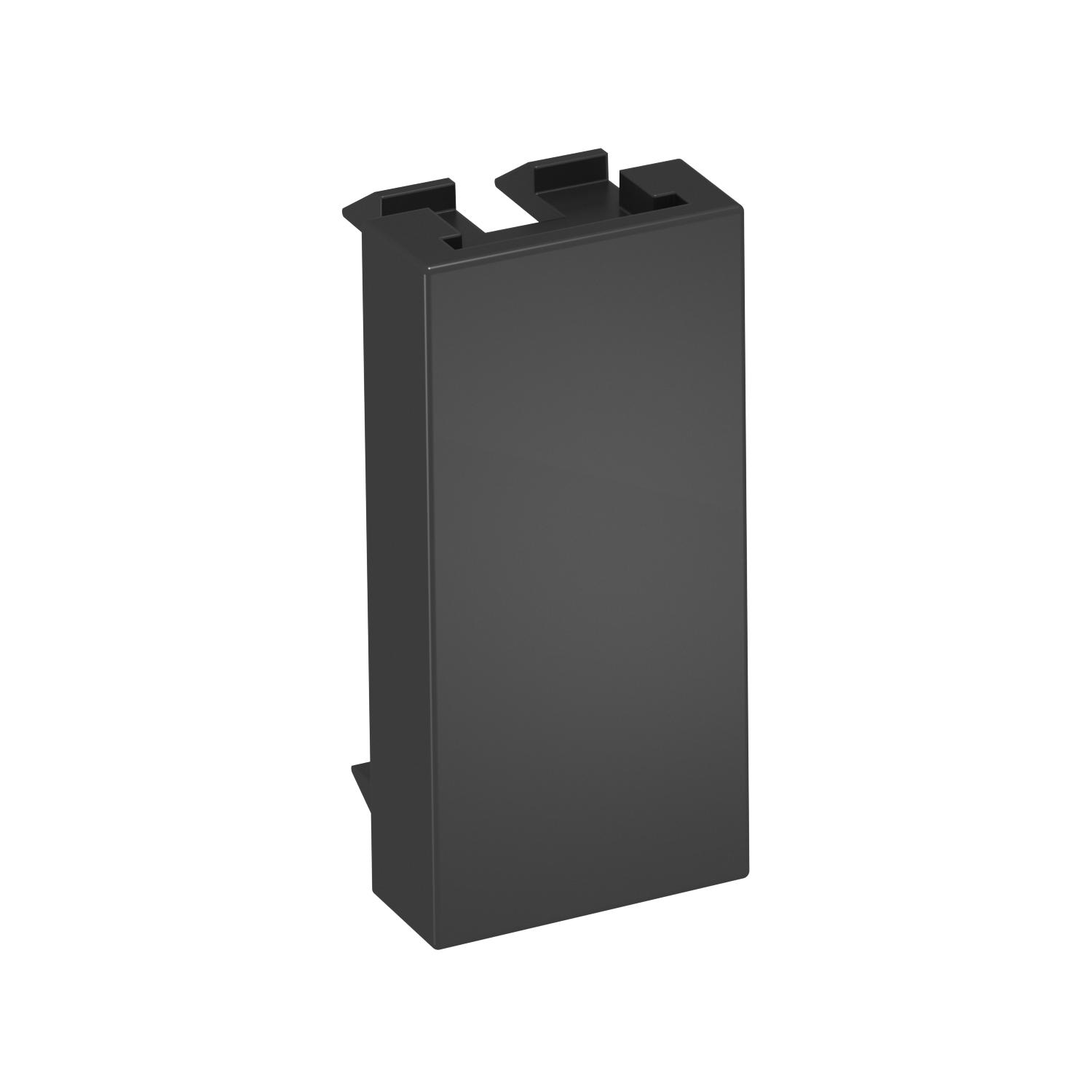

Blanking cover, 1/2 module, black-grey
Item no. 6117415 | EAN 4012195701286
- Product description
-
Product descriptionBlanking cover for closing off empty spaces for a half device (1/2 module).
For installation in Rapid 45 device installation ducts, Rapid 80 device installation ducts, service poles and underfloor systems.
-
- Technical data
-
Technical data

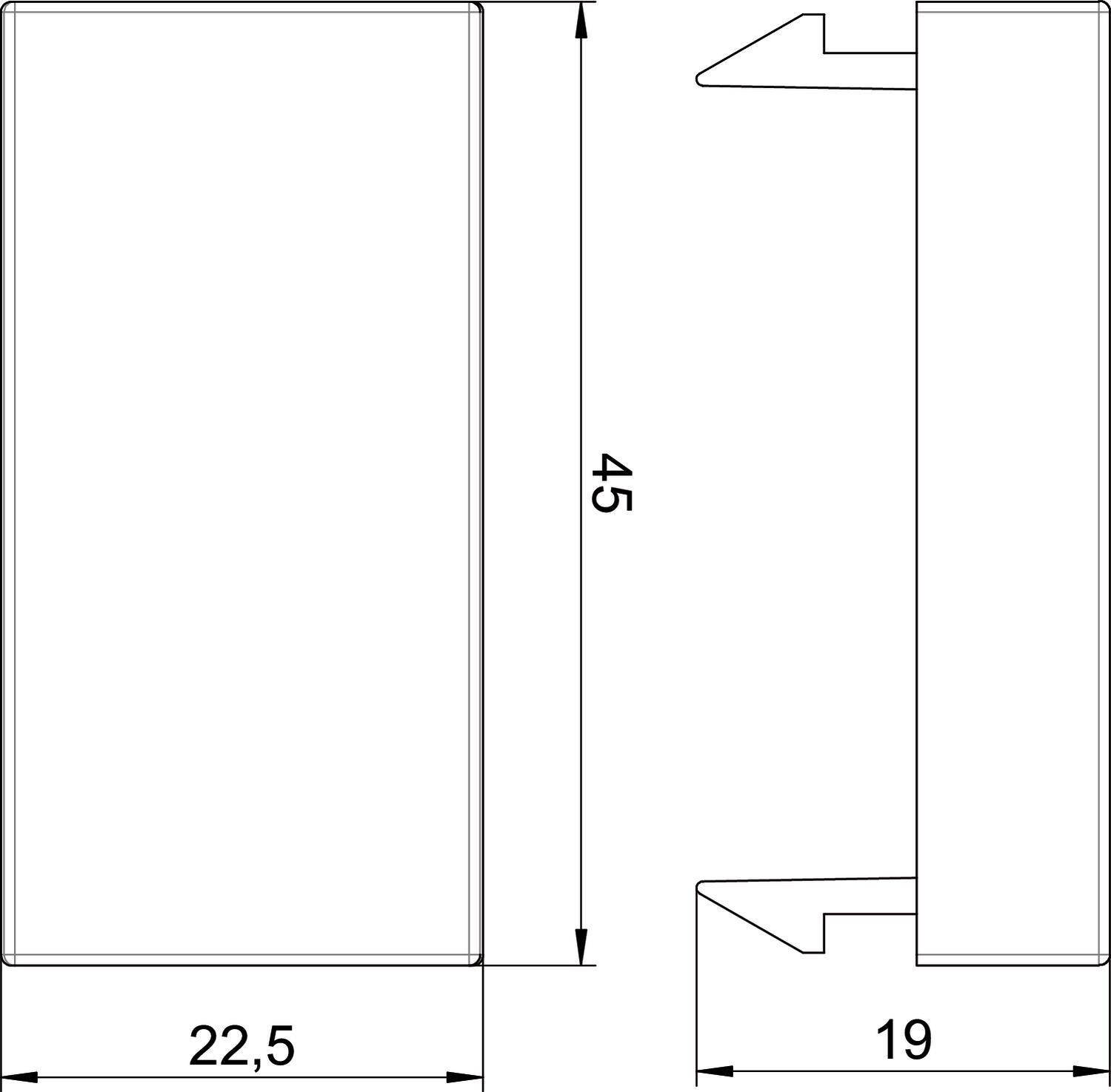

Antibacterial treatment no Changeable lense/symbol no Colour Black-grey; RAL 7021 Depth 9 mm Dimension 45x22,5mm Fastening type Clamp fastening Flush-mounted version yes Halogen-free no Height 45 mm Hinged cover no Mounting direction Horizontal Printed push-button label Without Protection rating Other Scannable symbol/barrier-free [Bitte prüfen, ob so gemeint. Ist das technische Scannen gemeint oder aber das Fühlen vom Symbol no Suitable for built-in installations no Suitable for device installation ducts yes Suitable for flush-mounted installations no Suitable for underfloor duct socket no Surface version Matt Text field/inscription field no Transparent no Use of cover/operating element for installation switch programme Panel Version for cover/operating element for installation switch programme Other Width 22,5 mm - All types
- Downloads
-
Data sheet ADP-B SWGR0.5 / 6117415 , 0.19MB , pdfCatalogue Installation systems , 28.45MB , pdfEU declaration of conformity ADP-B SWGR0.5 / 6117415 , 0.06MB , pdfREACH Declaration of conformity ADP-B SWGR0.5 / 6117415 , 0.12MB , pdfRoHS Declaration of conformity ADP-B SWGR0.5 / 6117415 , 0.12MB , pdfNo invitation to tender text is available for this product.
