Product description

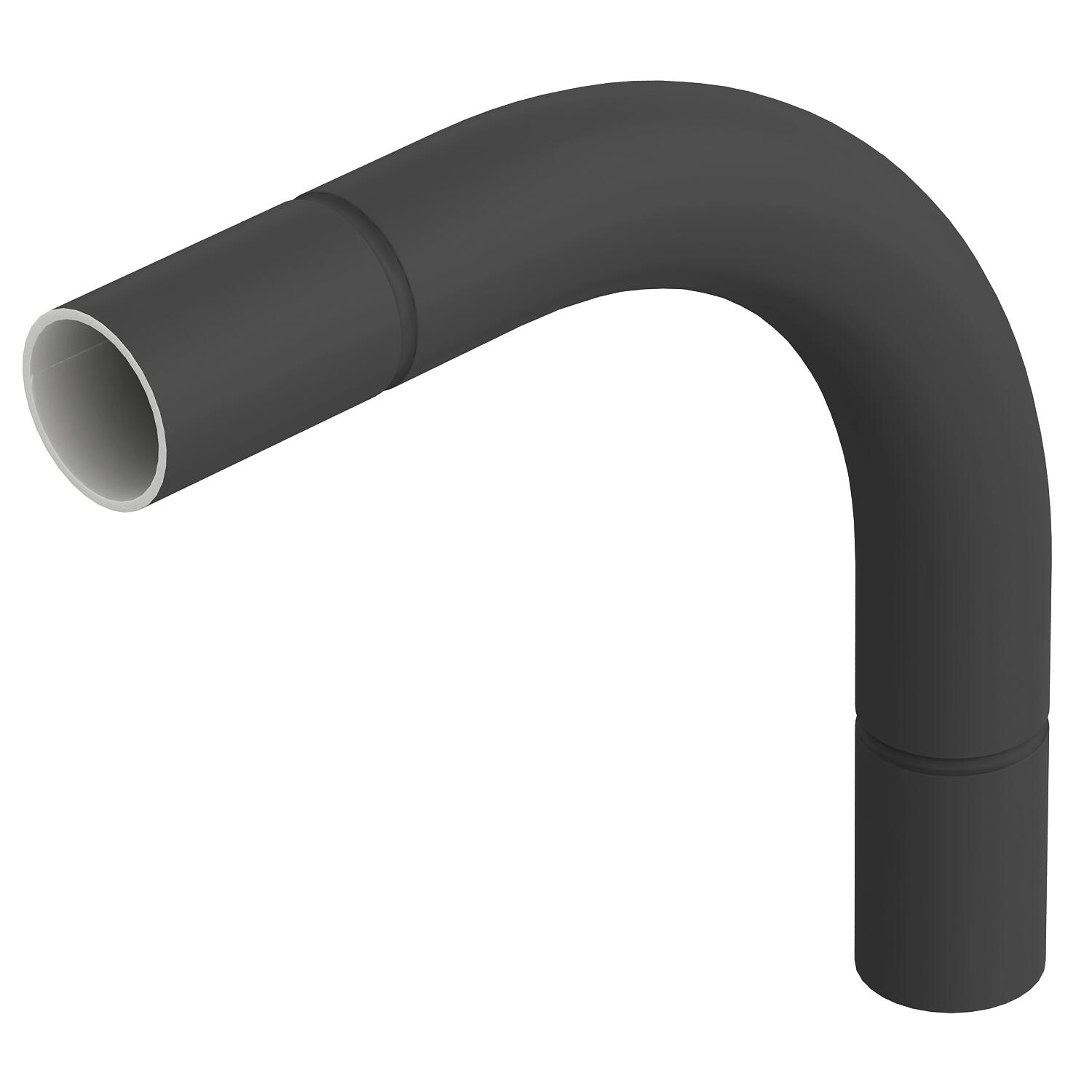

90° bend with moulded sleeves, for electrical installation pipes according to EN 61386-1. With burr-free inner wall.
- Technical data
-
Technical data

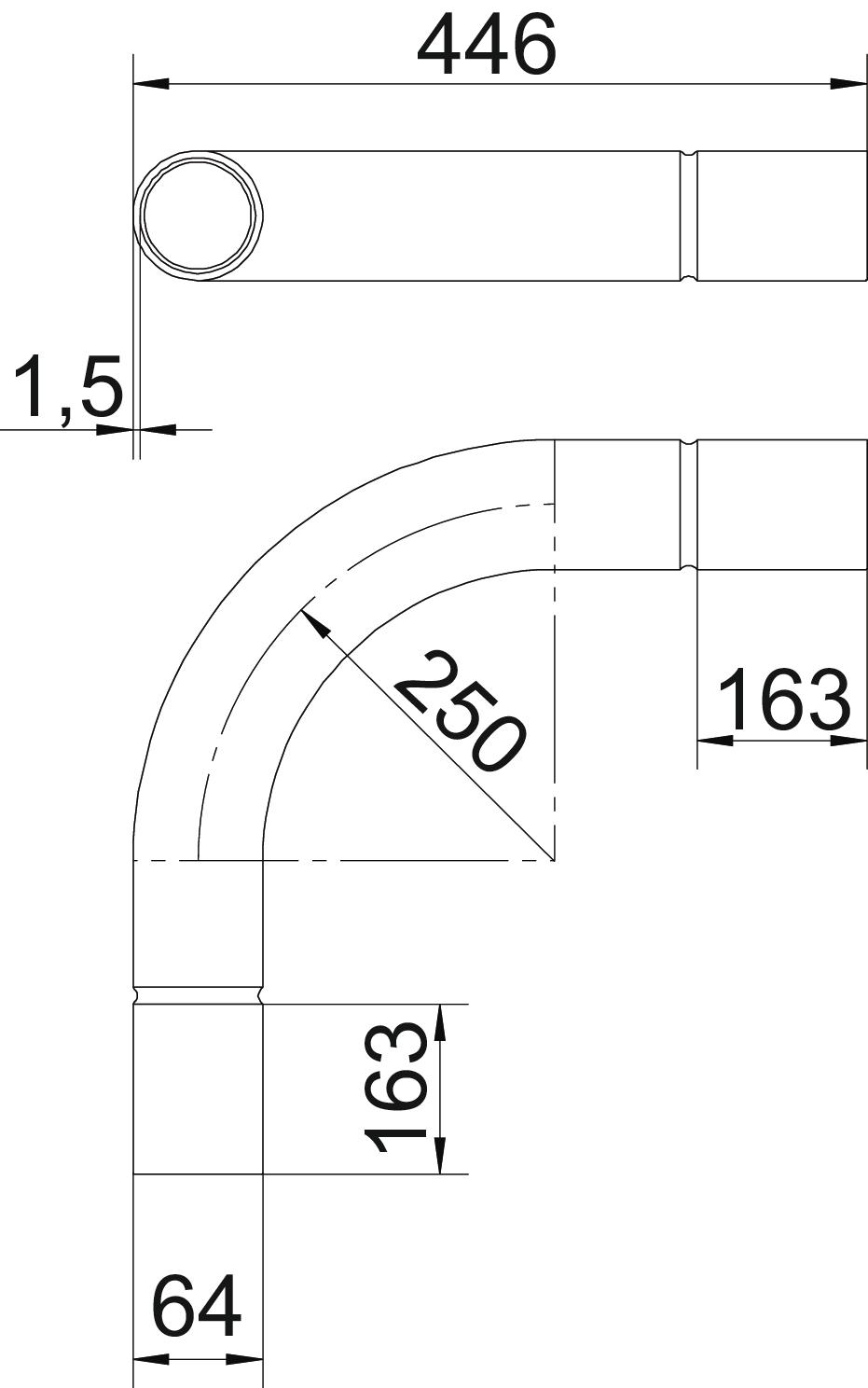

Angle of the bend 90 ° Brushed surface no Colour Jet black; RAL 9005 Dimension Ø63mm Dimension A 163 mm Dimension B 446 mm Dimension d 64 mm Dimension D 67 mm Dimension l 90 mm Dimension m (mm) M63 Dimension R 250 mm Dimension t 1,5 mm Flexible no For nominal pipe diameter 63 mm Halogen-free no Material Steel Polished surface no Surface PES50 - Polyester/epoxy Two-part no Version for Connector With inspection opening and lid no With sleeve yes - All types
- Downloads
-
Data sheet SBN63 SW / 2046830 , 0.20MB , pdfREACH Declaration of conformity SBN63 SW / 2046830 , 0.12MB , pdfRoHS Declaration of conformity SBN63 SW / 2046830 , 0.12MB , pdf
