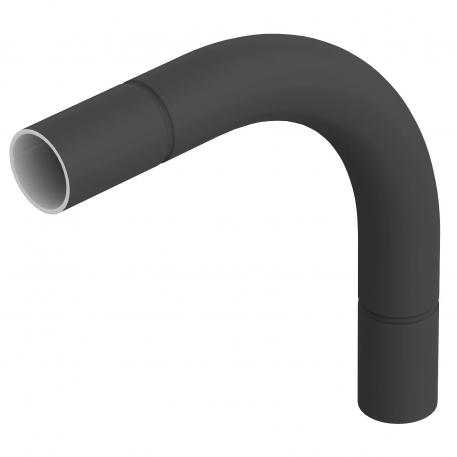

Black powder-coated steel bend, without thread

Item no. 2046829 | EAN 4012196388141

Item no. / Types

For nominal pipe diameter

Product description

Product description

90° bend with moulded sleeves, for electrical installation pipes according to EN 61386-1. With burr-free inner wall.

Technical data

Technical data

Angle of the bend	90 °
Brushed surface	no
Colour	Jet black; RAL 9005
Dimension	Ø50mm
Flexible	no
For nominal pipe diameter	50 mm
Halogen-free	no

Material	Steel
Polished surface	no
Surface	PES50 - Polyester/epoxy
Two-part	no
Version for	Connector
With inspection opening and lid	no
With sleeve	yes

Dimensions

Dimension A	131 mm
Dimension B	358 mm
Dimension D	54 mm
Dimension d	51 mm

Dimension l	60 mm
Dimension m (mm)	M50
Dimension R	200 mm
Dimension t	1,5 mm

All types

All types

Types	For nominal pipe diameter	Item no.	Quantity	SSU
SBN16 SW	16 mm	2046824	piece	15 piece
SBN20 SW	20 mm	2046825	piece	25 piece
SBN25 SW	25 mm	2046826	piece	25 piece
SBN32 SW	32 mm	2046827	piece	20 piece
SBN40 SW	40 mm	2046828	piece	15 piece
SBN50 SW	50 mm	2046829	piece	5 piece
SBN63 SW	63 mm	2046830	piece	3 piece

Downloads

Data sheet SBN50 SW / 2046829 , 0.26MB , pdf

Catalogue Connection and routing systems , 40.76MB , pdf

REACH Declaration of conformity SBN50 SW / 2046829 , 0.12MB , pdf

Download

RoHS Declaration of conformity SBN50 SW / 2046829 , 0.12MB , pdf

Download

Product graphic SBN50 SW / 2046829, 40.08 kB, jpg

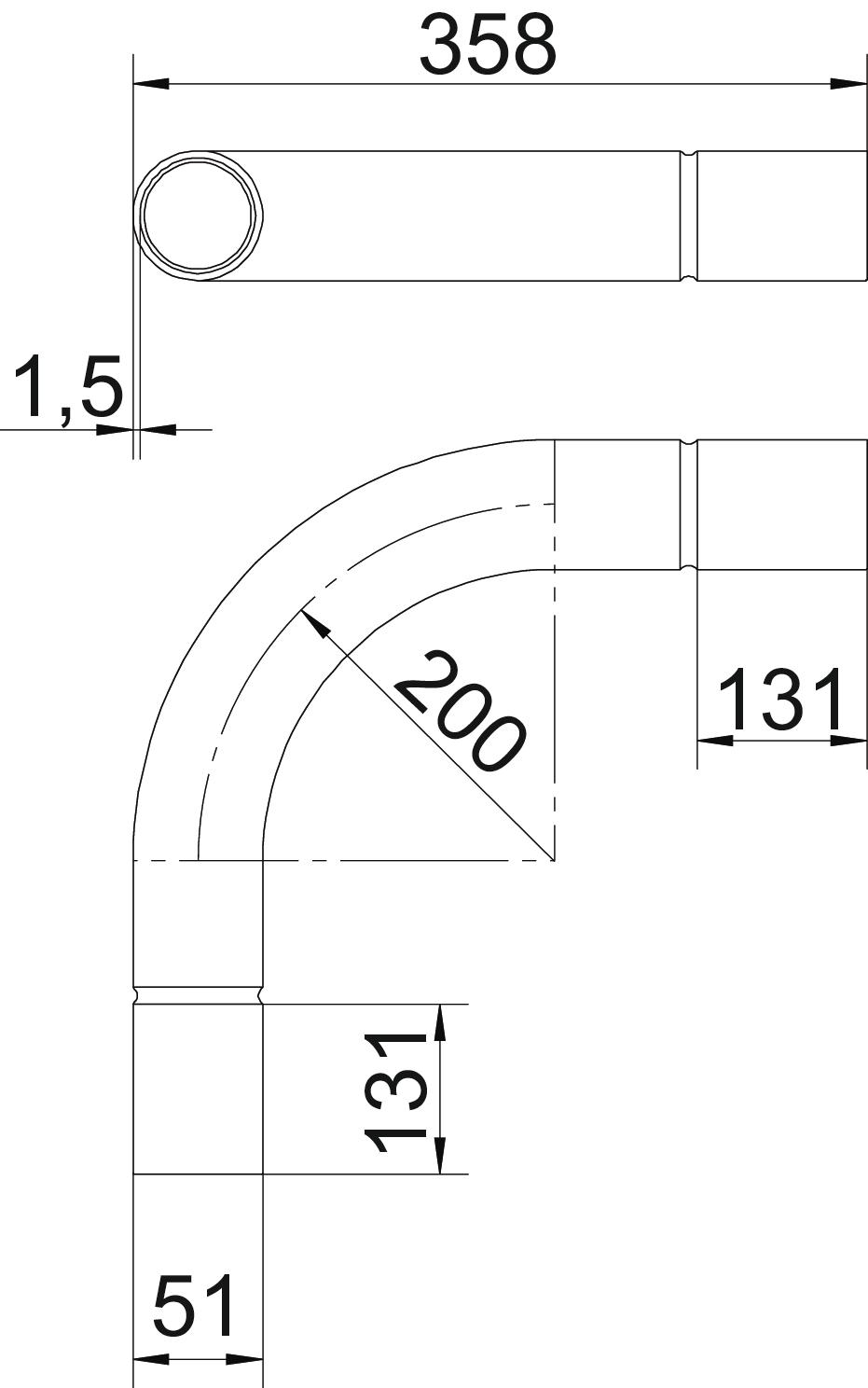

Scale drawing SBN50 SW / 2046829, 54.81 kB, jpg

SBN50 SW / 2046829

2046829_KSTP1.stp, 82.12 kB
