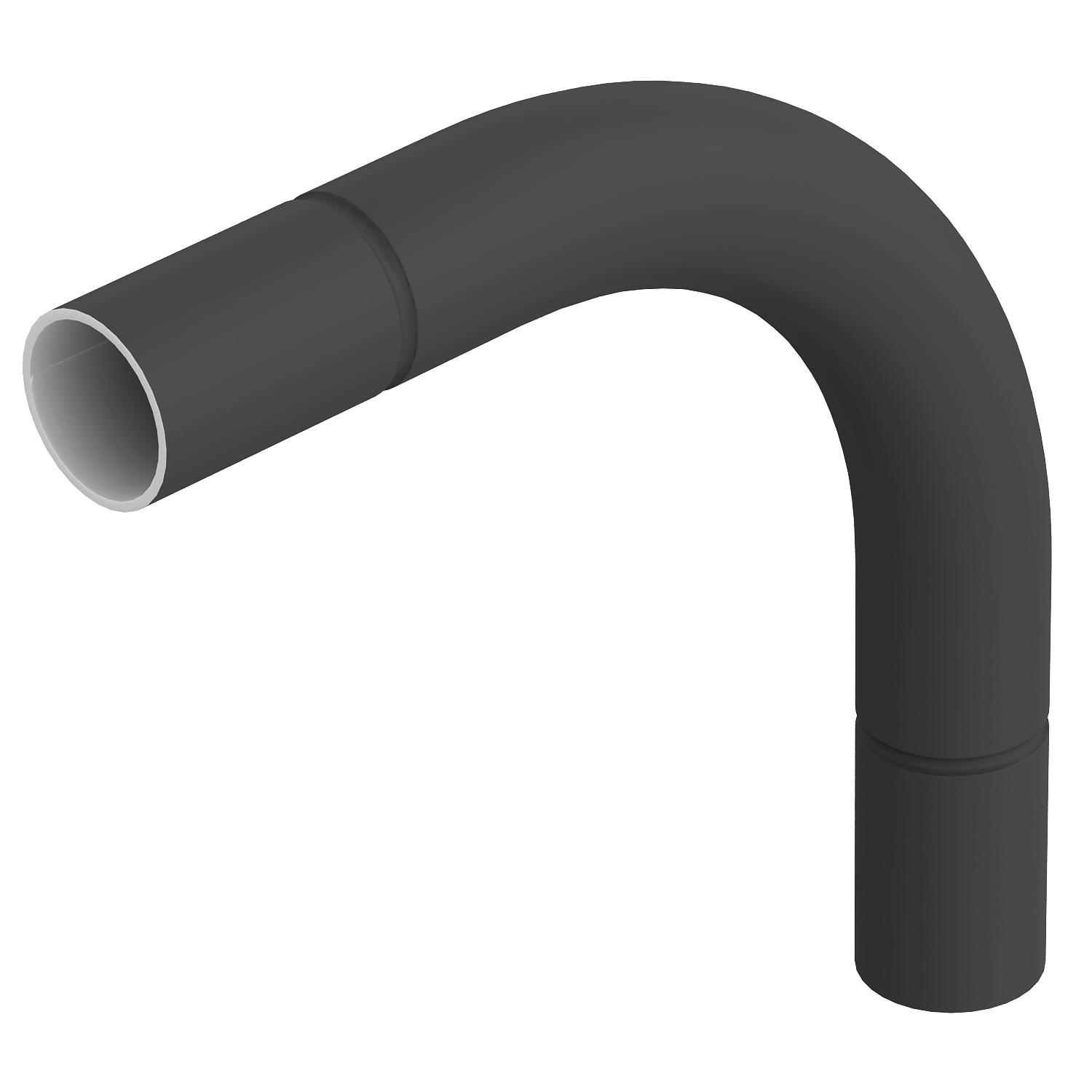

Black powder-coated steel bend, without thread

Item no. / Types

For nominal pipe diameter

Product description

Product description

90° bend with moulded sleeves, for electrical installation pipes according to EN 61386-1. With burr-free inner wall.

Technical data

Dimension t	1,5 mm
Flexible	no
For nominal pipe diameter	40 mm
Halogen-free	no
Material	Steel
Polished surface	no
Surface	PES50 - Polyester/epoxy
Two-part	no
Version for	Connector
With inspection opening and lid	no
With sleeve	yes

All types

Types	For nominal pipe diameter	Item no.	Quantity	SSU
SBN16 SW	16 mm	2046824	piece	15 piece
SBN20 SW	20 mm	2046825	piece	25 piece
SBN25 SW	25 mm	2046826	piece	25 piece
SBN32 SW	32 mm	2046827	piece	20 piece
SBN40 SW	40 mm	2046828	piece	15 piece
SBN50 SW	50 mm	2046829	piece	5 piece
SBN63 SW	63 mm	2046830	piece	3 piece
