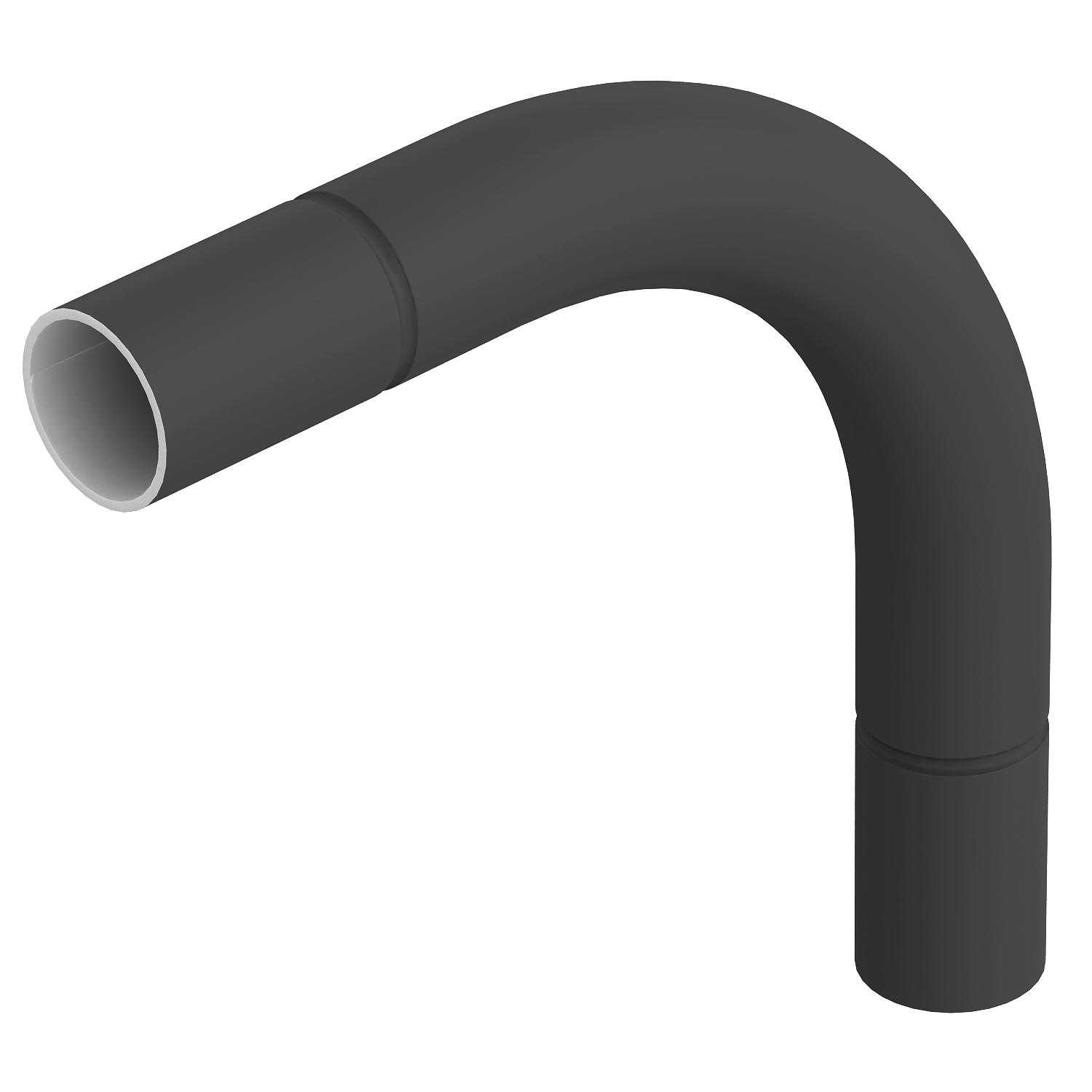

Black powder-coated steel bend, without thread
Item no. 2046825 | EAN 4012196388073
- Product description
-
Product description
90° bend with moulded sleeves, for electrical installation pipes according to EN 61386-1. With burr-free inner wall.
-
- Technical data
-
Technical data

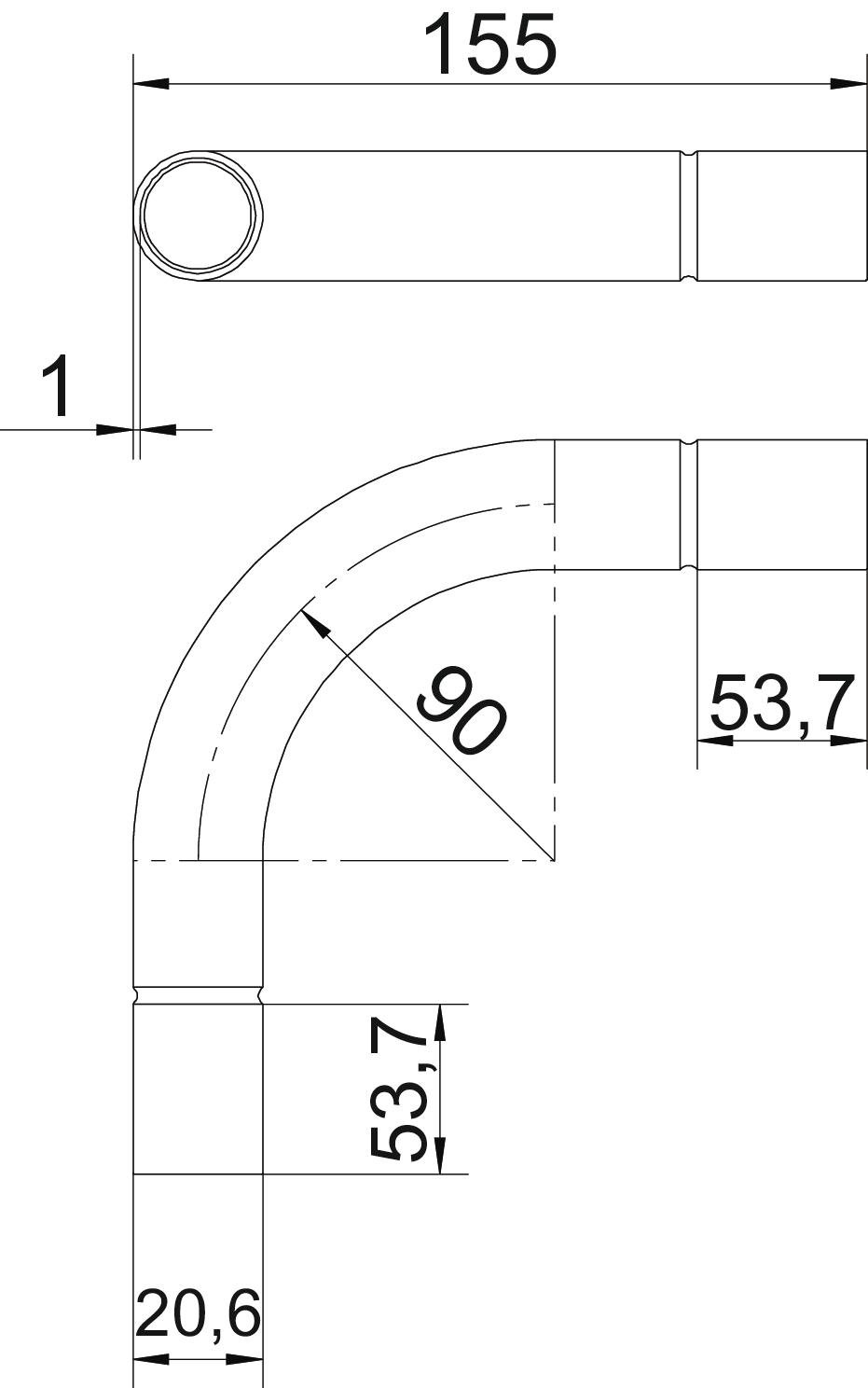

Angle of the bend 90 ° Brushed surface no Colour Jet black; RAL 9005 Dimension Ø20mm Dimension A 53,7 mm Dimension B 155 mm Dimension d 20,6 mm Dimension D 22,6 mm Dimension l 30 mm Dimension m (mm) M20 Dimension R 90 mm Dimension t 1 mm Flexible no For nominal pipe diameter 20 mm Halogen-free no Material Steel Polished surface no Surface PES50 - Polyester/epoxy Two-part no Version for Connector With inspection opening and lid no With sleeve yes - All types
