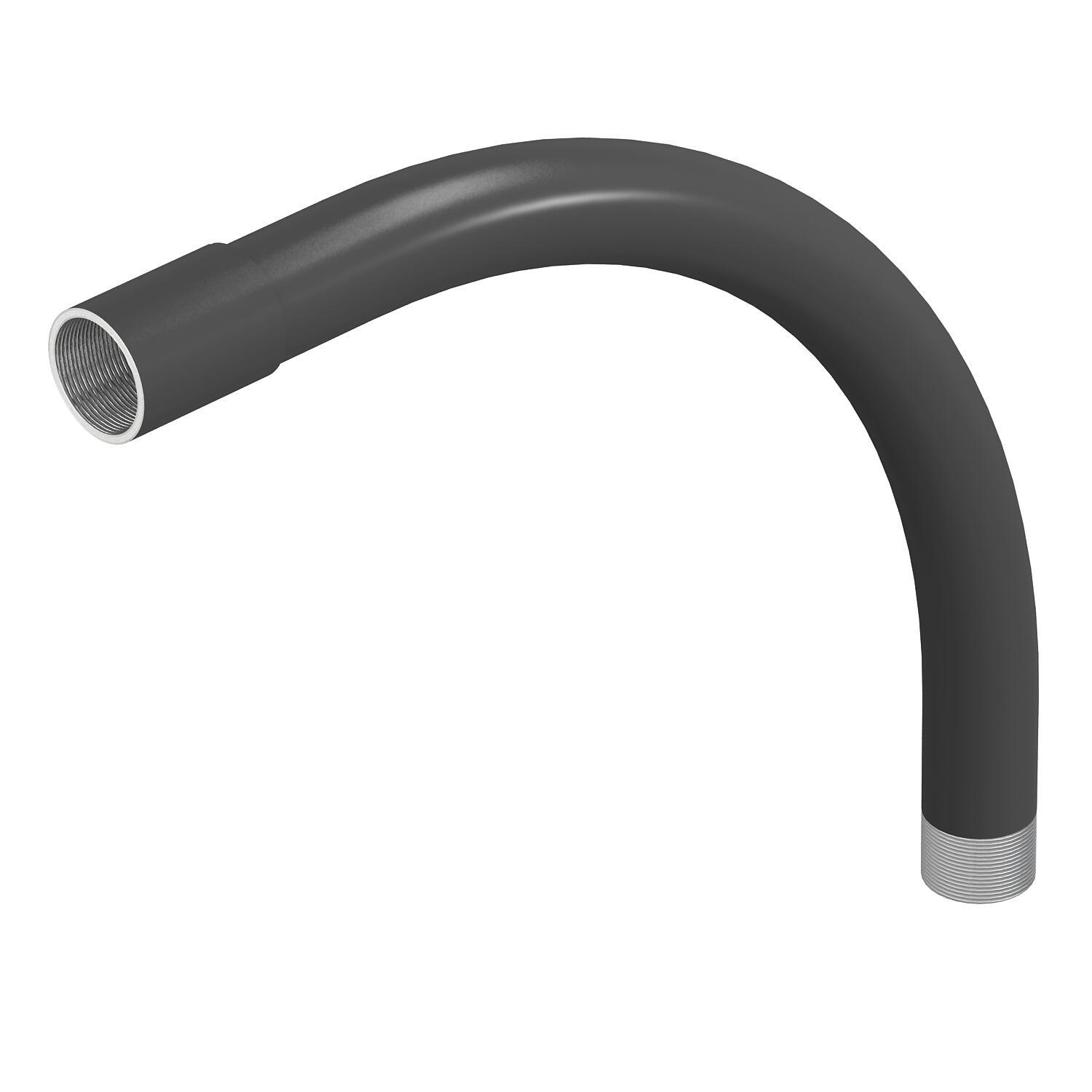

Black powder-coated steel bend, with thread
Item no. 2046798 | EAN 4012196387779
- Product description
-
Product description
90° bend for electrical installation pipes according to EN 61386-1 with threaded ends to DIN EN 60423. With burr-free inner wall.
One connection sleeve is already screwed onto each pipe bend.
-
- Technical data
-
Technical data
Angle of the bend 90 ° Brushed surface no Colour Jet black; RAL 9005 Dimension M50x1,5 Flexible no For nominal pipe diameter 50 mm Halogen-free no Material Steel Polished surface no Surface PES50 - Polyester/epoxy Thread M50x1,5 Two-part no Version for Thread With inspection opening and lid no With sleeve yes Dimensions

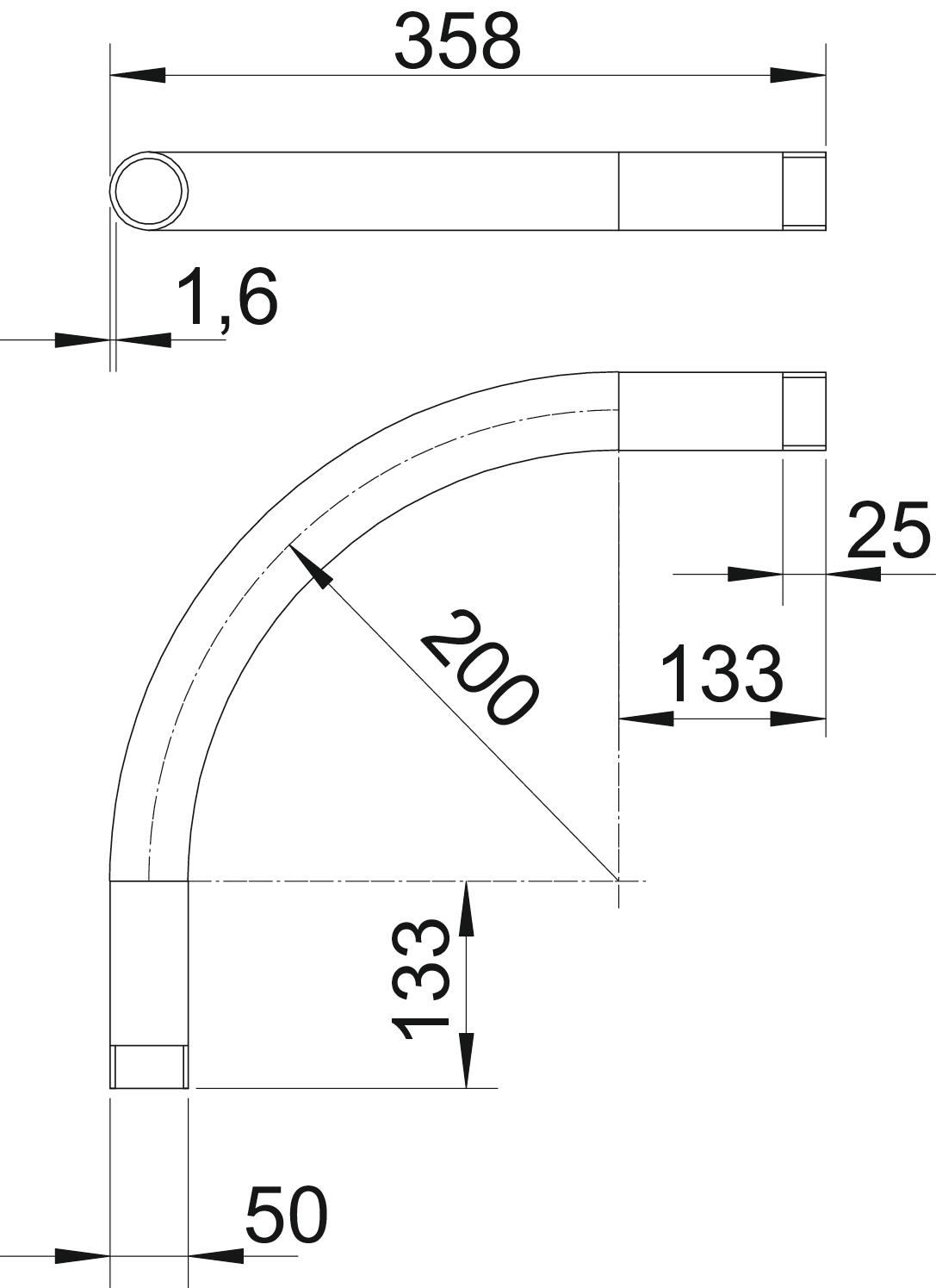

Dimension A 133 mm Dimension B 358 mm Dimension D 50 mm Dimension l 25 mm Dimension m (mm) M50 Dimension R 200 mm Dimension t 1,6 mm - All types
- Downloads
-
Data sheet SBNM50 SW / 2046798 , 0.31MB , pdf
