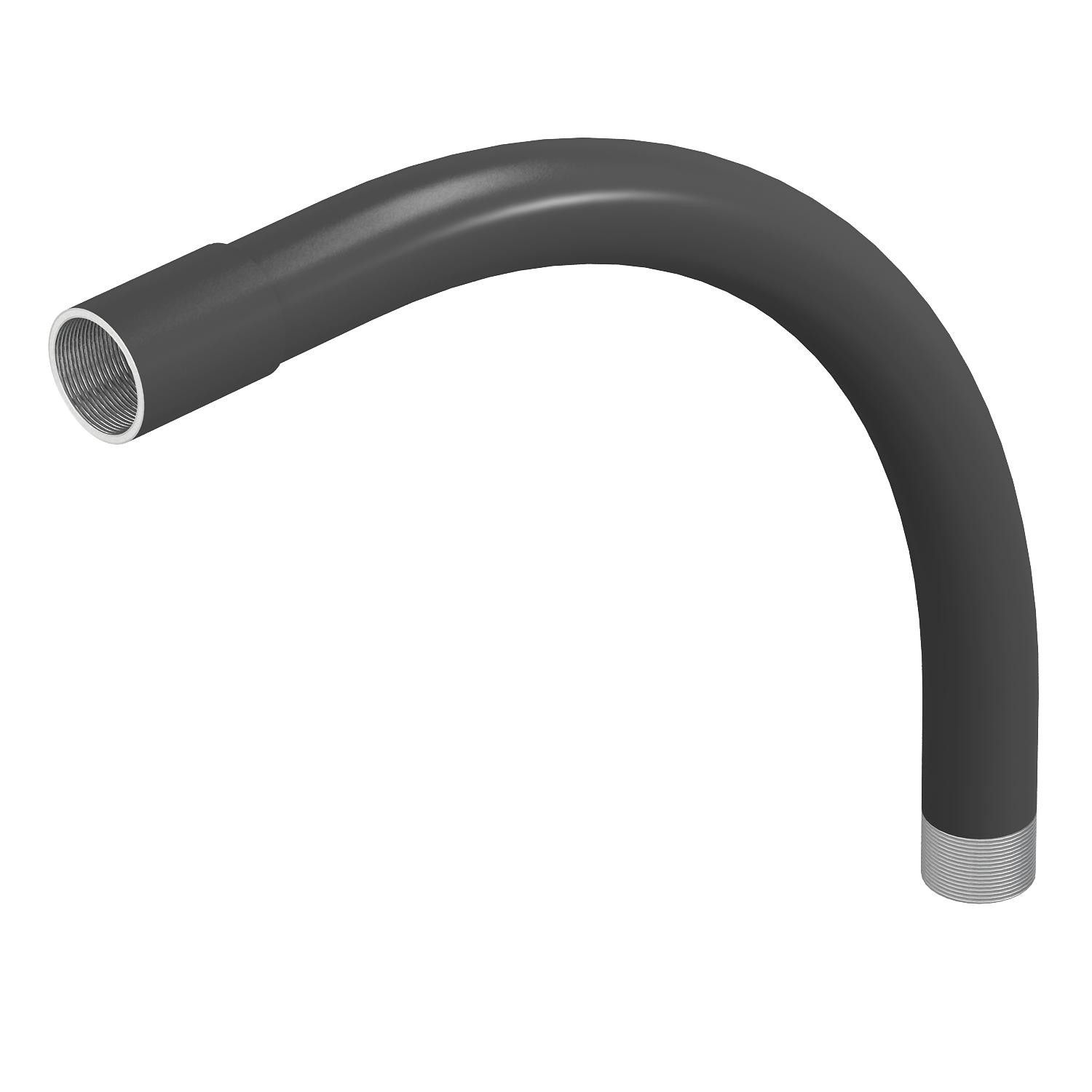

Black powder-coated steel bend, with thread
Item no. 2046796 | EAN 4012196387755
- Product description
-
Product description
90° bend for electrical installation pipes according to EN 61386-1 with threaded ends to DIN EN 60423. With burr-free inner wall.
One connection sleeve is already screwed onto each pipe bend.
-
- Technical data
-
Technical data

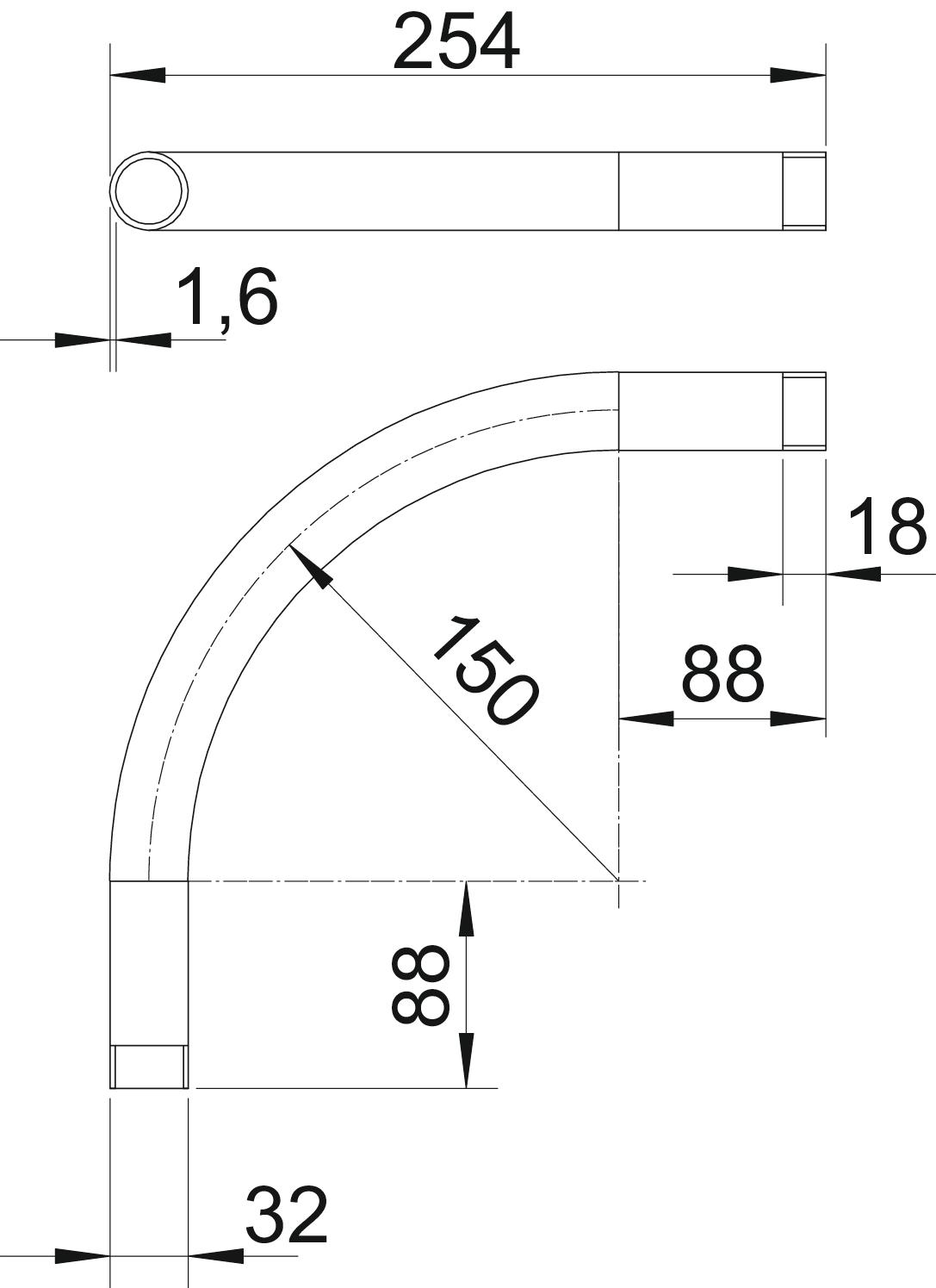

Angle of the bend 90 ° Brushed surface no Colour Jet black; RAL 9005 Dimension M32x1,5 Dimension A 88 mm Dimension B 254 mm Dimension D 32 mm Dimension l 18 mm Dimension m (mm) M32 Dimension R 150 mm Dimension t 1,6 mm Flexible no For nominal pipe diameter 32 mm Halogen-free no Material Steel Polished surface no Surface PES50 - Polyester/epoxy Thread M32x1,5 Two-part no Version for Thread With inspection opening and lid no With sleeve yes - All types
- Downloads
-
Data sheet SBNM32 SW / 2046796 , 0.22MB , pdf
