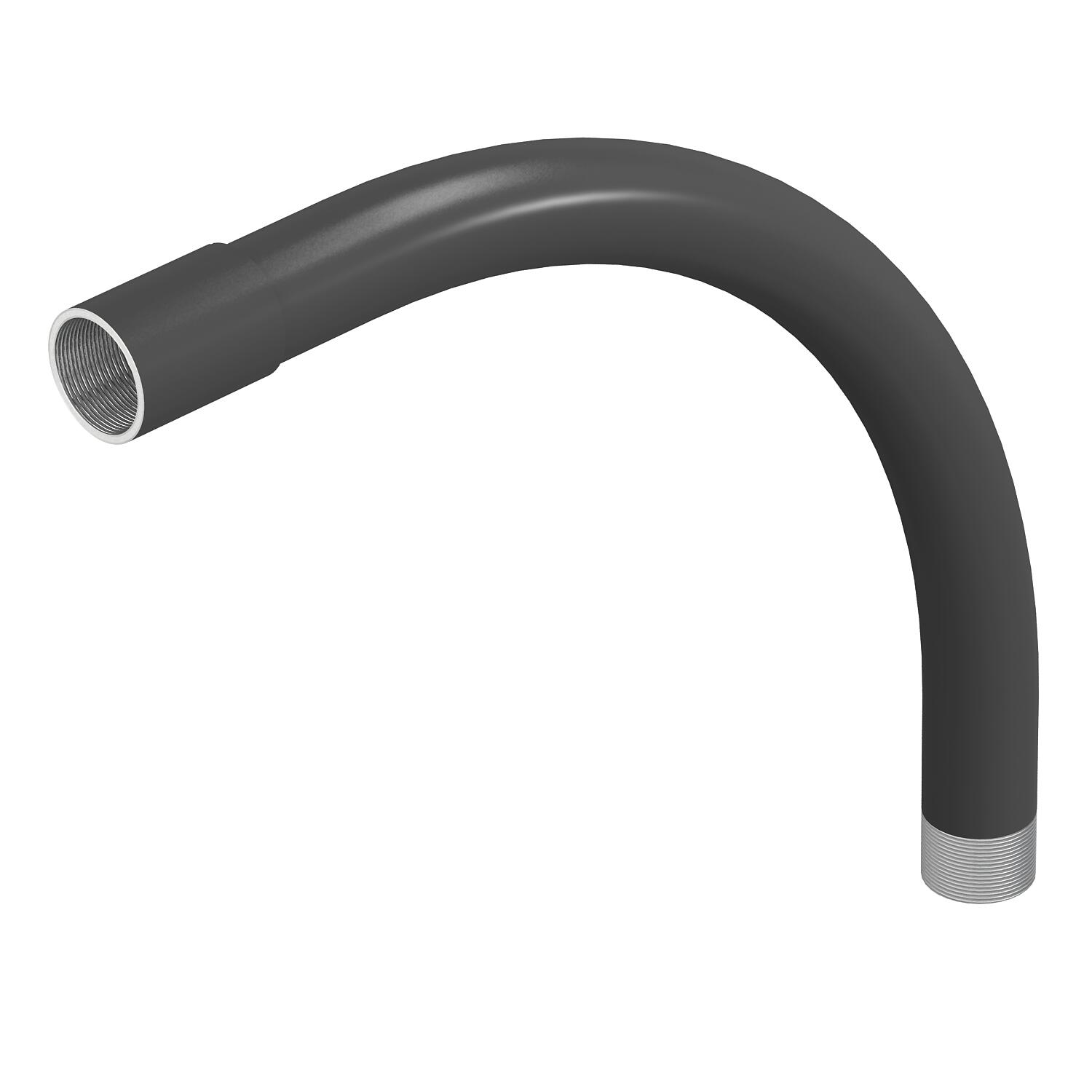

Black powder-coated steel bend, with thread M20x1,5

Black powder-coated steel bend, with thread

Item no. 2046794 | EAN 4012196387717

Item no. / Types

Thread

Product description

Product description

90° bend for electrical installation pipes according to EN 61386-1 with threaded ends to DIN EN 60423. With burr-free inner wall.
One connection sleeve is already screwed onto each pipe bend.

Technical data

Technical data

Angle of the bend	90 °
Brushed surface	no
Colour	Jet black; RAL 9005
Dimension	M20x1,5

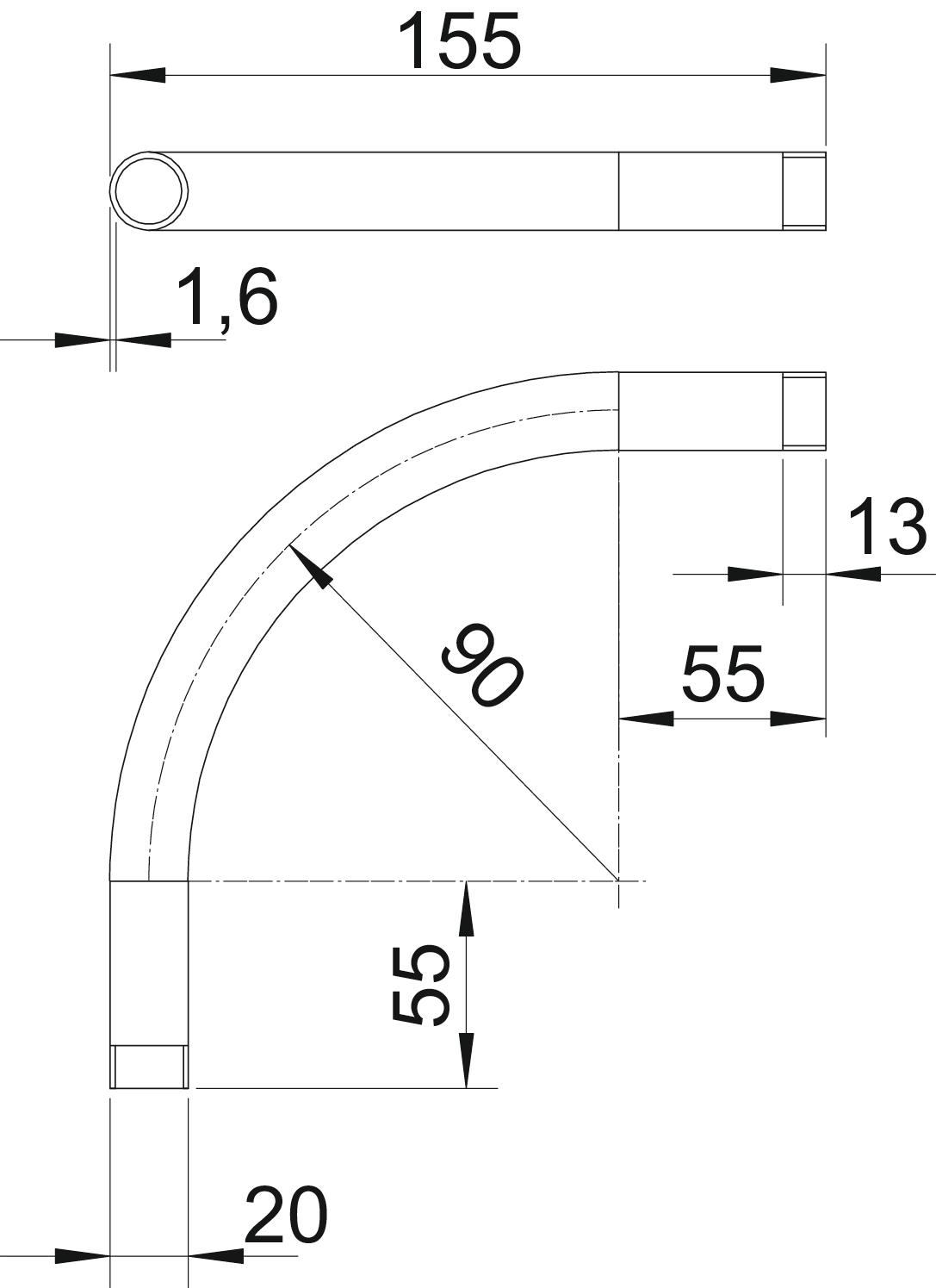

Dimension A	55 mm
Dimension B	155 mm
Dimension D	20 mm
Dimension l	13 mm
Dimension m (mm)	M20
Dimension R	90 mm
Dimension t	1,6 mm

Flexible	no
For nominal pipe diameter	20 mm
Halogen-free	no
Material	Steel
Polished surface	no
Surface	PES50 - Polyester/epoxy
Thread	M20x1,5
Two-part	no
Version for	Thread
With inspection opening and lid	no
With sleeve	yes

All types

All types

Types	Thread	Item no.	Quantity	SSU
SBNM16 SW	M16x1,5	2046793	piece	15 piece
SBNM20 SW	M20x1,5	2046794	piece	25 piece
SBNM25 SW	M25x1,5	2046795	piece	25 piece
SBNM32 SW	M32x1,5	2046796	piece	20 piece
SBNM40 SW	M40x1,5	2046797	piece	15 piece
SBNM50 SW	M50x1,5	2046798	piece	5 piece
SBNM63 SW	M63x1,5	2046799	piece	3 piece
