BKRS FT support bracket
Item no. 6044541 | EAN 4012196695096
- Product description
-

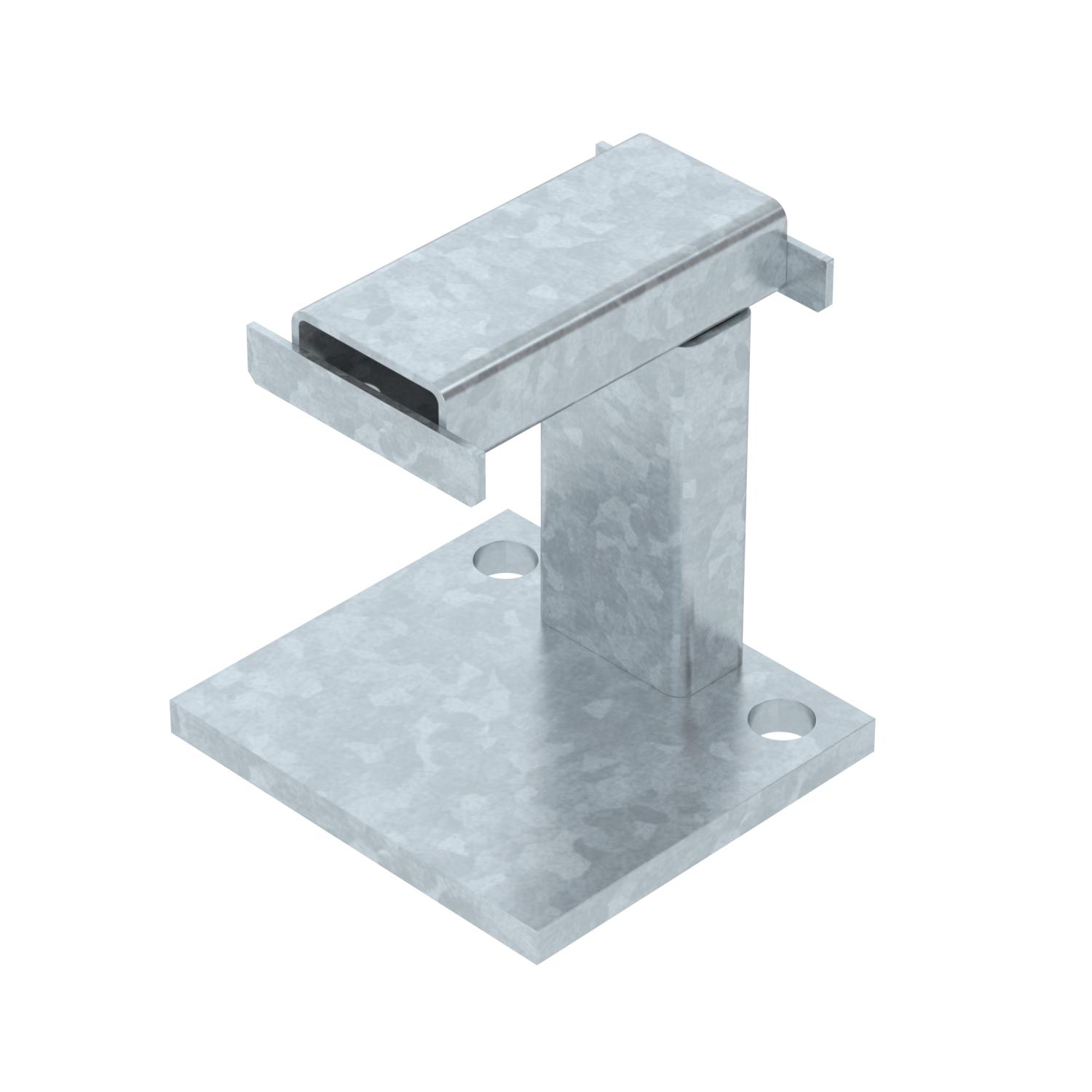

Product descriptionSupport bracket, made of closed rectangular steel pipe, as a stand-off of the walkable cable tray system.
-
- Technical data
-
Technical data

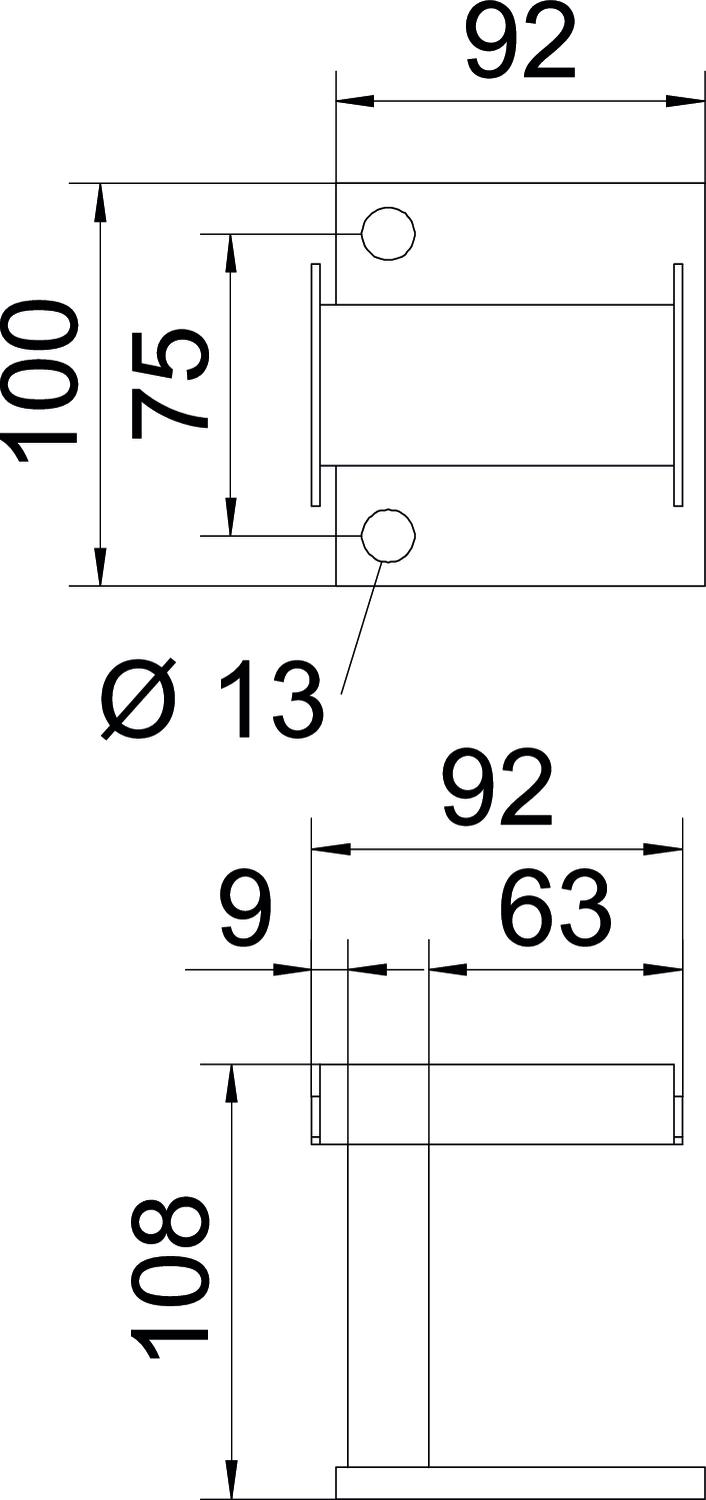

Colour zinc Dimension B=100 Dimension B 92 mm Dimension b1 11 mm Dimension b2 61 mm Dimension D 13 mm for width max. 100 mm for width min. 100 Height 108 mm Length 100 mm Material Steel Rustproof steel, pickled no Suitable for cable ladder no Suitable for cable tray yes Suitable for mesh cable tray no Surface Hot-dip galvanised Tray fastening Screw-on Version for Miscellaneous Version for Support bracket Width 98 mm - All types
- Downloads
-
Data sheet STA BKRS 100 FT / 6044541 , 0.19MB , pdfEU declaration of conformity STA BKRS 100 FT / 6044541 , 0.13MB , pdfREACH Declaration of conformity STA BKRS 100 FT / 6044541 , 0.12MB , pdfRoHS Declaration of conformity STA BKRS 100 FT / 6044541 , 0.13MB , pdfMounting instructions Mounting instructions, BKRS walkable cable tray systems for Porsche AG , 0.06MB , pdfMounting instructions BKRS Begehbare Kabelrinnensysteme , 5.36MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
