BKRS FT support bracket
Item no. 6044553 | EAN 4012196695133
- Product description
-

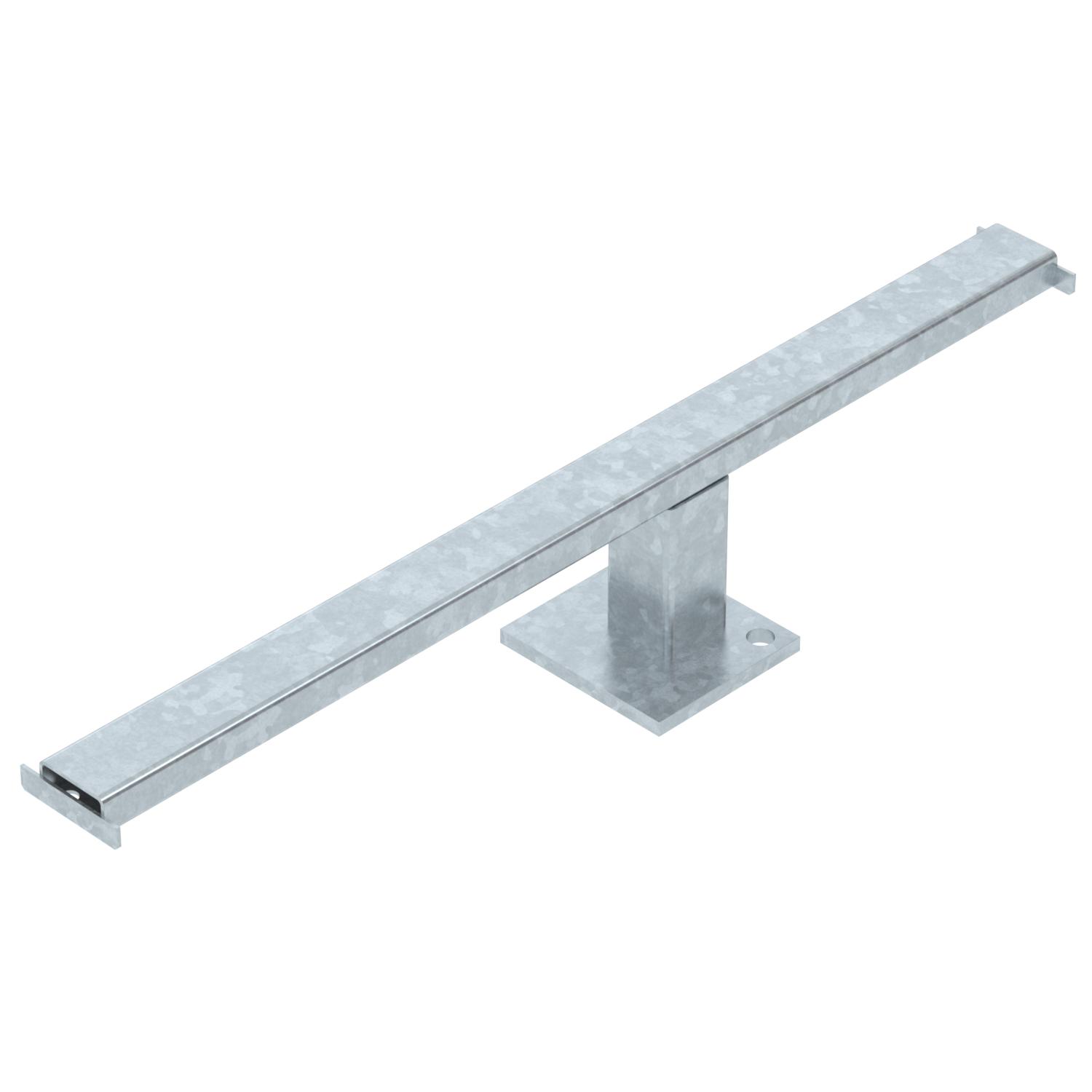

Product descriptionSupport bracket, made of closed rectangular steel pipe, as a stand-off of the walkable cable tray system.
-
- Technical data
-
Technical data

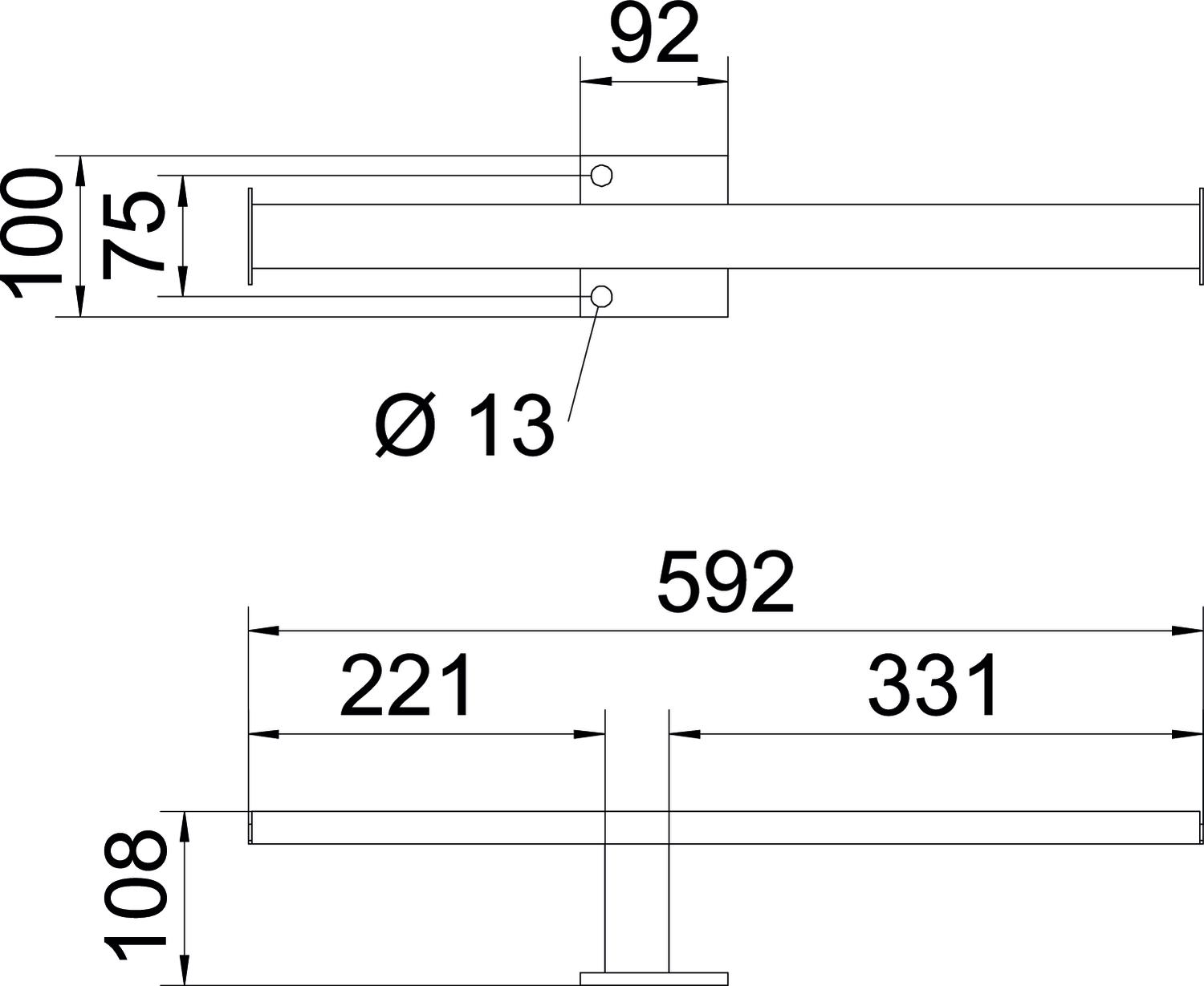

Colour zinc Dimension B=600 Dimension B 592 mm Dimension b1 223 mm Dimension b2 329 mm Dimension D 13 mm for width max. 600 mm for width min. 600 Height 108 mm Length 108 mm Material Steel Rustproof steel, pickled no Suitable for cable ladder no Suitable for cable tray yes Suitable for mesh cable tray no Surface Hot-dip galvanised Tray fastening Screw-on Version for Support bracket Version for Miscellaneous Width 592 mm - All types
- Downloads
-
Data sheet STA BKRS 600 FT / 6044553 , 0.16MB , pdfEU declaration of conformity STA BKRS 600 FT / 6044553 , 0.13MB , pdfREACH Declaration of conformity STA BKRS 600 FT / 6044553 , 0.12MB , pdfRoHS Declaration of conformity STA BKRS 600 FT / 6044553 , 0.12MB , pdfMounting instructions Mounting instructions, BKRS walkable cable tray systems for Porsche AG , 0.06MB , pdfMounting instructions BKRS Begehbare Kabelrinnensysteme , 5.36MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
