- Product description
-
Product description

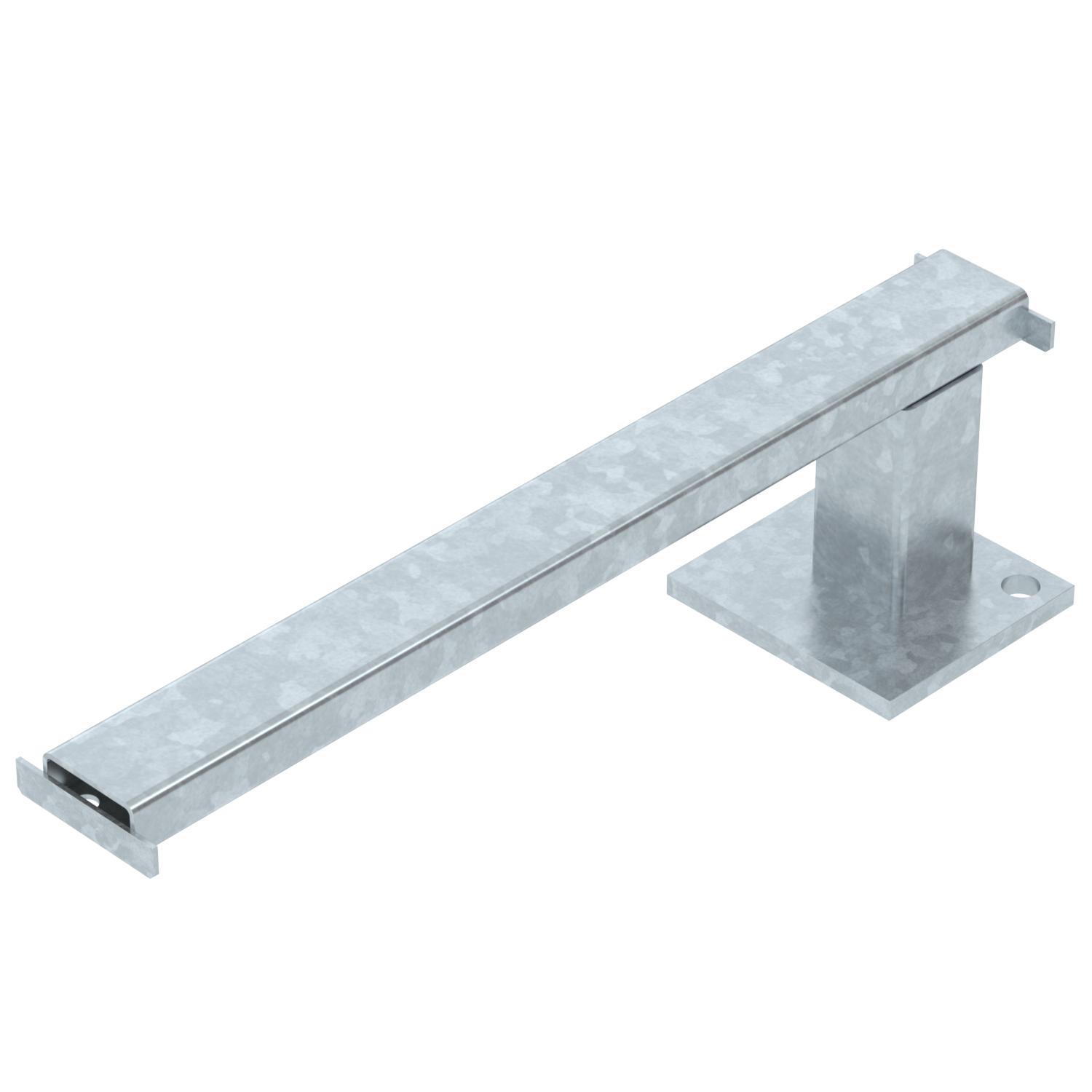

Support bracket, made of closed rectangular steel pipe, as a stand-off of the walkable cable tray system.
- Technical data
-
Technical data

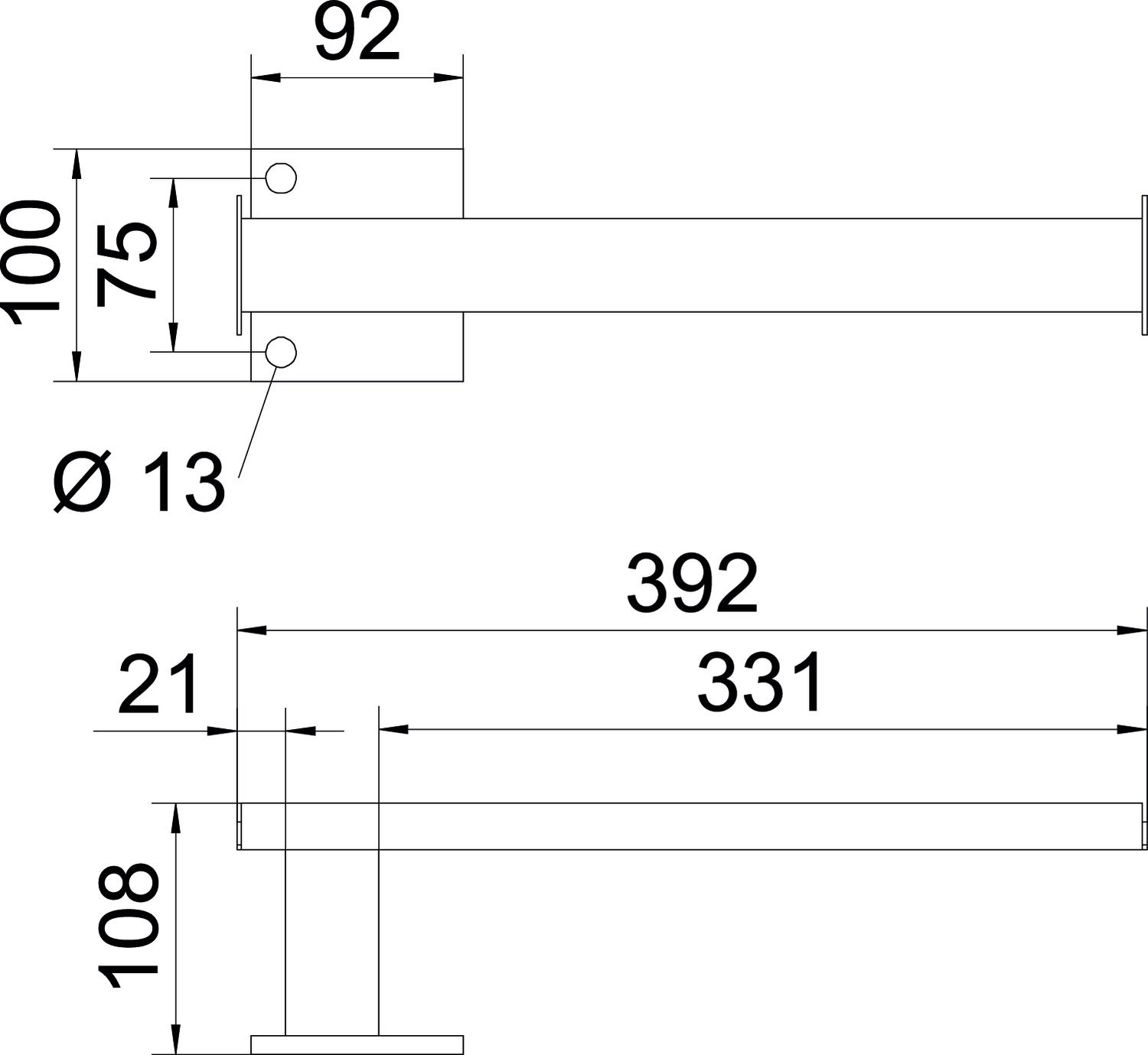

Dimension B=400 Dimension B 392 mm Dimension b1 23 mm Dimension b2 329 mm Dimension D 13 mm for width max. 400 mm for width min. 400 Height 108 mm Length 100 mm Material Steel Rustproof steel, pickled no Suitable for cable ladder no Suitable for cable tray yes Suitable for mesh cable tray no Surface Hot-dip galvanised Tray fastening Screw-on Version for Miscellaneous Version for Support bracket Width 392 mm - All types
- Downloads
-
Data sheet STA BKRS 400 FT / 6044547 , 0.17MB , pdfDeclaration of conformity STA BKRS 400 FT / 6044547 , 0.13MB , pdfREACH Declaration of conformity STA BKRS 400 FT / 6044547 , 0.12MB , pdfRoHS Declaration of conformity STA BKRS 400 FT / 6044547 , 0.12MB , pdfMounting instructions Mounting instructions, BKRS walkable cable tray systems for Porsche AG , 0.06MB , pdfMounting instructions BKRS Begehbare Kabelrinnensysteme , 5.36MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
