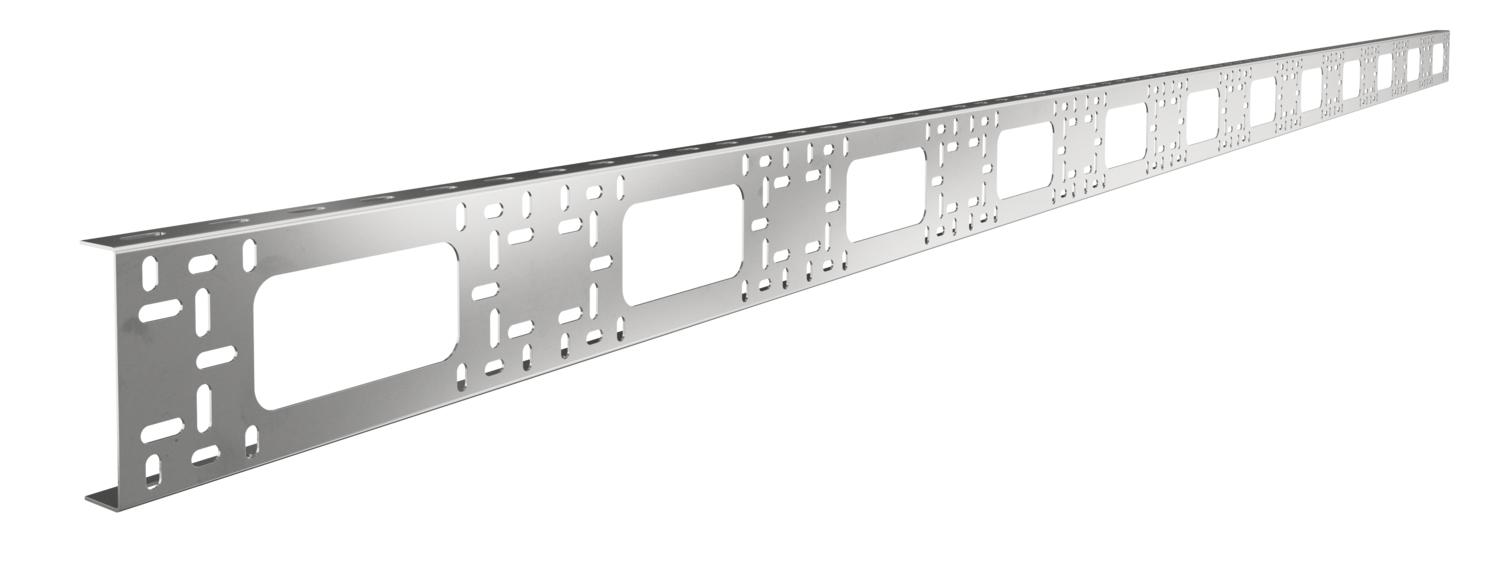

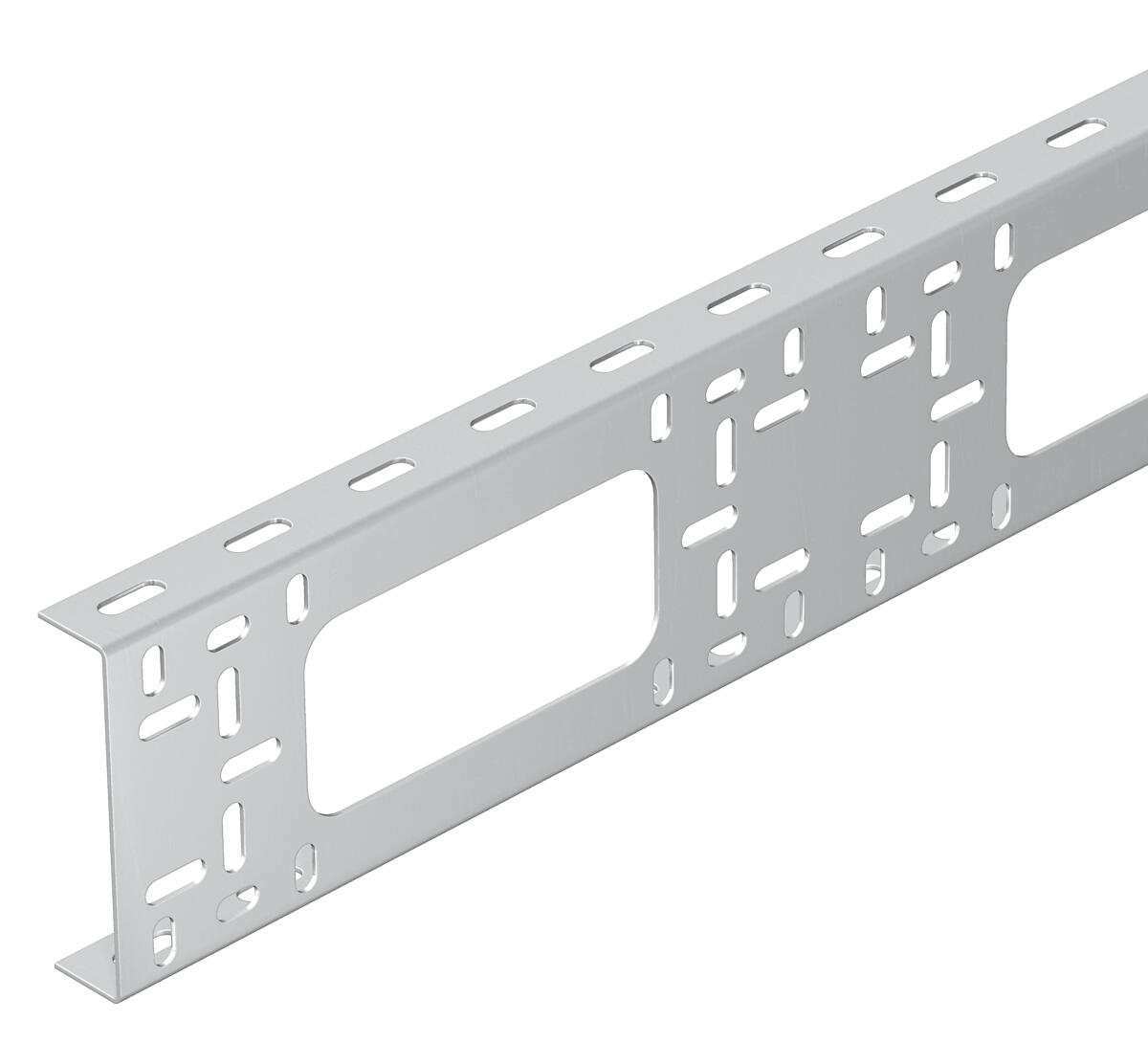

BKK basic profile 104, standard A2

Item no. 6070779 | EAN 4012196068418

Item no. / Types	6070779 / BKK 104 A2

Length	3000 mm

Plate thickness	1.5 mm

Product description

Product description

BKK basic profile for creation of individual cable trays.

Technical data

Technical data

Colour	stainless steel
Dimension	25x104x3000
Length	3000 mm
Material	Stainless steel

Mounting perforation in base	no
Plate thickness	1,5 mm
Side perforation	yes
Surface	Bright, treated

All types

All types

Types	Length	Plate thickness	Item no.	Quantity	SSU
BKK 104 A2	3000 mm	1.5 mm	6070779	m	3 m

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
Joint connector A2	SSV A2	6066054	piece	25 piece
Adjustable connector A2	SV A2	6066933	piece	50 piece

Mounting accessories

Products	Types	Item no.	Quantity	SSU
Truss-head bolt with flange nut A2	FRSB 6x12 A2	6406138	piece	100 piece

Downloads

Data sheet BKK 104 A2 / 6070779 , 0.18MB , pdf

Guide KTS Kabeltragsysteme , 1.61MB , pdf

Catalogue Kabeltragsysteme , 45.23MB , pdf

EU declaration of conformity BKK 104 A2 / 6070779 , 0.13MB , pdf

Mounting instructions Mounting instructions Modular systems , 0.05MB , pdf

Mounting instructions General information on the mounting , 2.61MB , pdf

Product graphic BKK 104 A2 / 6070779, 43.08 kB, jpg

Scale drawing BKK 104 A2 / 6070779, 52.47 kB, jpg

BKK 104 A2 / 6070779
