Bi-metal separating piece for Rd 8−10 and FL 30−40 mm Rd 8-10 x FL30-40
morepic-1 morepic-2 video-1

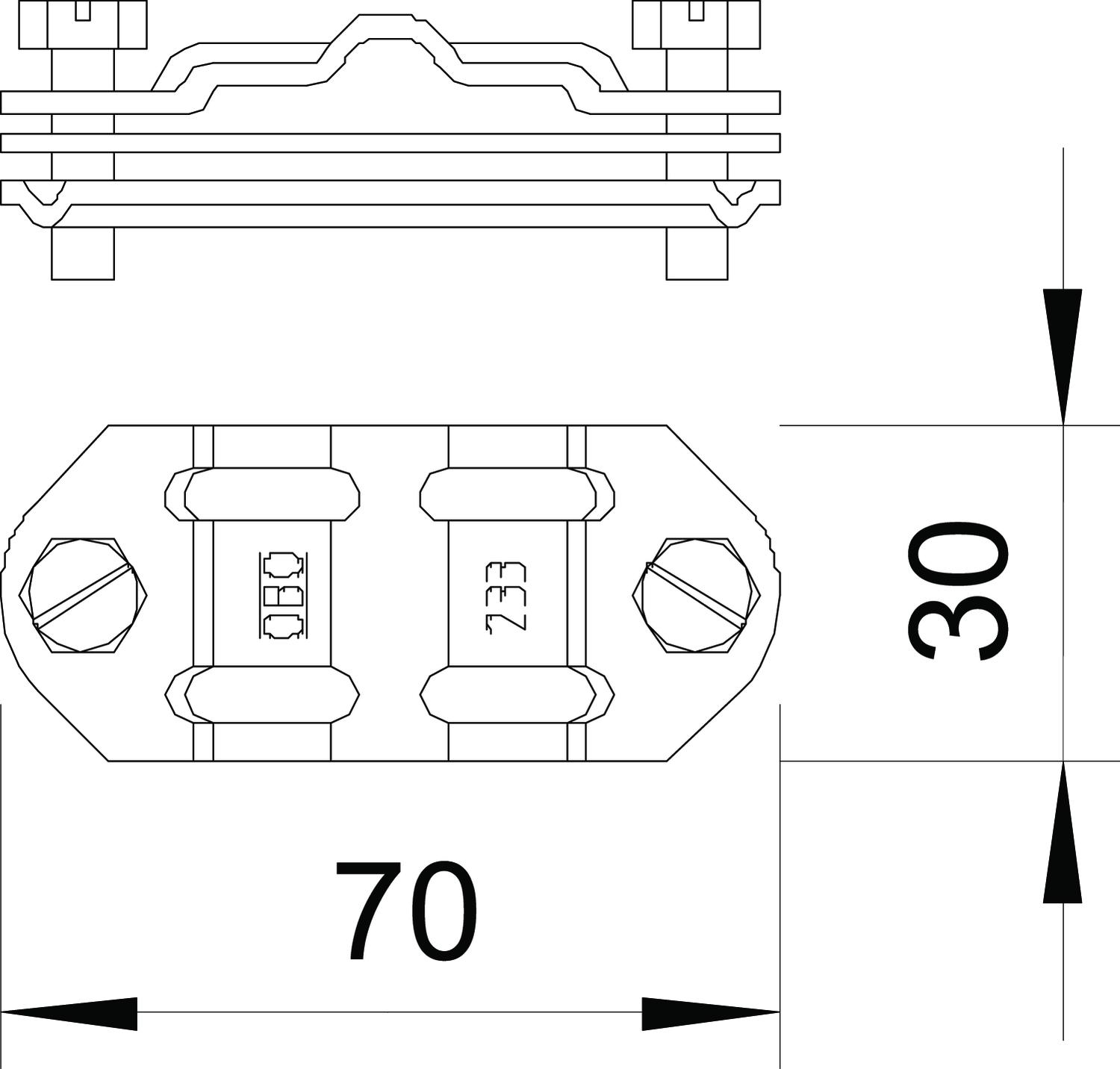

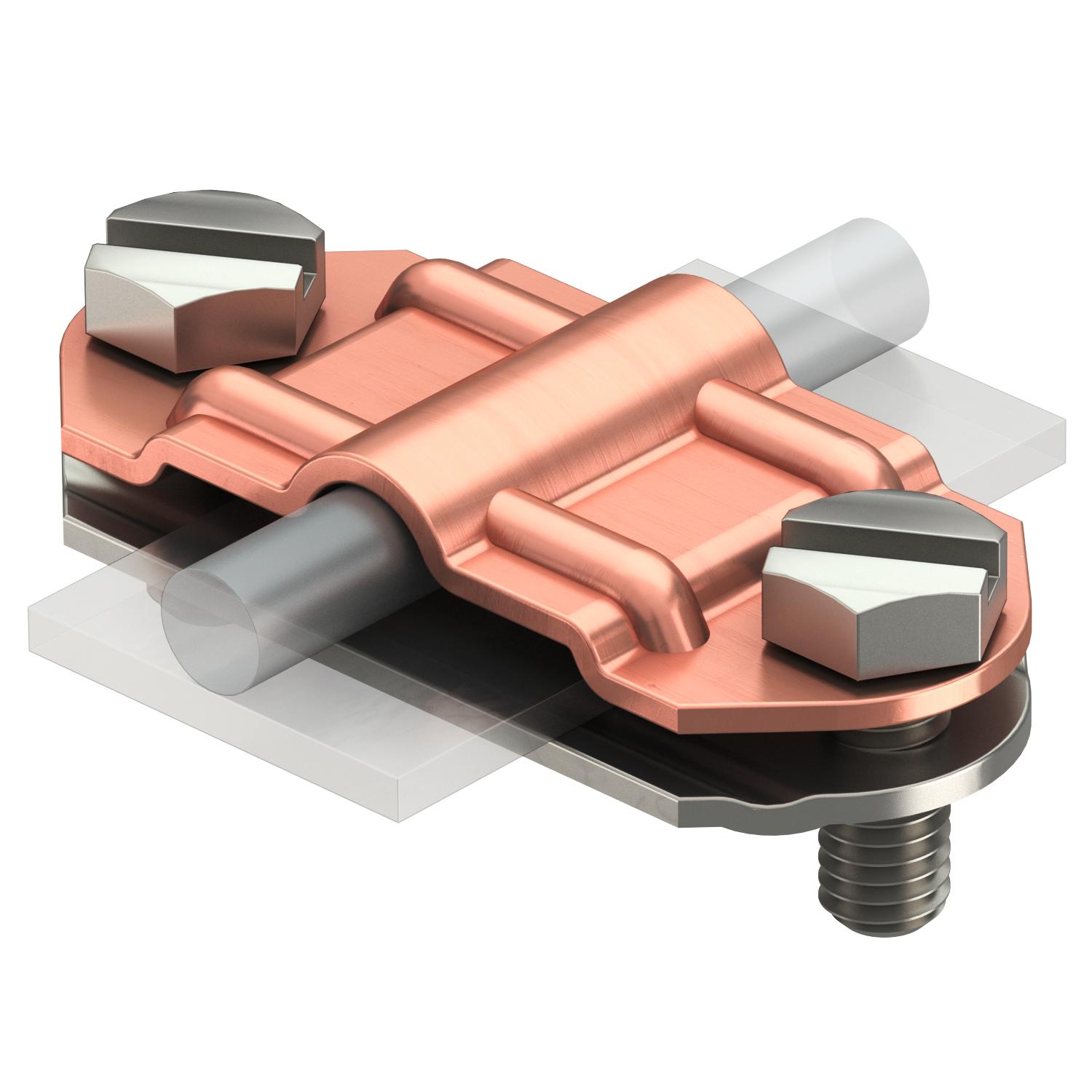

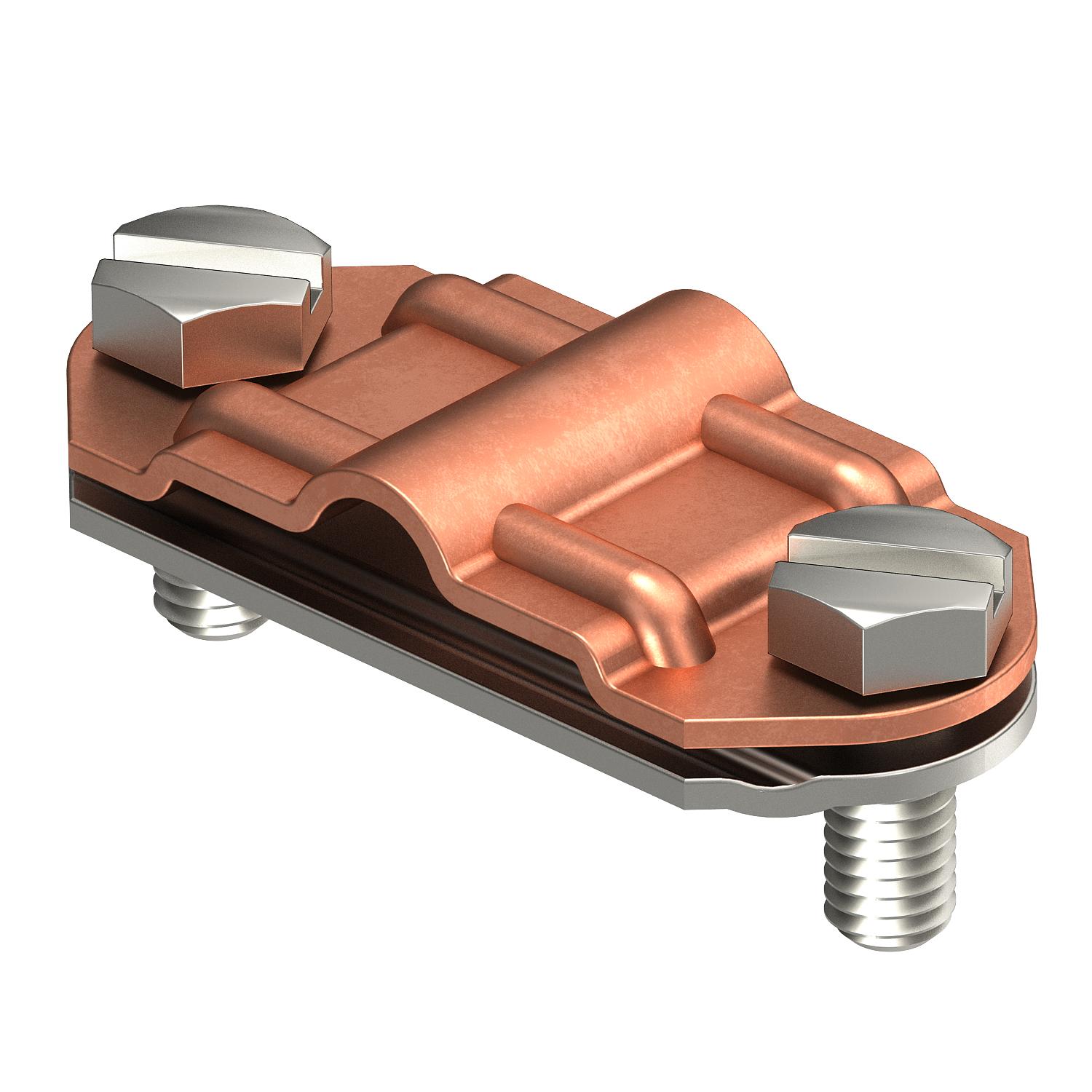

Bi-metal separating piece for Rd 8−10 and FL 30−40 mm

Item no. 5336503 | EAN 4012195424932

5336503 / 233 A ZV
Rd 8-10 x FL30-40 mm
Product description
Product description
• Fit: Rd 8-10 x FL 30-40, FL 30 x FL 30-40
• With 2 hexagonal bolts M8 x 20, stainless steel (VA)
• Intermediate plate, aluminium/copper
• Top section copper, bottom section stainless steel
Technical data

Technical data

Bimetal connector yes
Dimension FL30x8-10mm
Fit Rd 8-10 x FL30-40 mm
Intermediate plate yes
Material Copper
Material lower part VA
Material upper part Cu
Suitable for connection Miscellaneous
All types

All types

Types Fit Item no. Quantity SSU
233 A ZV Rd 8-10 x FL30-40 mm 5336503
10 piece
Downloads

Download

Download
Download

EU declaration of conformity 233 A ZV / 5336503 , 0.06MB , pdf
Download

233 A ZV / 5336503
Download
